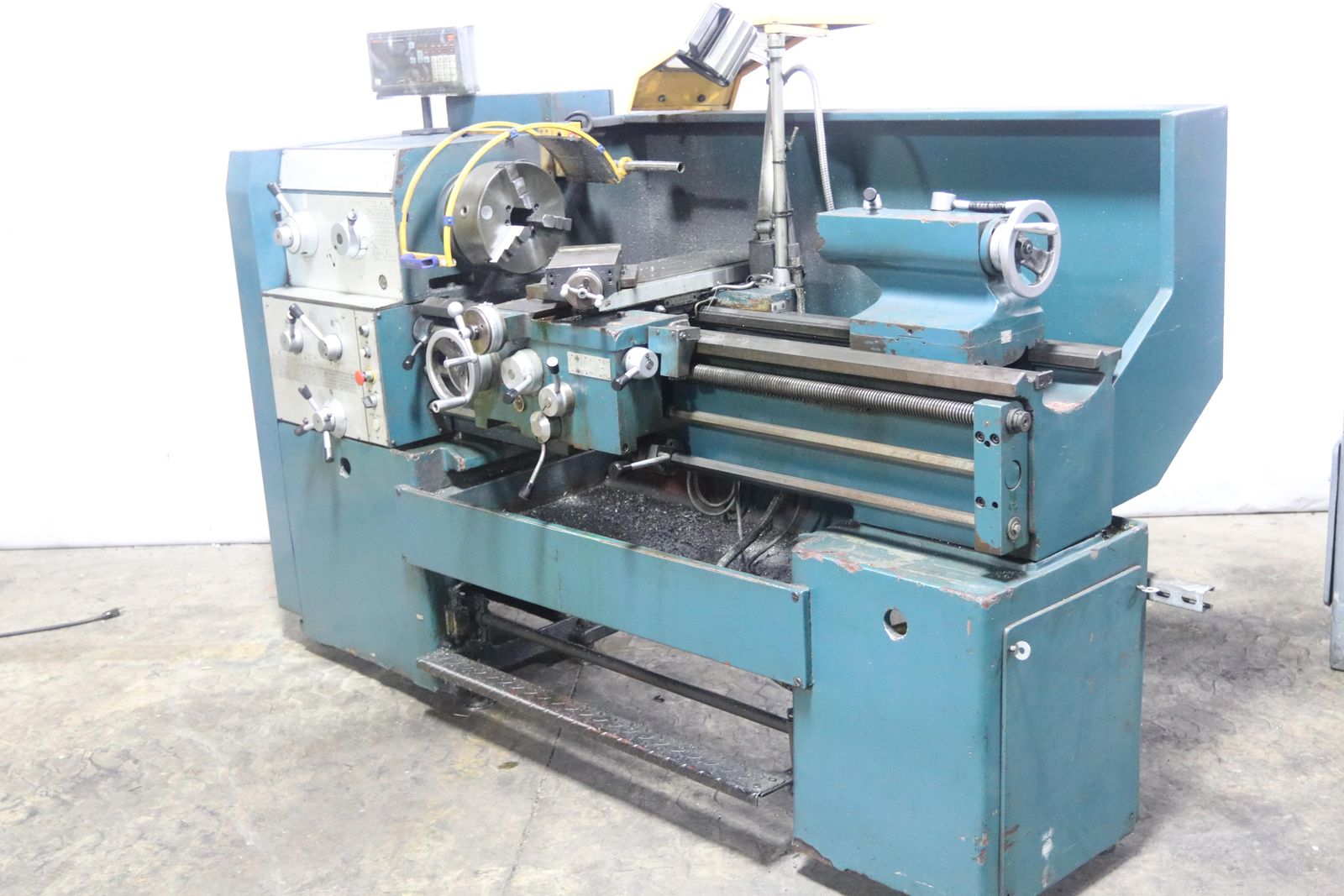

Model ..................... 111-1450
Swing Over Bed ............ 14″
Swing In Removable Gap .... 19-1/4″
Length of Gap ............. 10″
Swing Over Cross Slide .... 8″
Hole Through Spindle ...... 2.5″
Spindle Nose .............. D1-8 Camlock
Chuck ..................... 9.5" 3 Jaw
Center Distance ........... 40″
Spindle Speeds ............ (15) 22 to 1800 RPM
Longitudinal Feed Range ... 0.0027 to .150 IPR
Cross Feed Range .......... 0.0013 to 0.0375 IPR
Inch Threading Range ...... (66) 1 to 56 TPI
Metric Threading Range .... (29) 0.5 to 28mm
Tailstock Spindle Travel .. 5″
Tailstock Spindle Taper ... #5 MT
Motor ..................... 5.4 HP
Coolant System ............ Splash Guard
Foot Brake ................ Yes
Digital Read Out .......... 2 Axis
| Specifications | ||
|---|---|---|
| Dimensions | 96″ L x 56″ W x 63″ H | |
| Weight | 4000 pounds | |
| Chuck Size | 9.5 inches | |
| Swing in Gap | 19.25 inches | |
| Spindle Speed RPM | 1800 | |
| Main Motor | 5.4 | |
| Longitudinal Feeds | .150 | |
| Cross Feeds | .0375 | |
| Threads Per Inch | 65 | |
| Threads Per Millimeter | 28 | |
| Swing | 14 inches | |
| Centers | 40 inches | |
| Spindle Bore | 2.5 inches | |
| Power | 5.4 horsepower | |
| RPM | 1800 | |
| Swing Over Cross Slide | 8 inches | |
Brand
ENCO
Type
Lathes, Engine
Stock No.
10593
 |
419-269-2000 |
Stock #: 10593
Model ..................... 111-1450
Swing Over Bed ............ 14″
Swing In Removable Gap .... 19-1/4″
Length of Gap ............. 10″
Swing Over Cross Slide .... 8″
Hole Through Spindle ...... 2.5″
Spindle Nose .............. D1-8 Camlock
Chuck ..................... 9.5" 3 Jaw
Center Distance ........... 40″
Spindle Speeds ............ (15) 22 to 1800 RPM
Longitudinal Feed Range ... 0.0027 to .150 IPR
Cross Feed Range .......... 0.0013 to 0.0375 IPR
Inch Threading Range ...... (66) 1 to 56 TPI
Metric Threading Range .... (29) 0.5 to 28mm
Tailstock Spindle Travel .. 5″
Tailstock Spindle Taper ... #5 MT
Motor ..................... 5.4 HP
Coolant System ............ Splash Guard
Foot Brake ................ Yes
Digital Read Out .......... 2 Axis
