Machine Information

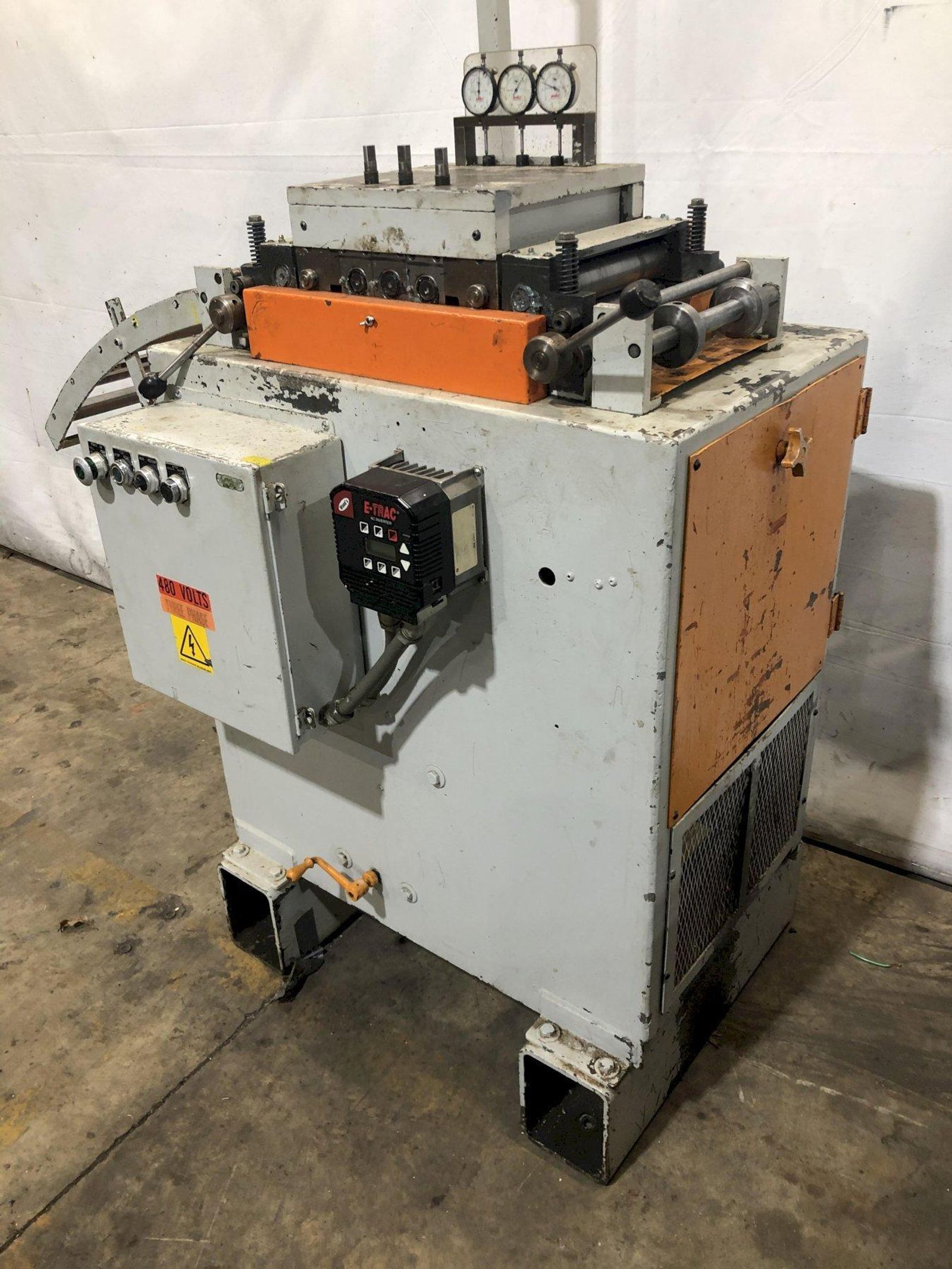

10" X .130" DURANT MODEL VS-MD-10 POWERED COIL STRAIGHTENER: STOCK #14171

Stock #: 14171

Equipped With

MODEL ........................ VS-MD-10
WIDTH OF MATERIAL ............ 10" MAX
THICKNESS CAPACITY ........... .020" TO .130"
NUMBER OF ROLLS .............. 7 (3 OVER 4)

DIAMETER OF ROLLS ............ 2"
ROLL SPACING ................. 2-1/4"
TOP ROLL ADJUSTMENT .......... YES
ROLL POSITION INDICATORS ..... YES
ROLL SPEEDS (VARIABLE) ....... 0 TO 100 FPM
VARIABLE SPEED DRIVES ........ WOOD'S

ENTRY & EXIT PINCH ROLLS ..... POWERED
RUN & FEED JOG MODES ......... YES
FORWARD & REVERSE ............ YES
MOTOR ........................ 1-1/2 HP
