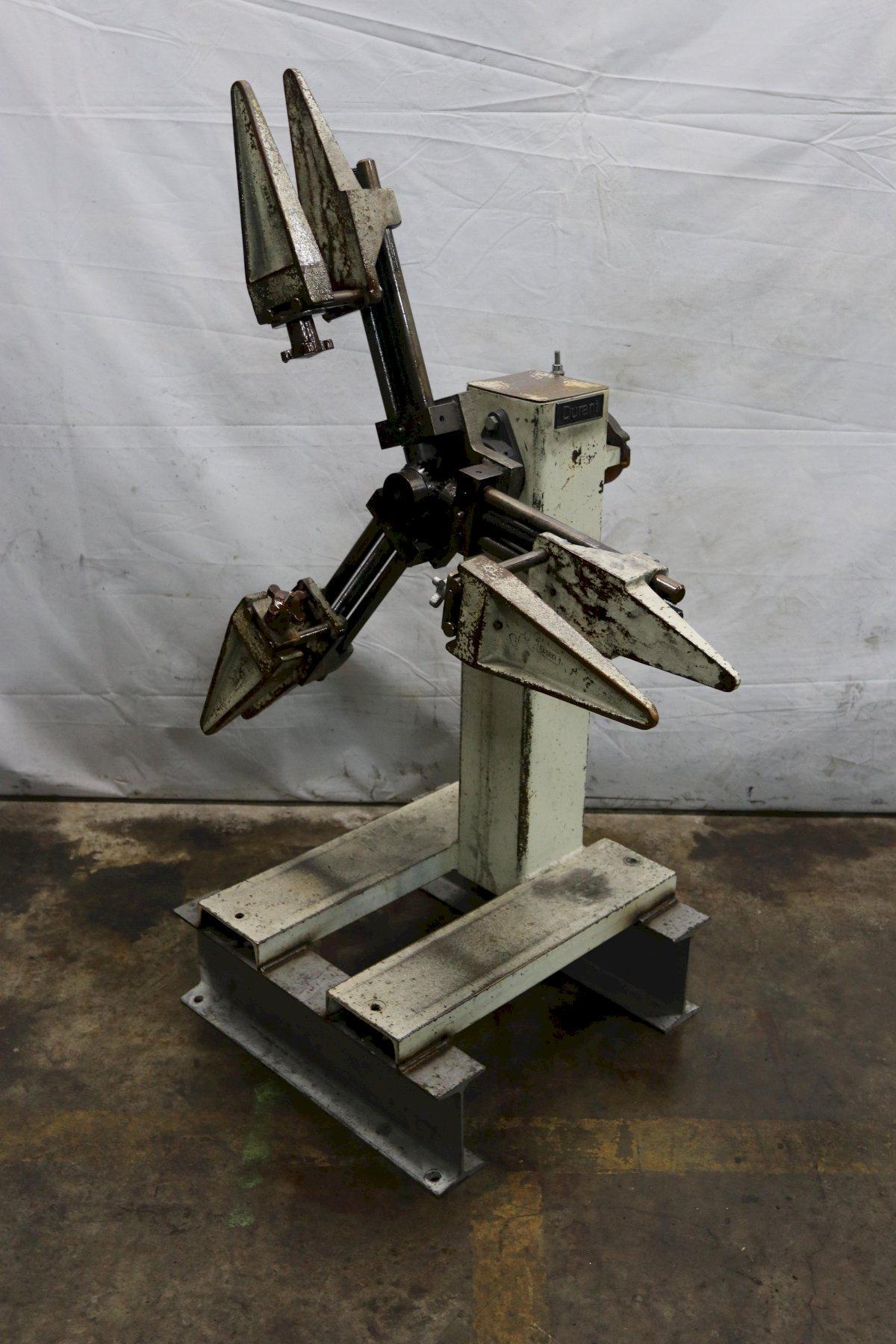

600 LB X 10" DURANT MODEL #DSC-1 NON POWERED COIL REEL: STOCK 12294

Stock #: 12294

Equipped With

SERIAL C408
MODEL DSC-1
Maximum Coil Weight: 600 Lbs
Maximum Coil Width: 4" (up to 10” with new bars)
Maximum Coil Outside Diameter: 44”
Coil Core Diameter: Adjustable 6” TO 24”
Brake: Adjustable Tension Type
Keeper Arms: (6) Quick Adjust
Heavy Duty Steel Frame Construction
Rugged Main Hub and Quick Adjust Keeper Arms
1-1/2” Diameter Main Spindle Shaft
(2) Heavy Duty Main Spindle Bearings
Heavy Duty Adjustable Tension Brake



Buy Machines

600 LB X 10" DURANT MODEL #DSC-1 NON POWERED COIL REEL: STOCK 12294

Stock # 12294

Share Machine
Print Details

Machine Specifications

SERIAL C408
MODEL DSC-1

Maximum Coil Weight: 600 Lbs
Maximum Coil Width: 4" (up to 10” with new bars)
Maximum Coil Outside Diameter: 44”
Coil Core Diameter: Adjustable 6” TO 24”
Brake: Adjustable Tension Type
Keeper Arms: (6) Quick Adjust
Heavy Duty Steel Frame Construction
Rugged Main Hub and Quick Adjust Keeper Arms
1-1/2” Diameter Main Spindle Shaft
(2) Heavy Duty Main Spindle Bearings
Heavy Duty Adjustable Tension Brake



Specifications
Max Weight of Coil 600 ounces
Max Width of Coil 10 inches
