Machine Information

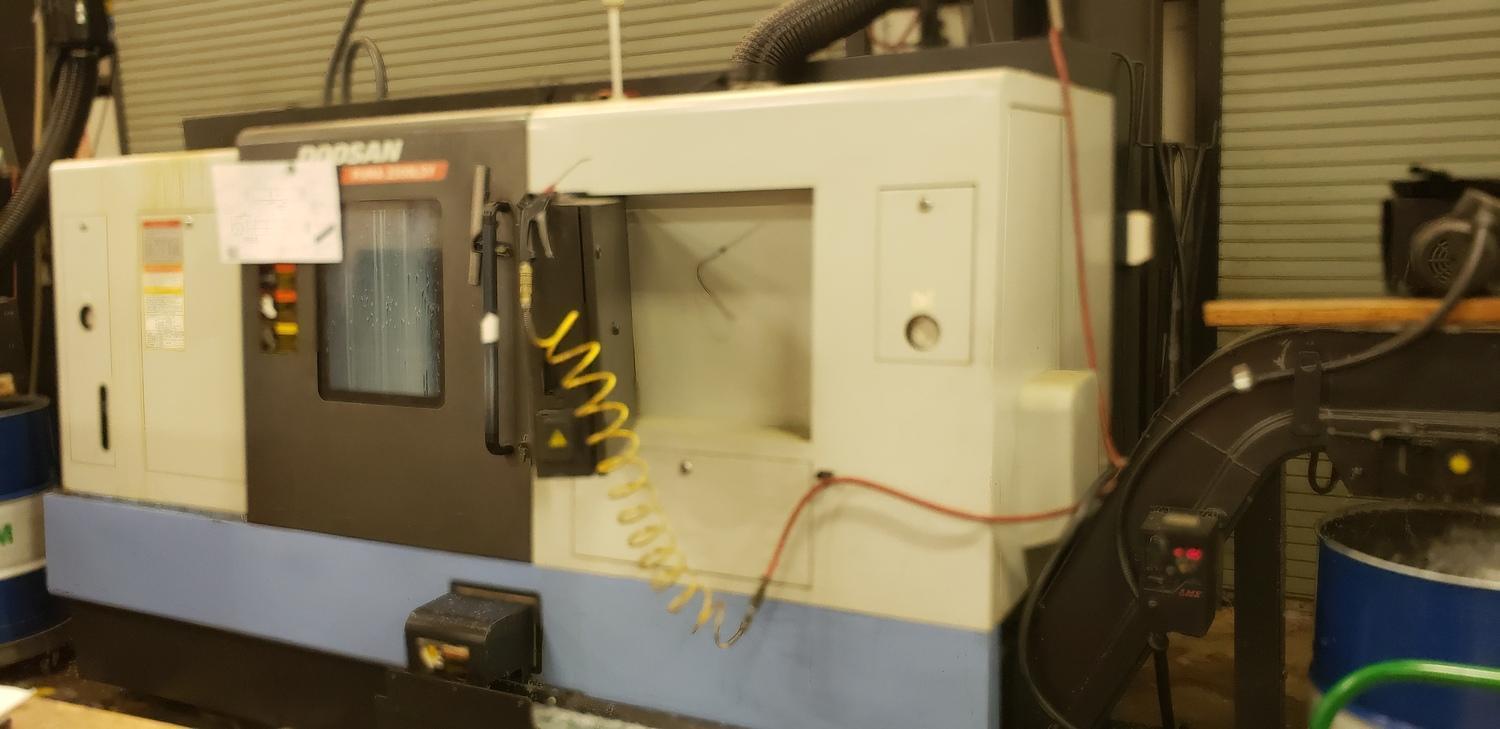

DOOSAN MODEL #PUMA 2500LSY CNC TURNING CENTER: STOCK 14514

Stock #: 14514

Equipped With

SERIAL .............................. P25LSY1201
MODEL ............................... PUMA 2500LYS
YEAR ................................ 2008

CAPACITIES:
MAX TURNING DIAMETER ................ 12.99"
MAX TURNING LENGTH .................. 29.53"
MAX BAR CAPACITY .................... 2.99"
SWING OVR BED ....................... 23.62"
SWING OVER THE SADDLE ............... 29.65"

TRAVELS:
X AXIS TRAVEL ....................... 9.84"
Z AXIS TRAVEL ....................... 32.68"
Y AXIS TRAVEL ....................... 4"
B AXIS TRAVEL ....................... 32.68" (SUB SPINDLE)
C AXIS .............................. 360° (0.001°) BOTH SPINDLE

FEEDRATE:
RAPID TRAVERSE X AXIS ............... 787 IPM
RAPID TRAVERSE Z AXIS ............... 945 IPM
RAPID TRAVERSE Y AXIS ............... 295 IPM
RAPID TRAVERSE B AXIS ............... 787 IPM

SPINDLE:
MAIN SPINDLE BORE ................... 3.54"
SUB SPINDLE BORE .................... 1.77"
MAIN SPINDLE NOSE ................... A2-8
SUB SPINDLE NOSE .................... A2-6
MAIN SPINDLE SPEED .................. 35-3500 RPM
SUB SPINDLE SPEED ................... 60-6,000 RPM
MAIN SPINDLE POWER .................. 22 KW
SUB SPINDLE POWER ................... 7.5 KW
LIVE TOOL SPINDLE MOTOR ............. 3.7 KW

TURRET:
CAPACITY ............................ 12 LIVE STATIONS
TURRET INDEX TIME ................... 0.1 SECOND
LIVE TOOL SPEED ..................... 60-6,000 RPM

GENERAL:
POWER ............................... 53KVA/220V/3PH
OVERALL DIMENSIONS .................. 130" X 67" X 72"HIGH
OVERALL DIMENSIONS .................. 146" X 67" X 72"HIGH (WITH CHIP CONVEYOR)
WEIGHT .............................. 12,500 LBS

EQUIPPED WITH:
FANUC 18ITB CONTROL
CHIP CONVEYOR
PARTS CATCHER
PARTS CONVEYOR
(1) X-AXIS LIVE TOOL
(1) Z-AXIS LIVE TOOL
STANDARD OD & ID TOOL HOLDERS
FILTER MIST












Buy Machines

DOOSAN MODEL #PUMA 2500LSY CNC TURNING CENTER: STOCK 14514

Stock # 14514

Share Machine
Print Details

Machine Specifications

SERIAL .............................. P25LSY1201
MODEL ............................... PUMA 2500LYS
YEAR ................................ 2008

CAPACITIES:
MAX TURNING DIAMETER ................ 12.99"
MAX TURNING LENGTH .................. 29.53"
MAX BAR CAPACITY .................... 2.99"
SWING OVR BED ....................... 23.62"
SWING OVER THE SADDLE ............... 29.65"

TRAVELS:
X AXIS TRAVEL ....................... 9.84"
Z AXIS TRAVEL ....................... 32.68"
Y AXIS TRAVEL ....................... 4"
B AXIS TRAVEL ....................... 32.68" (SUB SPINDLE)
C AXIS .............................. 360° (0.001°) BOTH SPINDLE

FEEDRATE:
RAPID TRAVERSE X AXIS ............... 787 IPM
RAPID TRAVERSE Z AXIS ............... 945 IPM
RAPID TRAVERSE Y AXIS ............... 295 IPM
RAPID TRAVERSE B AXIS ............... 787 IPM

SPINDLE:
MAIN SPINDLE BORE ................... 3.54"
SUB SPINDLE BORE .................... 1.77"
MAIN SPINDLE NOSE ................... A2-8
SUB SPINDLE NOSE .................... A2-6
MAIN SPINDLE SPEED .................. 35-3500 RPM
SUB SPINDLE SPEED ................... 60-6,000 RPM
MAIN SPINDLE POWER .................. 22 KW
SUB SPINDLE POWER ................... 7.5 KW
LIVE TOOL SPINDLE MOTOR ............. 3.7 KW

TURRET:
CAPACITY ............................ 12 LIVE STATIONS
TURRET INDEX TIME ................... 0.1 SECOND
LIVE TOOL SPEED ..................... 60-6,000 RPM

GENERAL:
POWER ............................... 53KVA/220V/3PH
OVERALL DIMENSIONS .................. 130" X 67" X 72"HIGH
OVERALL DIMENSIONS .................. 146" X 67" X 72"HIGH (WITH CHIP CONVEYOR)
WEIGHT .............................. 12,500 LBS

EQUIPPED WITH:
FANUC 18ITB CONTROL
CHIP CONVEYOR
PARTS CATCHER
PARTS CONVEYOR
(1) X-AXIS LIVE TOOL
(1) Z-AXIS LIVE TOOL
STANDARD OD & ID TOOL HOLDERS
FILTER MIST












Specifications
Weight 12500 pounds
