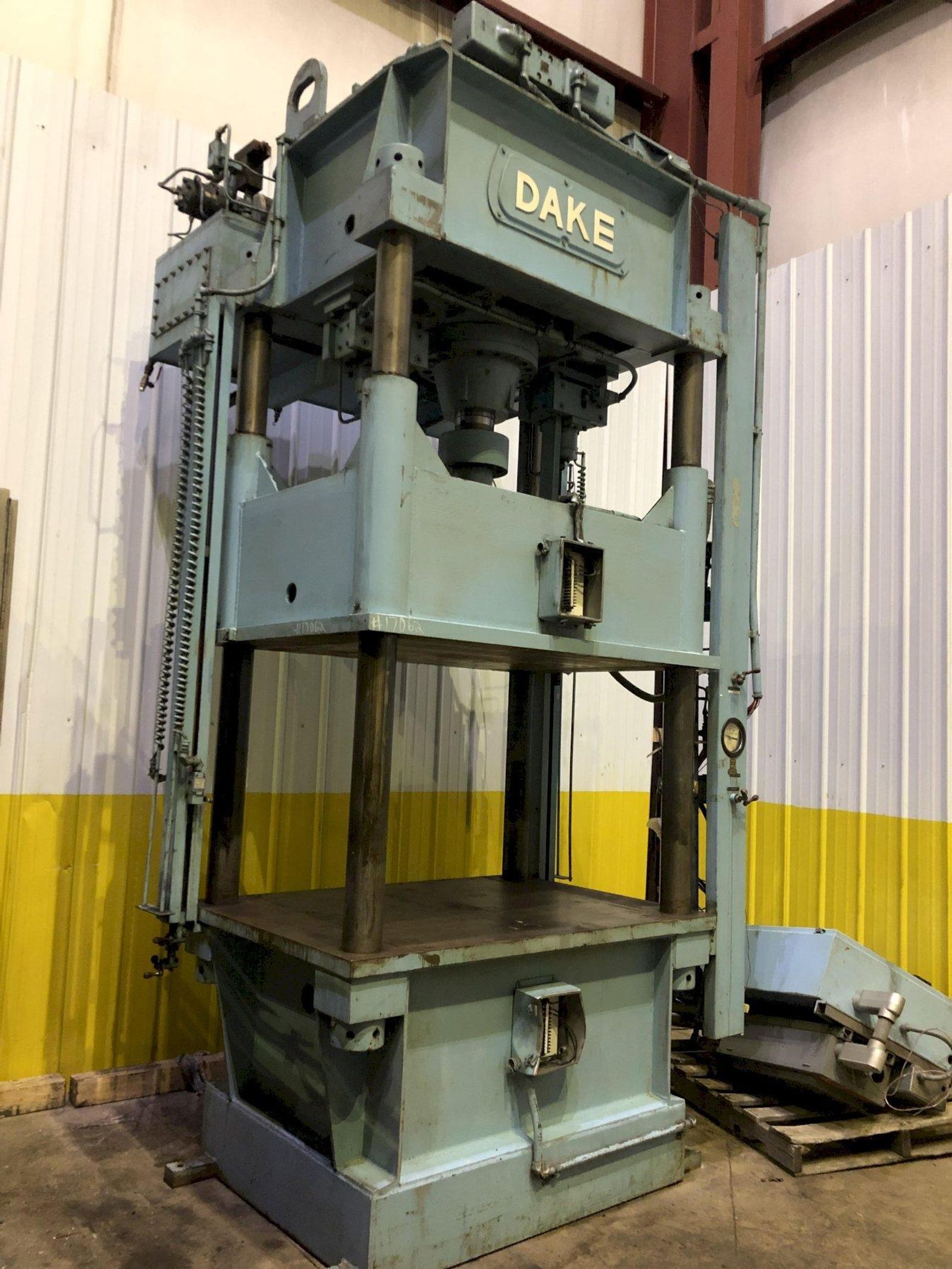

Stock #: 17062
SERIAL ..................... 177646MODEL ...................... 27-777YEAR NEW ................... 1980
CAPACITY ................... 150 TONAREA OF BED ................ 63" L-R X 43" F-BDISTANCE BETWEEN THE POST .. 50" L-R X 30" F-BSTROKE OF RAM .............. 24"OPEN HEIGHT ................ 36"CLOSED HEIGHT .............. 12"POST DIAMETER .............. 4.5"FLOOR TO BED HEIGHT ........ 36"
ADVANCE SPEED .............. 415 IPM
PRESS SPEED ................ 1 TO 14 IPM
RETURN SPEED ............... 185 IPM
OIL CAPACITY ............... 90 GALLONS
CONTROL PANEL .............. YESMOTOR ...................... 15 HP
Stock # 17062
SERIAL ..................... 177646
MODEL ...................... 27-777
YEAR NEW ................... 1980
CAPACITY ................... 150 TONAREA OF BED ................ 63" L-R X 43" F-B
DISTANCE BETWEEN THE POST .. 50" L-R X 30" F-B
STROKE OF RAM .............. 24"
OPEN HEIGHT ................ 36"
CLOSED HEIGHT .............. 12"
POST DIAMETER .............. 4.5"
FLOOR TO BED HEIGHT ........ 36"
ADVANCE SPEED .............. 415 IPM
PRESS SPEED ................ 1 TO 14 IPM
RETURN SPEED ............... 185 IPM
OIL CAPACITY ............... 90 GALLONS
CONTROL PANEL .............. YESMOTOR ...................... 15 HP
| Specifications |
|---|
