Overview

SERIAL ....................... 166322
MODEL ........................ 19-269
CAPACITY ..................... 150 TONS
DIAMETER OF CYLINDER ......... 6"
STROKE ....................... 16"
BED SIZE ..................... 54" X 120"
HEIGHT OF BED ................ 40"
HOLE IN BED (PUSH THROUGH) ... 15"
DISTANCE BETWEEN UPRIGHTS .... 60"
UPRIGHTS TRAVEL ON BED ....... 72"
DISTANCE RAM TO TABLE ........ 0" TO 48" MAX
ADJUSTABLE RAIL HEIGHT ....... YES, 5" INCREMENTS
RAIL ADJUSTMENT .............. MANUAL CRANK
PRESSURE GAUGE ............... YES
HAND LEVER CONTROL ........... YES
ON / OFF PUSH BUTTON CONTROL . YES
MAIN MOTOR ................... 10 HORSEPOWER

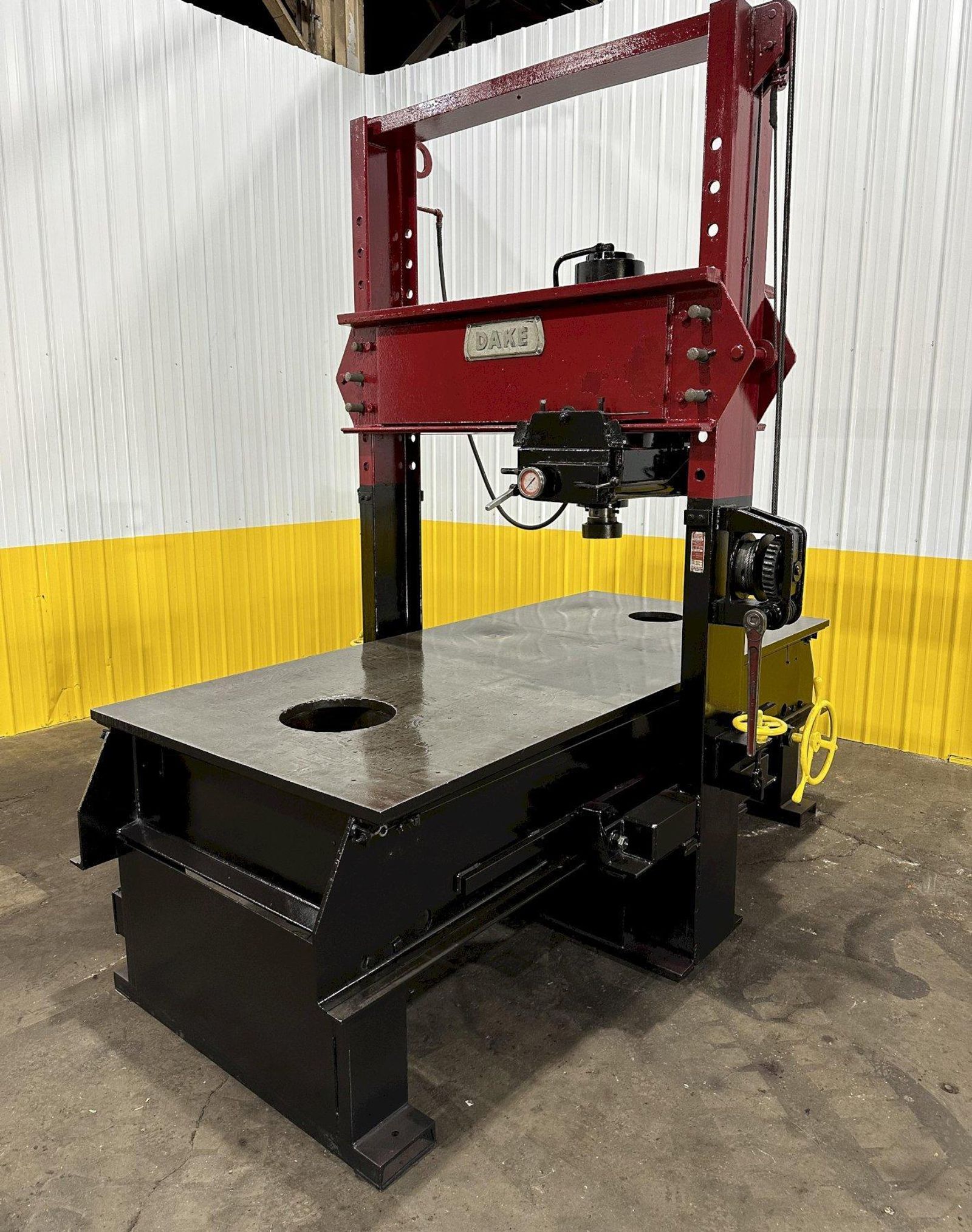

150 TON DAKE MODEL #19-359 TRAVELING COLUMN H-FRAME HYDRAULIC STRAIGHTENING PRESS: STOCK #18993

Brand
DAKE

Type
Presses, H-Frame

Stock No.
18993

Make an Offer
Request a Quote
Print Details

Contact Us

Related Listings

New Listing

BLACKHAWK H-FRAME PRESS: STOCK #20773

Stock # 20773

Make an Offer
View Details
Request Quote

(3) HEAD H-FRAME HYDRAULIC PRESS: STOCK #17208

Stock # 17208

Make an Offer
View Details
Request Quote
New Listing

150 TON DAKE HORIZONTAL INCLINED HYDRAULIC WHEEL PRESS: STOCK #20382

Stock # 20382

Make an Offer
View Details
Request Quote

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

150 TON DAKE MODEL #19-359 TRAVELING COLUMN H-FRAME HYDRAULIC STRAIGHTENING PRESS: STOCK #18993

Stock #: 18993

Equipped With

SERIAL ....................... 166322


MODEL ........................ 19-269


CAPACITY ..................... 150 TONS


DIAMETER OF CYLINDER ......... 6"


STROKE ....................... 16"


BED SIZE ..................... 54" X 120"


HEIGHT OF BED ................ 40"


HOLE IN BED (PUSH THROUGH) ... 15"


DISTANCE BETWEEN UPRIGHTS .... 60"


UPRIGHTS TRAVEL ON BED ....... 72"


DISTANCE RAM TO TABLE ........ 0" TO 48" MAX


ADJUSTABLE RAIL HEIGHT ....... YES, 5" INCREMENTS


RAIL ADJUSTMENT .............. MANUAL CRANK


PRESSURE GAUGE ............... YES


HAND LEVER CONTROL ........... YES


ON / OFF PUSH BUTTON CONTROL . YES


MAIN MOTOR ................... 10 HORSEPOWER
