Machine Information

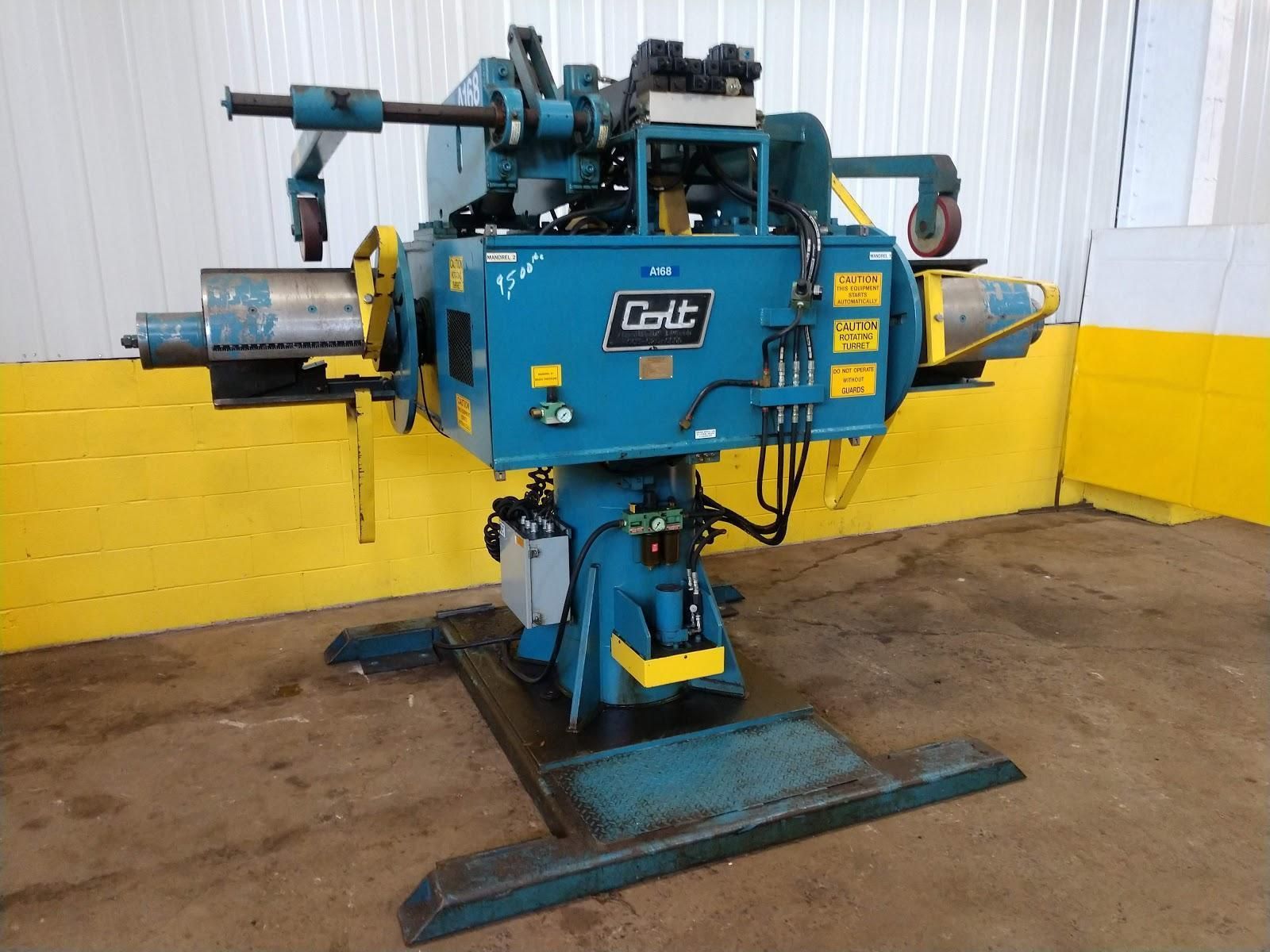

10,000 LB X 18" COLT DOUBLE END MOTORIZED UNCOILER: STOCK #12209

Stock #: 12209

Equipped With

SERIAL ..................... 1201763
MODEL ...................... CHRD-1000-18 DUPLEX
YEAR NEW ...................
CAPACITY ................... 10,000 LBS PER MANDREL
MAX COIL WIDTH ............. 18"
LENGTH OF MANDREL .......... 22"
MANDREL EXPANSION RANGE .... 18"-22"
HYDRAULIC EXPANSION ........ YES
MAX O.D. ................... 60"
DISTANCE FLOOR TO CENTER ... 55"
COIL KEEPER ARMS ........... YES
HYDRAULIC HOLD DOWN ARM .... YES
ROTATION STOP PIN .......... HYDRAULICALLY ACTUATED
HOLD DOWN HYDRAULIC UNIT ... 3 HP
HYDRAULIC DRIVEN ........... YES
