Machine Information

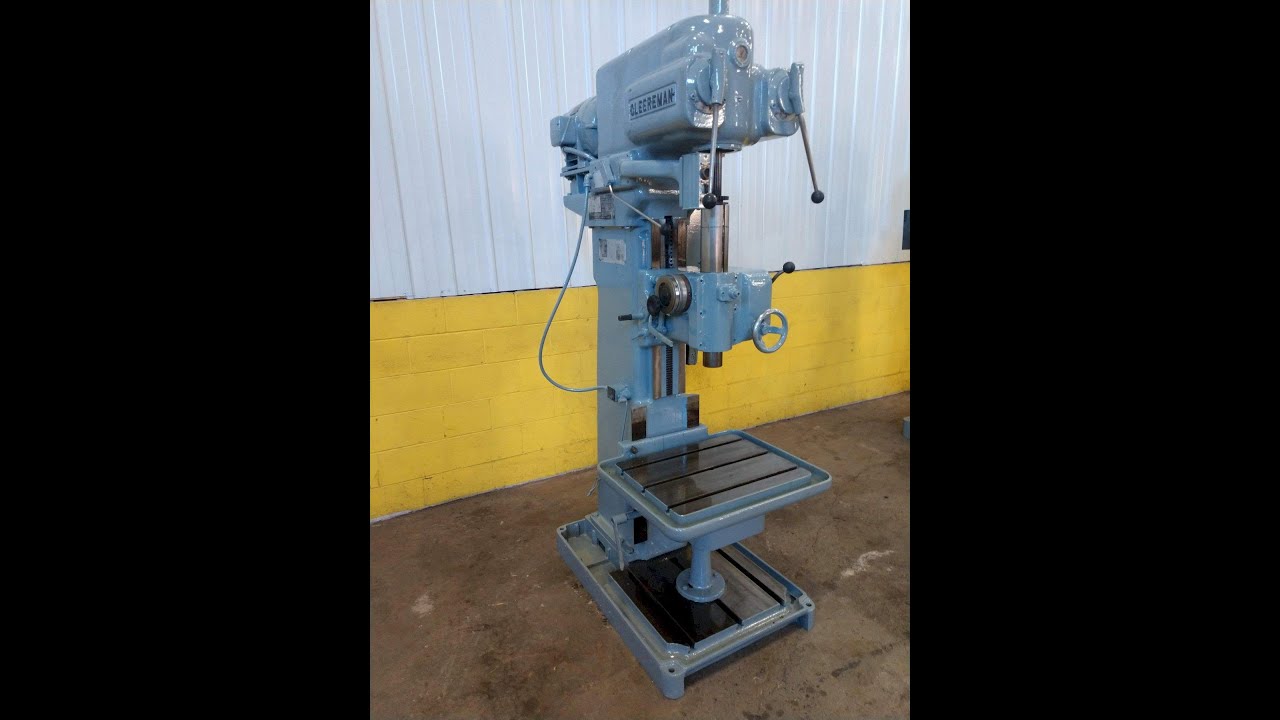

25" CLEERMAN MODEL #25C POWER FEED SINGLE SPINDLE BOX COLUMN DRILL: STOCK #13169

Stock #: 13169

Equipped With

SERIAL .................................... 25C 1523
MODEL ..................................... BOX COLUMN
SPINDLE CENTER TO LOWER COLUMN ............ 12-1/2"
SPINDLE CENTER TO UPPER COLUMN ............ 11-1/2"
AREA OF WORK TABLE ........................ 19" X 24"
VERTICAL TABLE TRAVEL ..................... 12"
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE .... 27"
VERTICAL ADJUSTMENT OF SLIDING HEAD ....... 18"
POWER FEED SPINDLE TRAVEL ................. 12"
SPINDLE SPEEDS ............................ (12) 75-1500 RPM
SPINDLE FEEDS ............................. (9) .005-.045 IPR
SPINDLE TAPER ............................. #4 MT
POWER DOWNFEED ............................ YES
MOTOR ..................................... 3 HORSEPOWER
