Machine Information

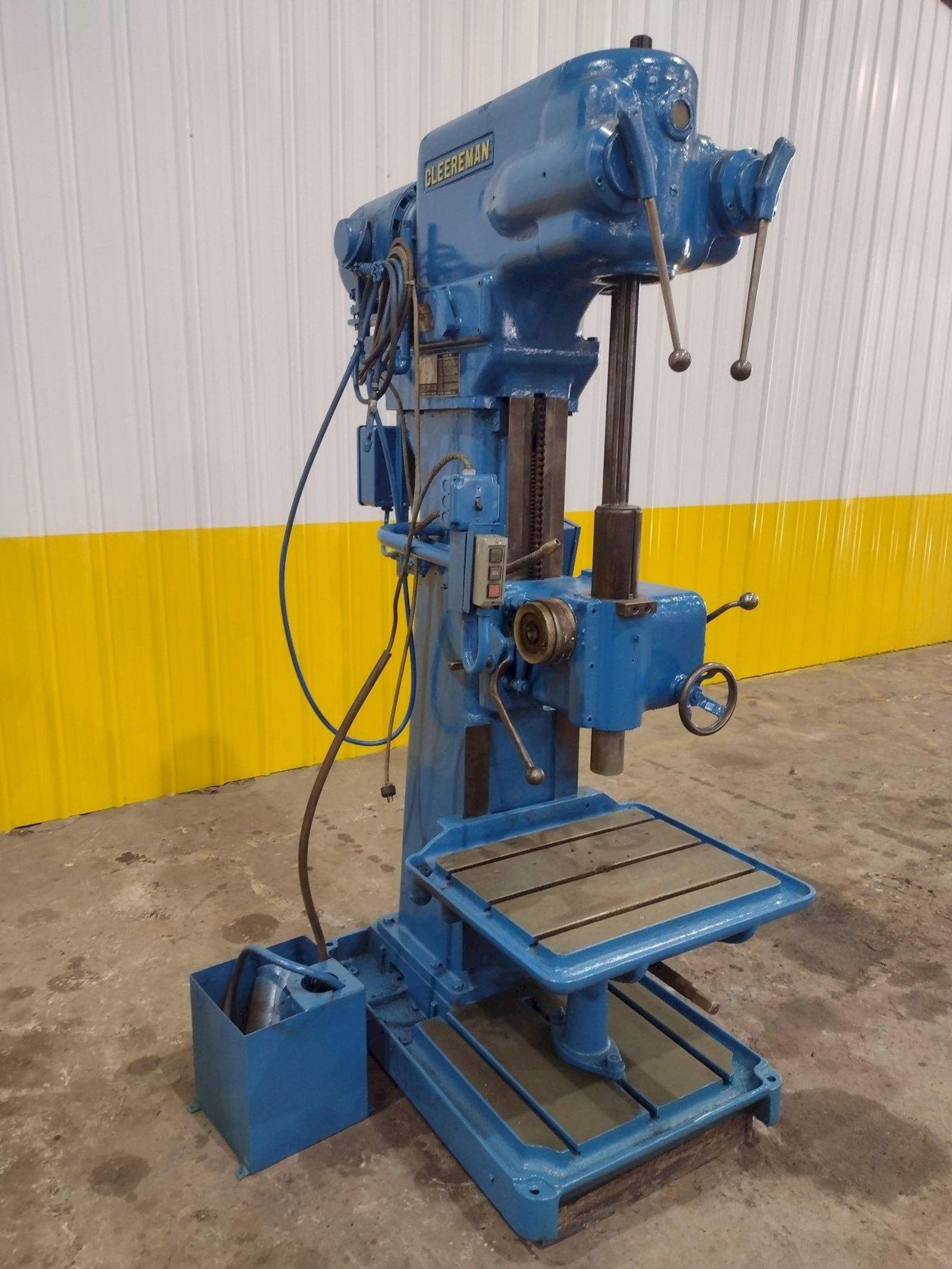

24" CLEEREMAN SINGLE SPINDLE DRILL: STOCK #18371

Stock #: 18371

Equipped With

MODEL ..................................... BOX COLUMN
SPINDLE CENTER TO LOWER COLUMN ............ 12-1/2"
SPINDLE CENTER TO UPPER COLUMN ............ 11-1/2"
AREA OF WORK TABLE ........................ 19" X 24"
VERTICAL TABLE TRAVEL ..................... 12"
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE .... 27"
VERTICAL ADJUSTMENT OF SLIDING HEAD ....... 18"
POWER FEED SPINDLE TRAVEL ................. 12"
SPINDLE SPEEDS ............................ (12) 75 TO 1500 RPM
SPINDLE FEEDS ............................. (9) .005 TO .045 IPR
SPINDLE TAPER ............................. #4 MT
POWER DOWNFEED ............................ YES
MOTOR ..................................... 5 HORSEPOWER
