Machine Information

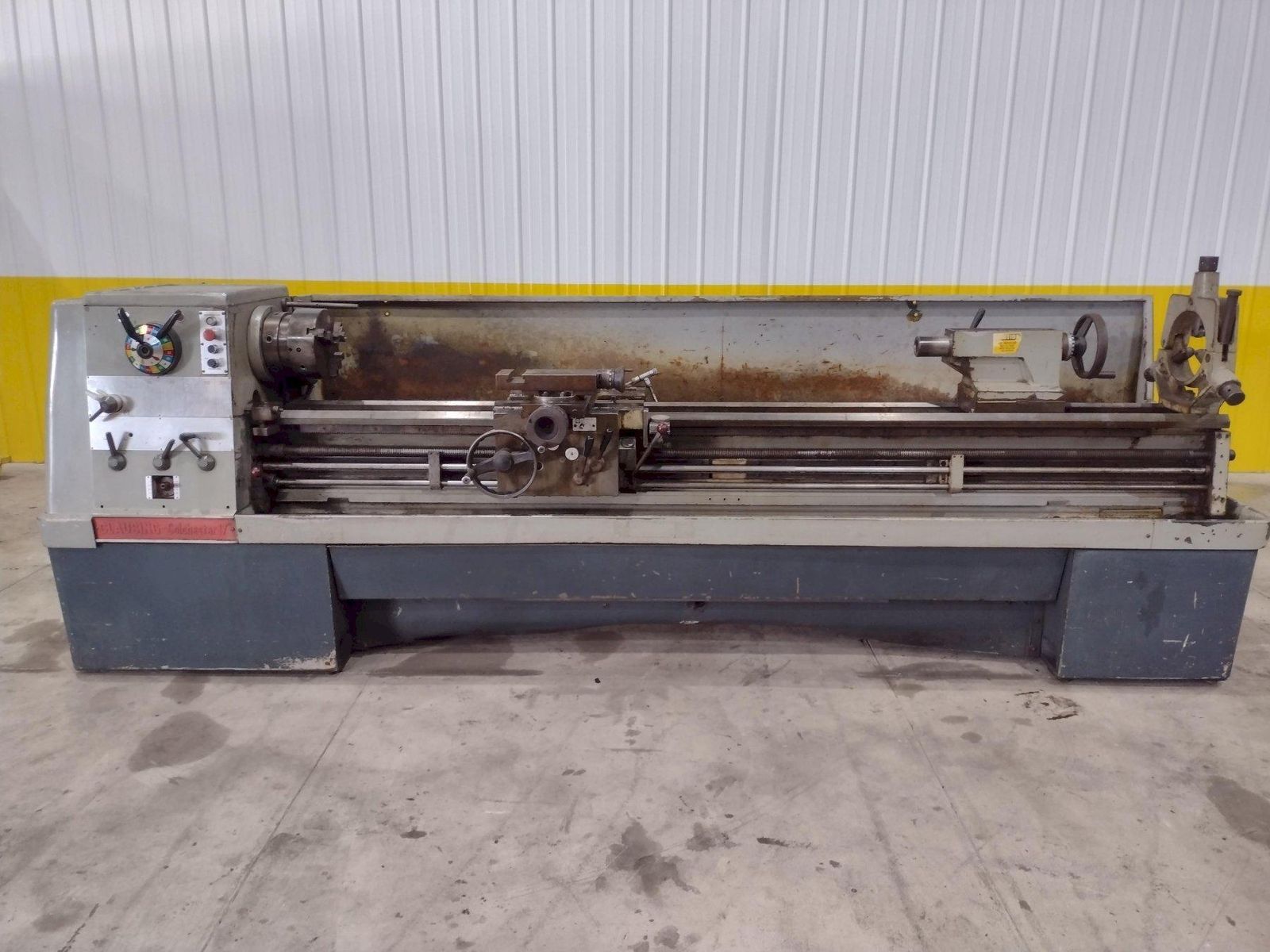

17" x 104" CLAUSING COLCHESTER MODEL #17 ENGINE LATHE, 3.25" HOLE: STOCK #20853

Stock #: 20853

Equipped With

17" x 104" CLAUSING COLCHESTER MODEL #17 ENGINE LATHE, 3.25" HOLE: STOCK #20853
SERIAL ............................. 7/0222/16142DD
MODEL .............................. 17
SWING OVER WAYS .................... 18"
SWING OVER CROSS SLIDE ............. 10-1/2"
DISTANCE BETWEEN CENTERS ........... 104"
SPINDLE SPEEDS ..................... (16) 20 TO 1600 RPM
DIAMETER OF SPINDLE HOLE ........... 3-1/4"
FEEDS LONGITUDINAL ................. (45) .002 TO .032 IPR
THREADS (ENGLISH) .................. (38) 2 TO 72 TPI
THREADS (METRIC) ................... (40) .4 TO 14 MMPI
CROSS FEEDS ........................ .001 TO .016
CHUCK .............................. 10" 3-Jaw Chuck
STEADY REST ........................ 9.5"
HARDEN WAYS ........................ YES
FORWARD & REVERSING ................ YES
COOLANT ............................ YES
TRAVEL DIAL ........................ YES
MOTOR .............................. 10 HORSEPOWER
