Machine Information

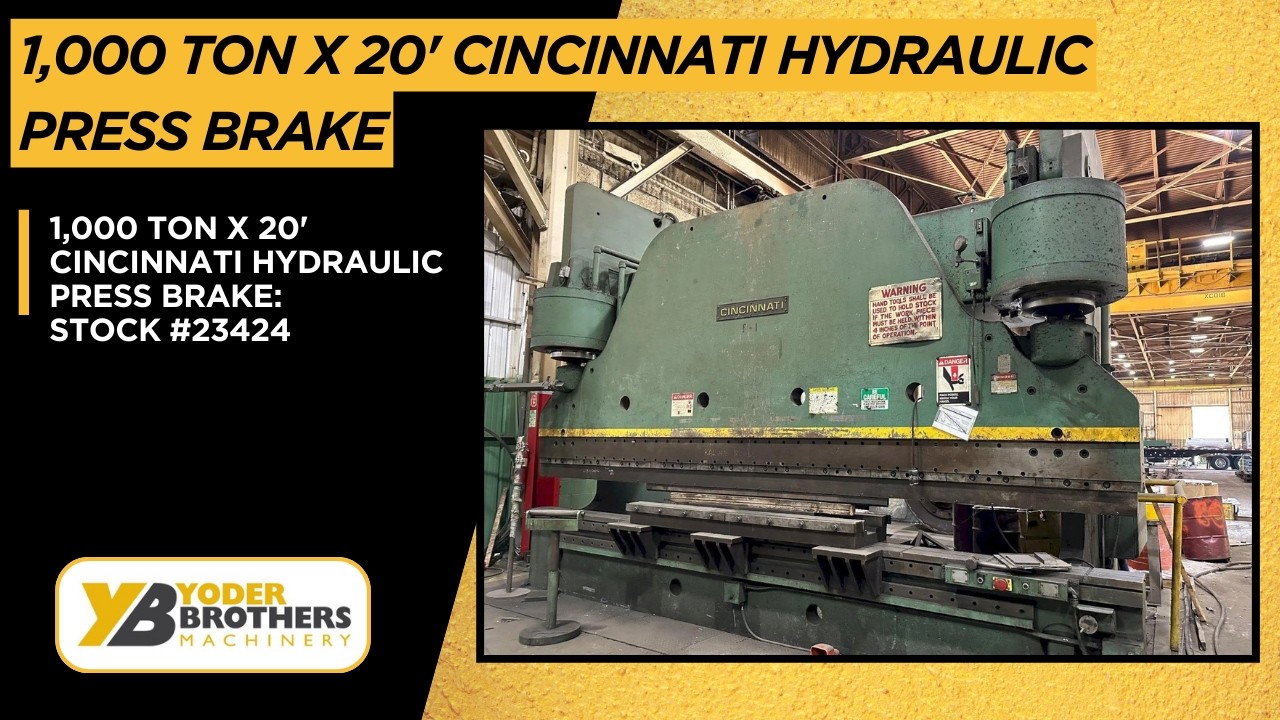

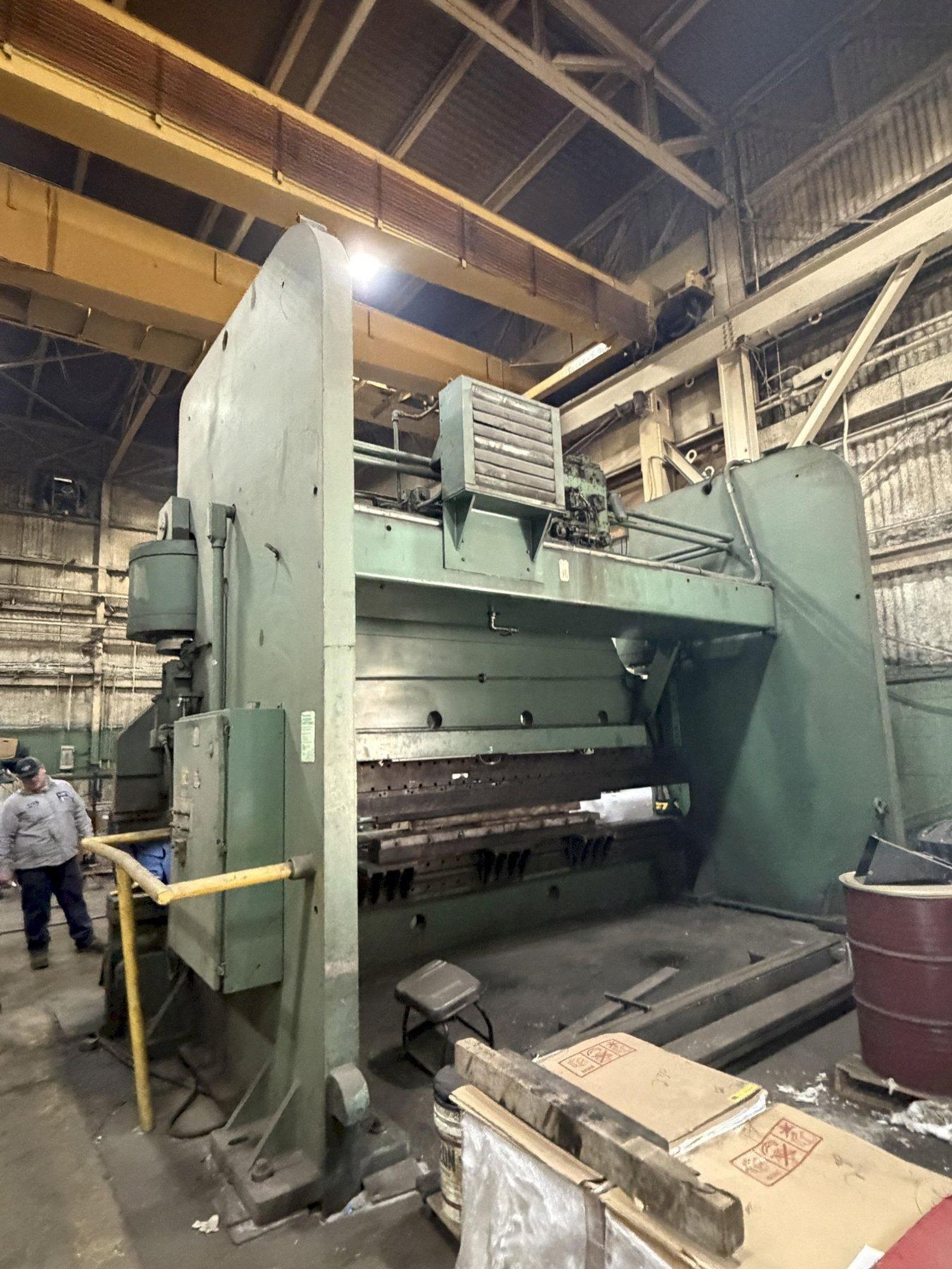

1,000 TON x 20' CINCINNATI HYDRAULIC PRESS BRAKE: STOCK #23424

Stock #: 23424

Equipped With

SERIAL ...................... 40290
YEAR NEW .................... 1976

MODEL ....................... 1000Hx16
CAPACITY .................... 1000 TONS
OVERALL LENGTH OF BED ....... 20'
DISTANCE BETWEEN HOUSINGS ... 16'6"
STROKE ...................... 12"
MAXIMUM DAYLIGHT ............ 24"
MINIMUM DAYLIGHT ............ 12"
THROAT ...................... 16"
SPEED RAPID ADVANCE ......... 62 IPM
SPEED FAST PRESS ............ 34 IPM
SPEED FULL TONNAGE .......... 15 IPM
SPEED RETURN ................ 27 IPM
SPEED FAST RETURN ........... 50 IPM
HOUSING PLATES .............. 6" THICK
BED PLATES .................. 6" THICK
RAM PLATES .................. 6" THICK

WIDTH OF BED ................ 10-1/2"
MAIN MOTOR .................. 60 HP
