| Specifications | ||
|---|---|---|
| Dimensions | 160" x 80" x 76" | |
| Weight | 13500 pounds | |
Brand
Cincinnati
Type
Grinders, Cylindrical (Incl Plain & Angle Head)
Stock No.
15042
 |
419-269-2000 |

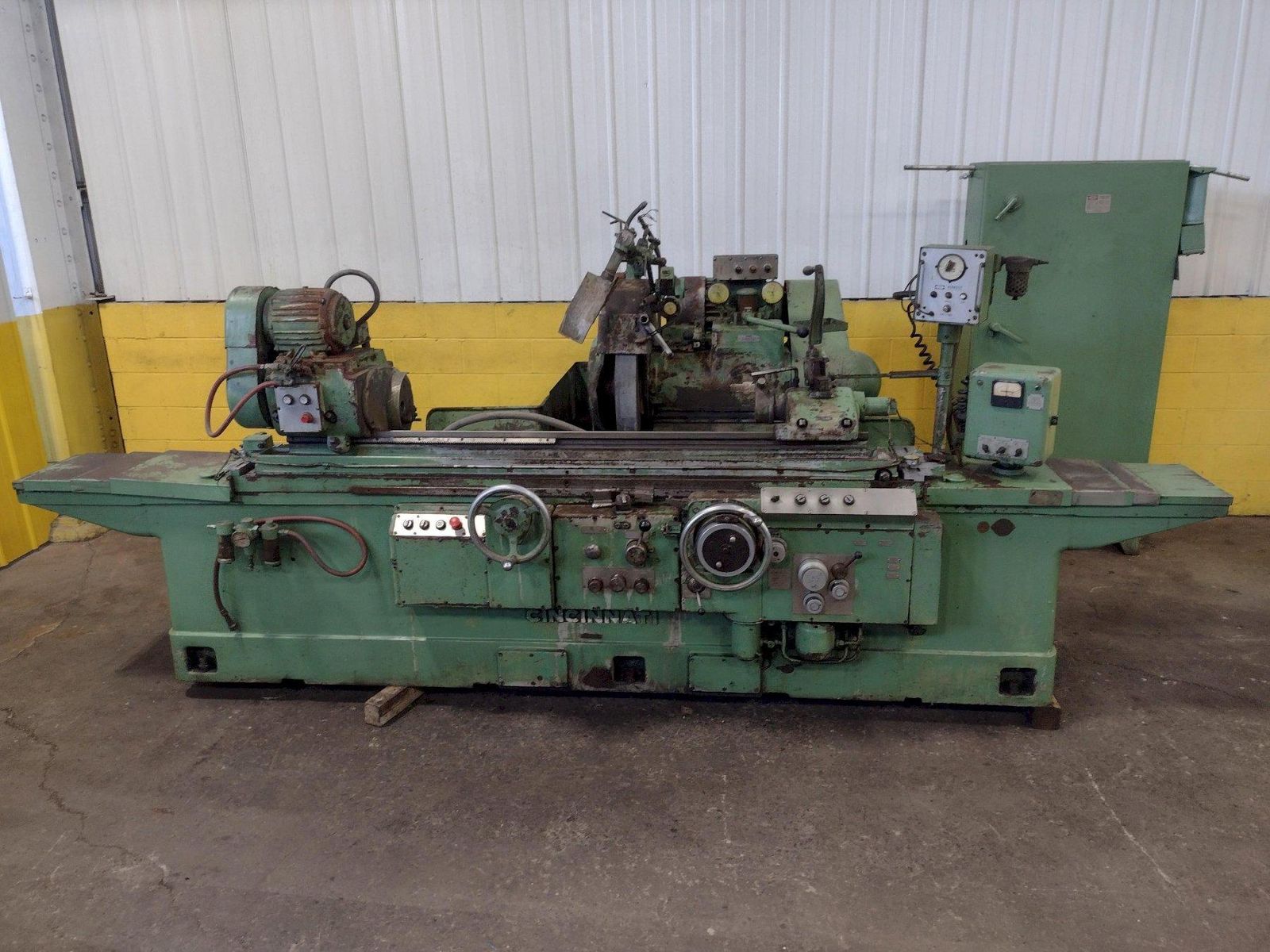

Stock #: 15042
SERIAL ................................. 3P2E5L-1
MODEL .................................. 10RX48SWING OVER TABLE ....................... 10"
MAX GRINDING LENGTH .................... 48"TABLE SPEED ............................ 3- 220 IPMTABKE RAOUD TRAVERSE SPEED ............. 220 IPMWHEELHEAD INFEED FEED RATE ............. 0.00005"WHEEKHEAD INFEED RAPID TRAVERSE RATE ... 0.050"TOWARD WHEELHEAD ....................... 8.5 DEGREESAWAY FROM WHEELHEAD .................... 3 DEGREESGRINDING WHEEL SIZE .................... 24" x 3" x 12"GRINDING WHEEL SPEED ................... 830 RPMWORKHEAD SPEEDS ........................ 50- 170 RPMWORKHEAD MOTOR ......................... 1 HP
MOTOR .................................. 15HP/440V/3PH/60CY
EQUIPPED WITH:
ACRA SIZE WITH FEDERAL GAGING
PAPER FILTER COOLANT SYSTEM
MOTORIZED WORKHEADTAILSTOCK
