Brand

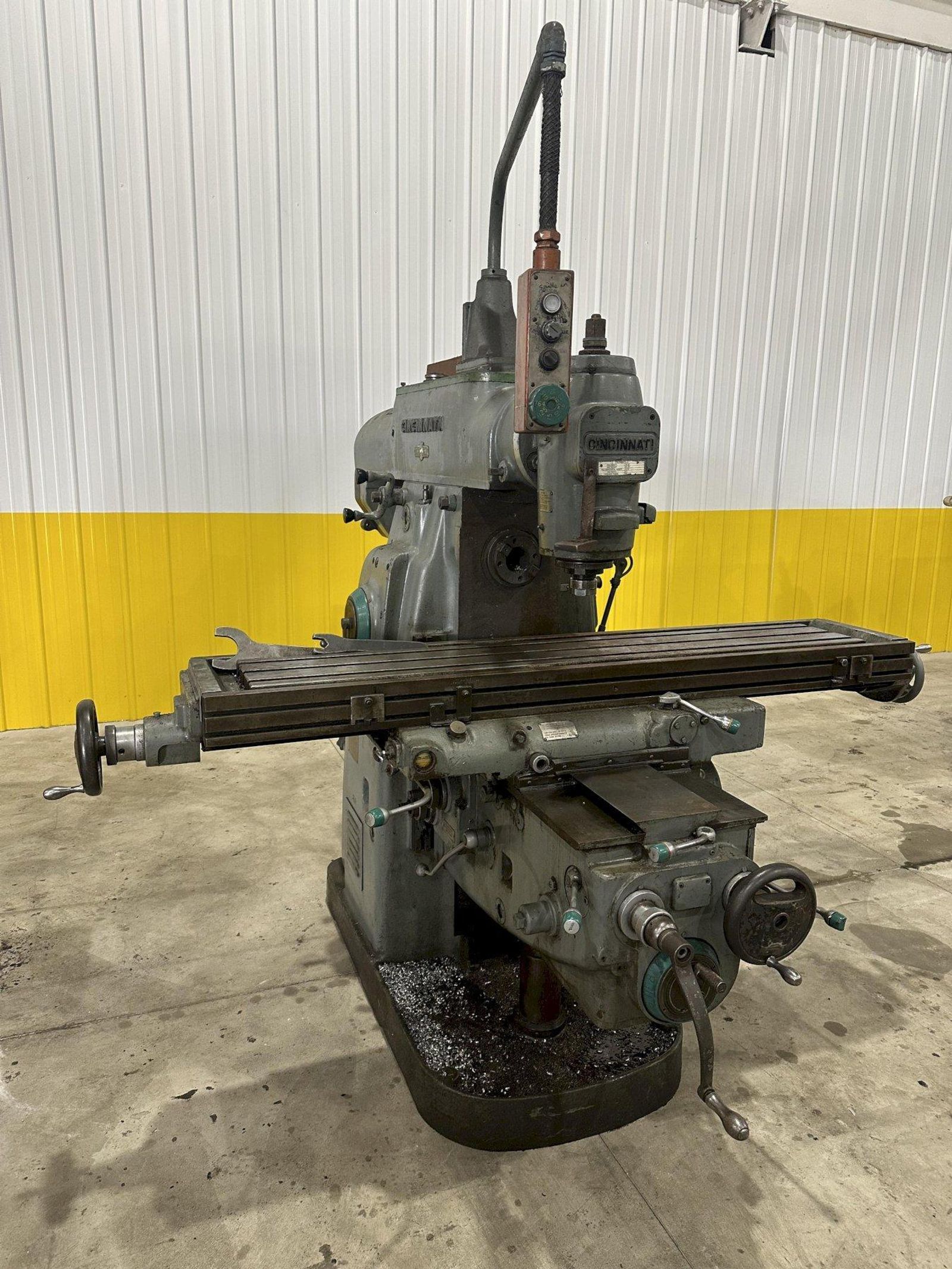

Cincinnati
Type
Millers, Horizontal
Stock No.
20605
 |
419-269-2000 |
Stock #: 20605
SERIAL .......................... 2J4P5H-2MODEL ........................... 410-14AREA OF TABLE ................... 70-1/2" X 14"SPINDLE SPEEDS .................. (16) 33 TO 2000 RPMLONGITUDINAL & CROSS FEEDS ...... (16) 1/4 TO 30 IPM (3 TO 380 MMPM)VERTICAL FEEDS .................. (16) 1/8 TO 15 IPM (1.5 TO 190 MMPM)LONGITUDINAL TRAVEL ............. 42"CROSS TRAVEL .................... 12"VERTICAL TRAVEL OF KNEE ......... 19"CENTER LINE OF SPINDLE TO TABLE . 0" MINIMUM, 19" MAXIMUMTABLE SWIVELS, LEFT OR RIGHT .... 46 DEGREETAPER IN SPINDLE ................ #50 NSRAPID TRAVERSE .................. 150 IPM (75 IPM VERTICAL)MAIN MOTOR ...................... 7.5 HORSEPOWER
VERTICAL HEAD ................... YES TOOLMAKERS OVERARM
OVERARM TRAVEL .................. 32"
VERTICAL HEAD MOTOR ............. 3 HORSEPOWER
