Machine Information

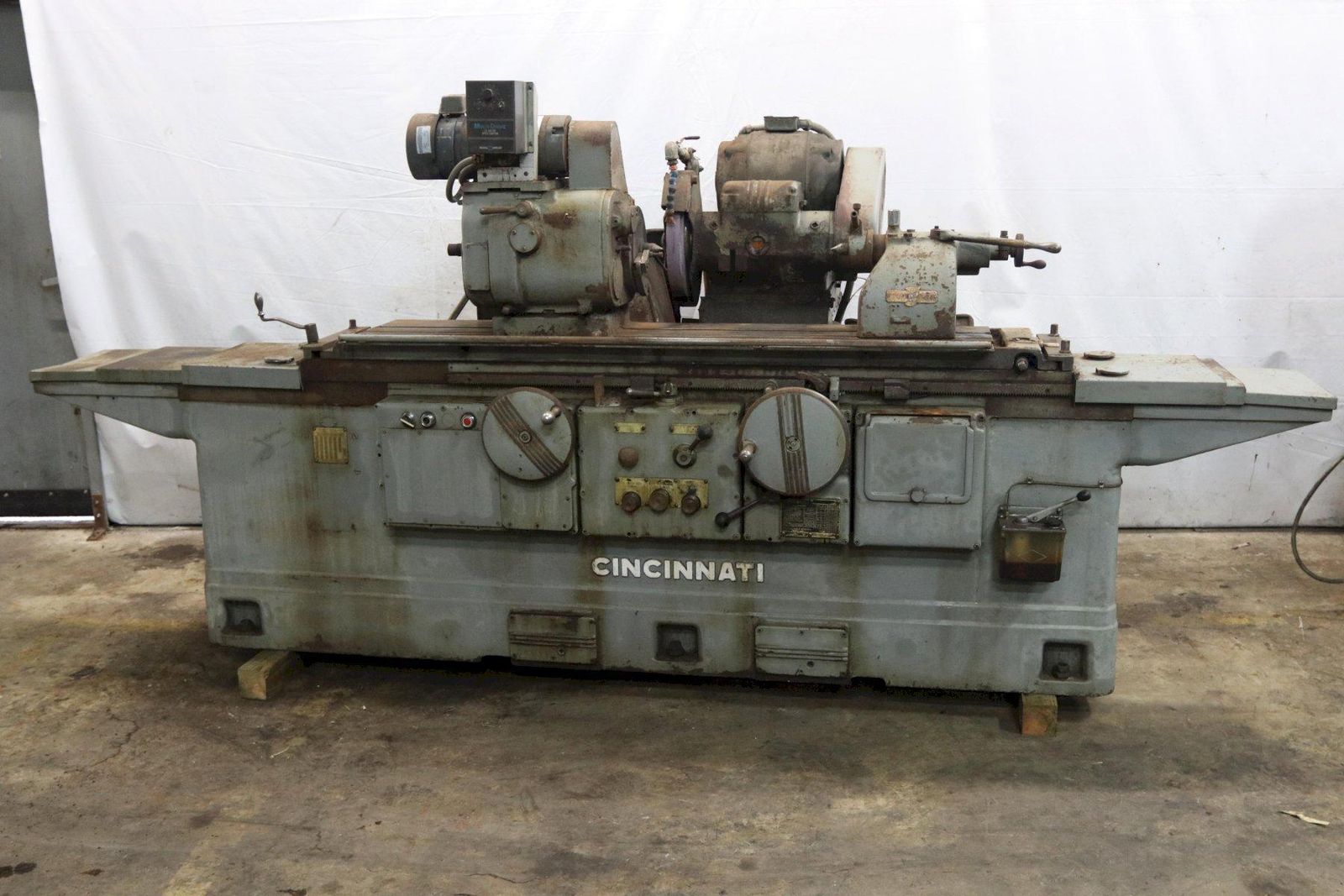

16" x 36" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER: STOCK #12247

Stock #: 12247

Equipped With

SERIAL ......................................... #3U5D1L-12
SWING OVER BED ................................. 16-15/16"
DISTANCE BETWEEN CENTERS ....................... 36"
HYDRAULIC TABLE FEED ........................... 3 TO 220 FPM
AUTOMATIC WHEELHEAD INFEED AT TABLE REVERSAL ... .0004 TO .014
WORK HEAD SPEED, VARIABLE ...................... 25 TO 225 RPM
DIAMETER OF GRINDING WHEEL ..................... 14"
WIDTH OF GRINDING WHEEL ........................ 2"
TABLE SWIVEL FORWARD/BACK ...................... 11 DEGREES/3 DEGREES
WHEEL HEAD SWIVELS LEFT/RIGHT .................. 90 DEGREES
WORK HEAD SWIVELS TOWARD HEAD .................. 90 DEGREES
WORK HEAD SWIVEL AWAY FROM WHEEL HEAD .......... 30 DEGREES
COOLANT ........................................ YES
WHEEL HEAD MOTOR ............................... 5 HP
HYDRAULIC DRIVE MOTOR .......................... 1.5 HP
WORK HEAD MOTOR ................................ 1 HP
