Machine Information

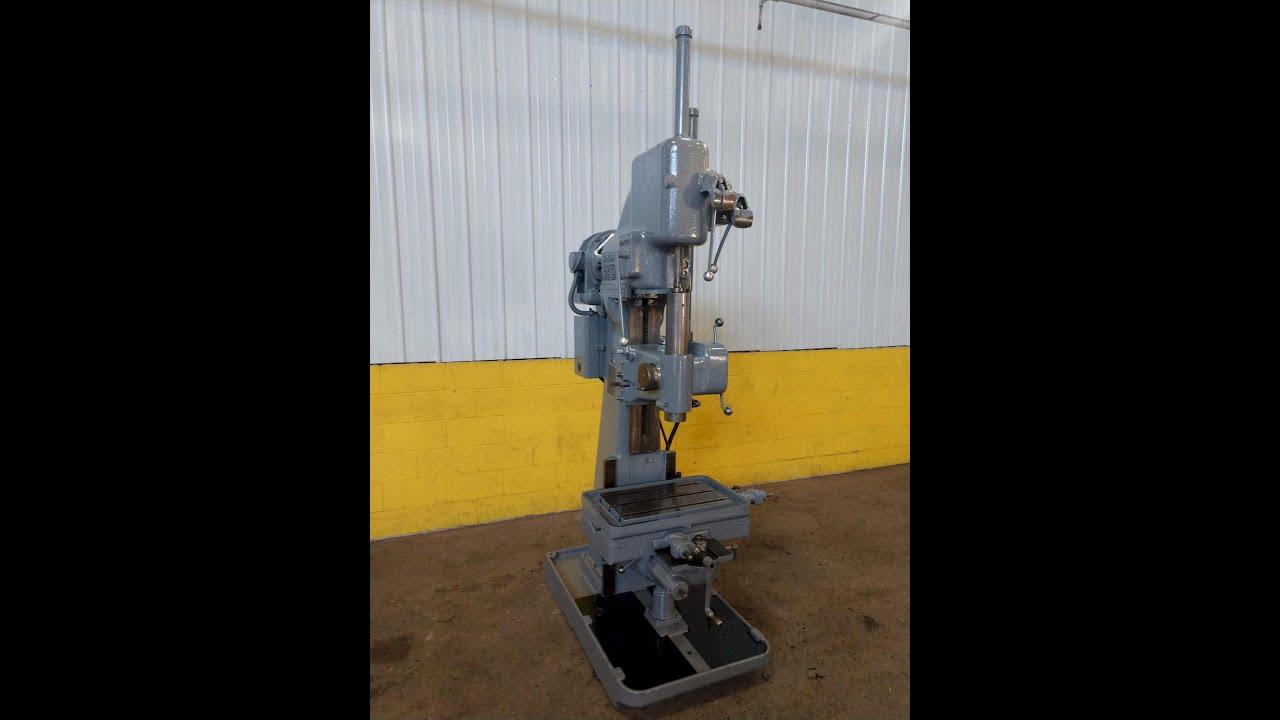

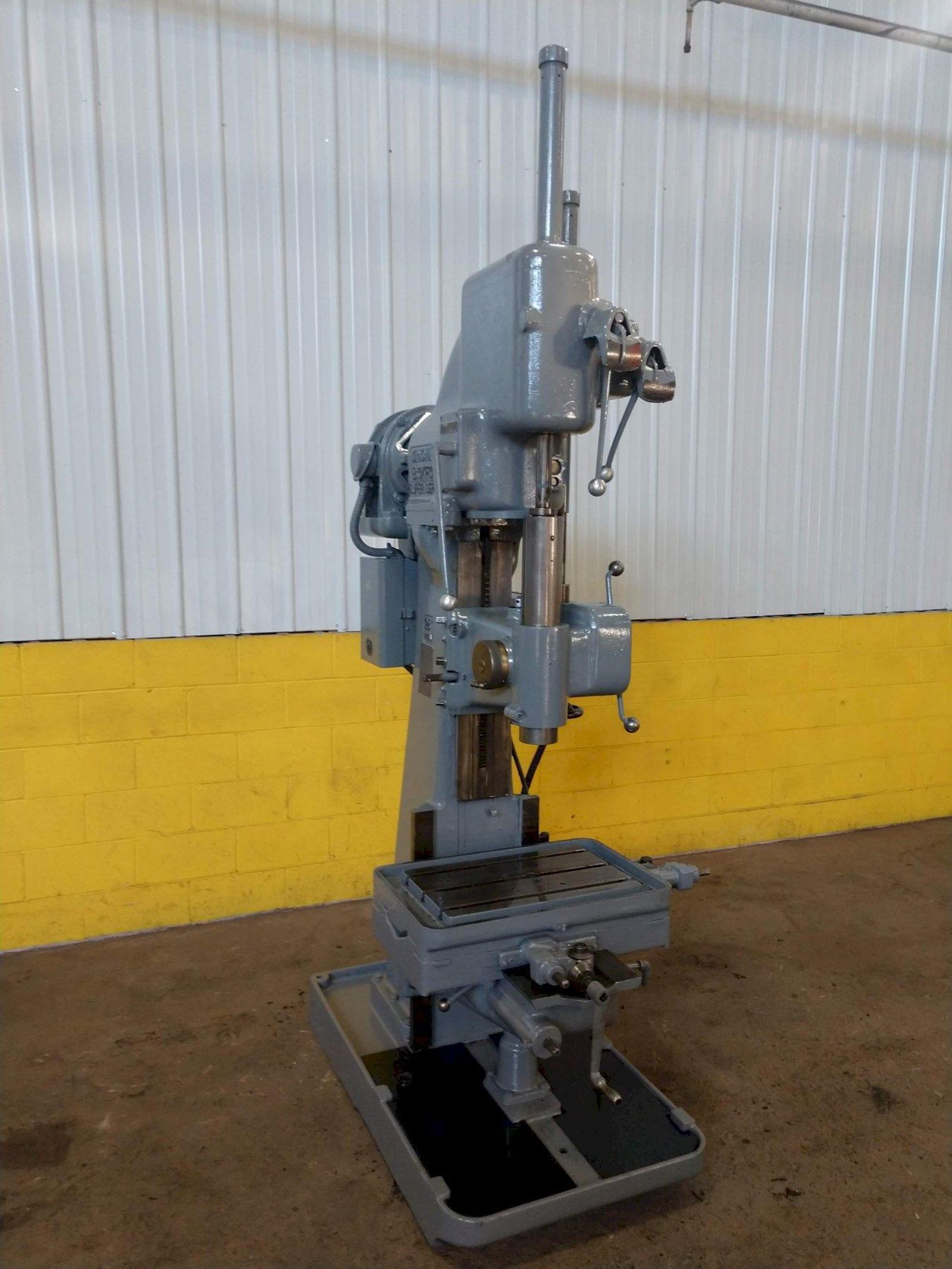

28" CINCINNATI BICKFORD MODEL #3L SINGLE SPINDLE DRILL WITH LAYOUT TABLE: STOCK #13168

Stock #: 13168

Equipped With

SERIAL ....................... 3L73

MODEL ........................ 3L 28" BOX COLUMN
DEPTH OF THROAT .............. 14-1/2"
COMPOUND TABLE AREA .......... 18" X 28"
LONGITUDINAL TABLE TRAVEL .... 20"
CROSS TABLE TRAVEL ........... 11-1/2"
SPINDLE DIAMETER ............. 4"
SPINDLE BORE ................. No.4 MT
SPINDLE POWER FEED STROKE .... 10-1/2"
SPINDLE HAND FEED STROKE ..... 11-1/8"
SPINDLE SPEEDS ............... (12) 60 TO 1000 RPM
SPINDLE FEEDS ................ (9) .005 TO .043 IPR
COOLANT ...................... YES
MOTOR ........................ 5 HORSEPOWER
