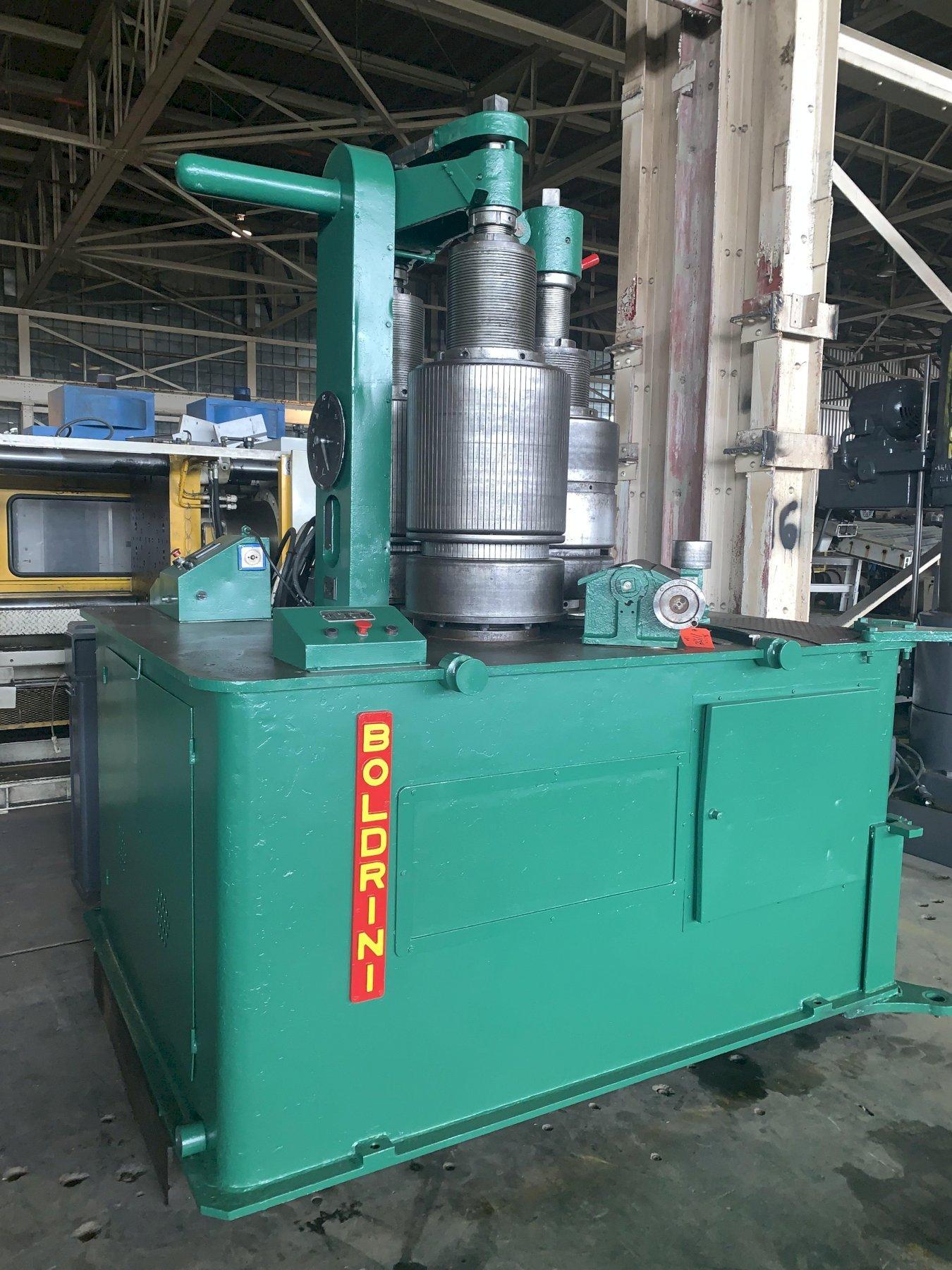

7" X 7" X 3/4" BOLDRINI BSA362 HEAVY DUTY VERTICAL PLATE / ANGLE ROLLS: STOCK #11338

Stock #: 11338

Equipped With

SERIAL ..................... 4984
MODEL ...................... BSA362
NEW ........................ 1972
Roll Height ................ 14.5" (360 mm)
Shaft Diameter ............. 9" (235 mm)
Bending Roll Diameter ...... 21" (530 mm)
Speeds ..................... 3 to 8 fpm (4.5 -9 m/min)
Angle, Leg Out ............. 7" x 7" x 3/4" (80 x 80 x 10 (750))
Angle, Leg In .............. 6" x 6" x 1/2" (65 x 65 x 11 (1000))
Channel, Leg Out ........... 65 x 360
Channel, Leg In ............ 65 x 300
Travel of Adjustment Roll .. 14"
Stationary Rolls Centers ... 28 - 1/2"
Motor ...................... 25 HP

Buy Machines

7" X 7" X 3/4" BOLDRINI BSA362 HEAVY DUTY VERTICAL PLATE / ANGLE ROLLS: STOCK #11338

Stock # 11338

Share Machine
Print Details

Machine Specifications

SERIAL ..................... 4984
MODEL ...................... BSA362
NEW ........................ 1972
Roll Height ................ 14.5" (360 mm)
Shaft Diameter ............. 9" (235 mm)
Bending Roll Diameter ...... 21" (530 mm)
Speeds ..................... 3 to 8 fpm (4.5 -9 m/min)
Angle, Leg Out ............. 7" x 7" x 3/4" (80 x 80 x 10 (750))
Angle, Leg In .............. 6" x 6" x 1/2" (65 x 65 x 11 (1000))
Channel, Leg Out ........... 65 x 360
Channel, Leg In ............ 65 x 300
Travel of Adjustment Roll .. 14"
Stationary Rolls Centers ... 28 - 1/2"
Motor ...................... 25 HP

Specifications
Dimensions 86" x 80" x 108"
Weight 25000 pounds
