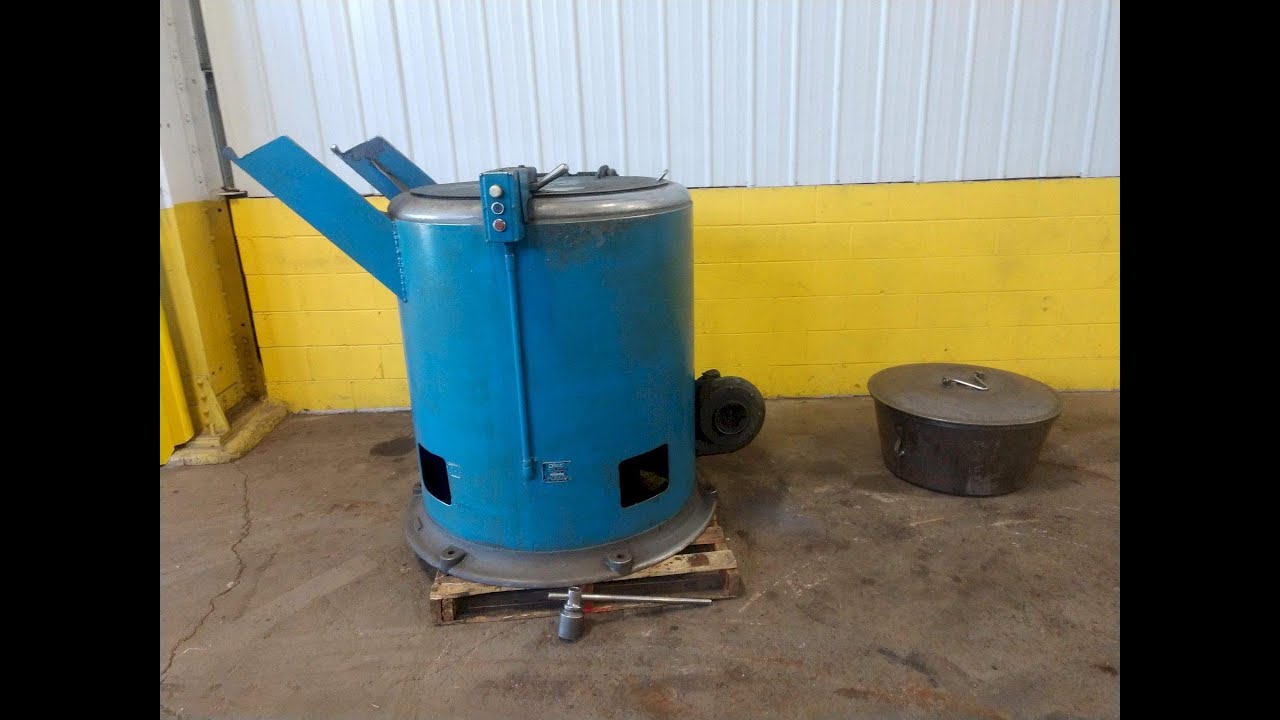

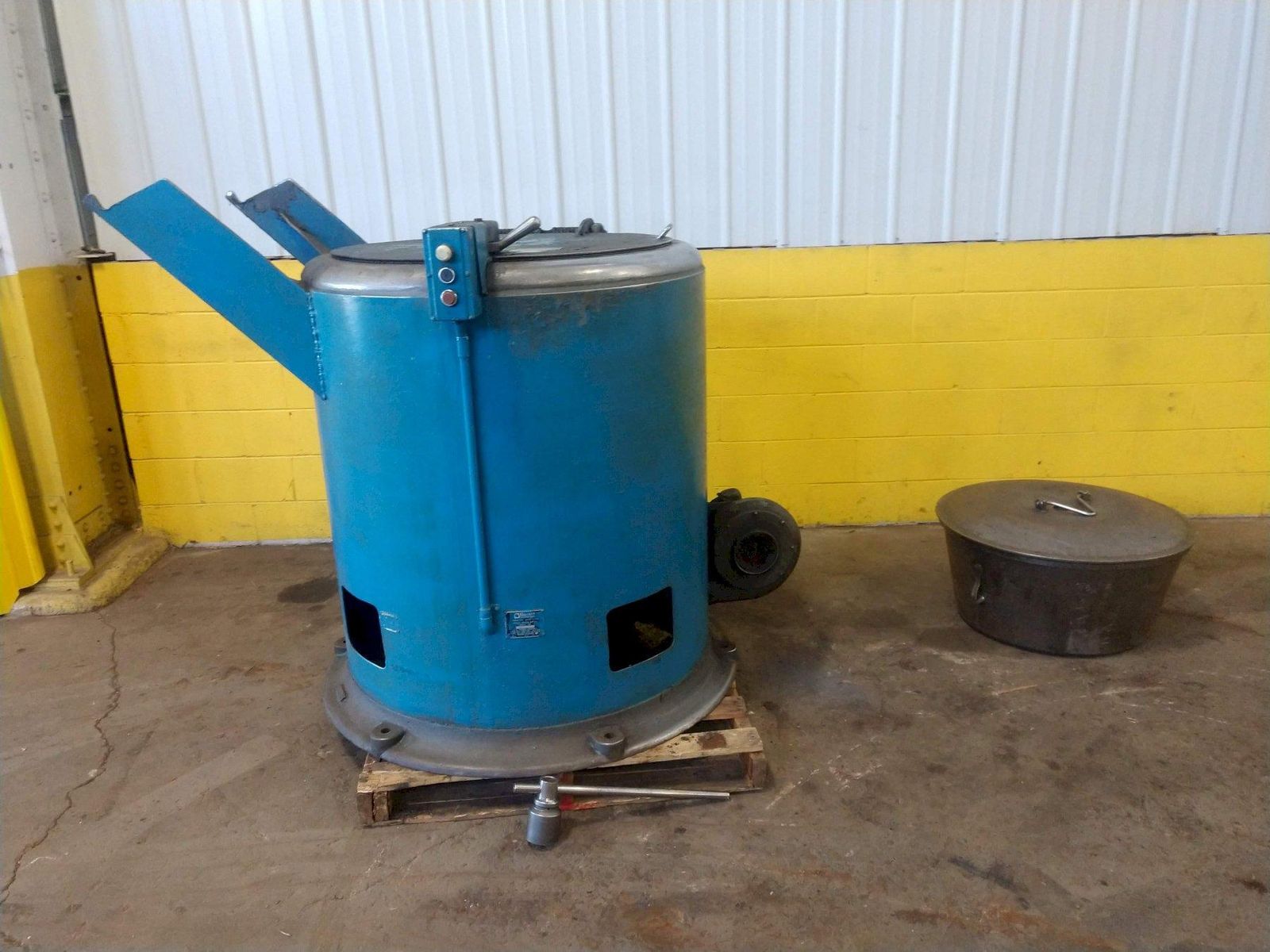

30" BARRETT MODEL #1100-E EXTRACTOR CENTRIFUGE CHIP SPINNER WRINGER: STOCK #13584

Stock #: 13584

Equipped With

SERIAL ................................ 110122-SE
MODEL ................................. 1100-SE
CHIP PAN DIAMETER...................... 30"
CHIP PAN DEPTH......................... 14"
CHIP PAN CAPACITY (CUBIC FEET)......... 4.25
CHIP PAN CAPACITY (BUSHELS)............ 3.5
MAXIMUM LOADS PER HOUR................. 15
HOURLY PRODUCTION RATE (CUBIC FEET).... 63
HOURLY PRODUCTION RATE (BUSHELS)....... 52
55 GALLON DURMS........................ 8.5
MAX. ALLOWABLE LOAD (LBS).............. 425
RUNNING SPEED (RPM).................... 900 RPM
MOTOR HORSEPOWER....................... 10 HP
MACHINE HEIGHT (TOP CLOSED)............ 43.5"
MACHINE HEIGHT (TOP OPEN).............. 80"
DIAMETER OF MACHINE BASE............... 49"
