Machine Information

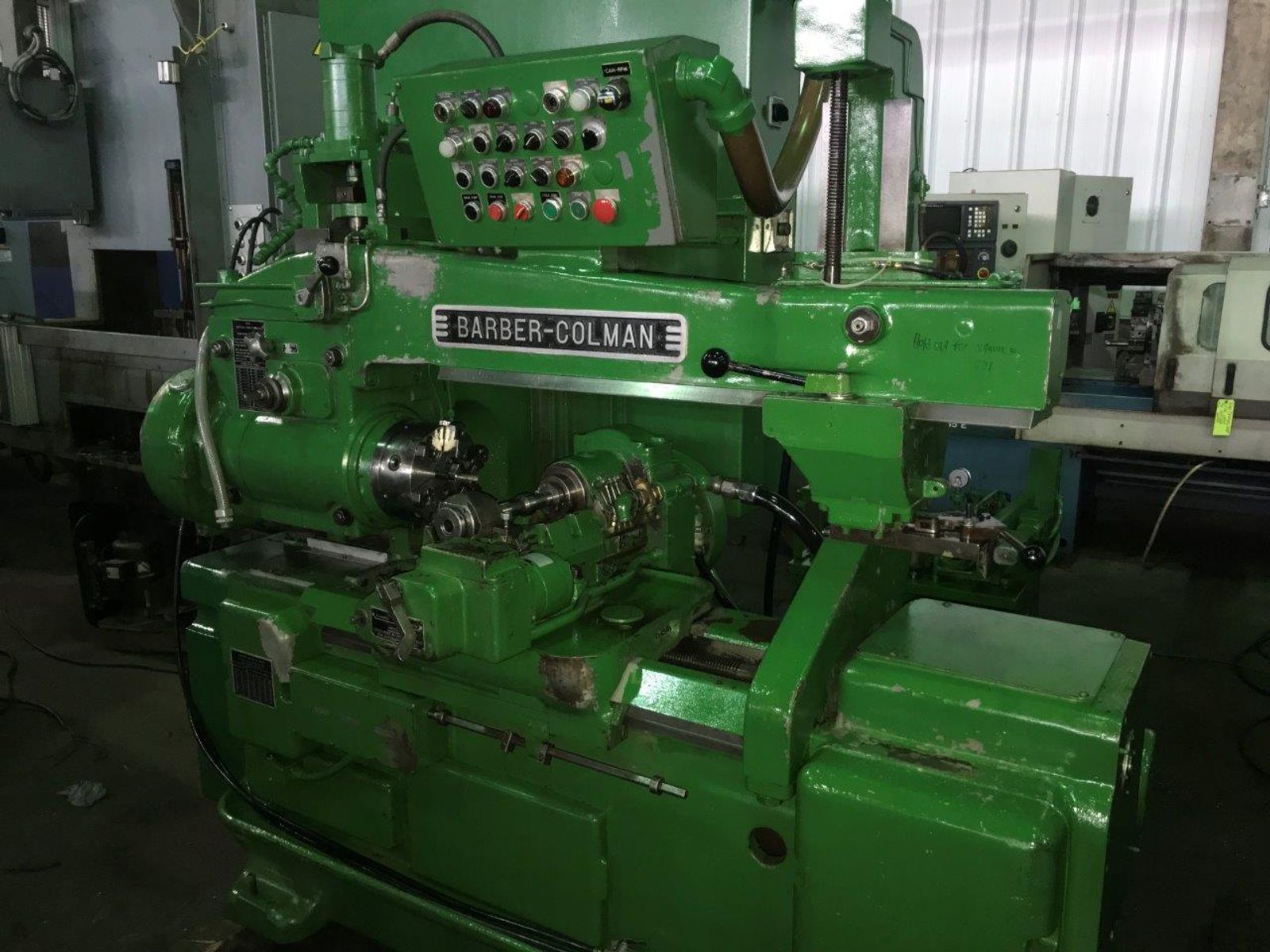

BARBER COLMAN 16-16 GEAR HOBBER: STOCK 18235

Stock #: 18235

Equipped With

SERIAL ..................................................... 4475
Year ....................................................... 1974
Module ..................................................... 4.0
Hob Arbor Size ............................................. 1.25"
Axial Travel ............................................... 16.0"
Work Spindle Bore .......................................... 3.125"
Hob Speed .................................................. 425 RPM
Maximum Hob Diameter ....................................... 5.0"
Maximum Diametral Pitch .................................... 6.0
Maximum Workpiece Diameter ................................. 16.0"
Horz/Vert .................................................. Horz
Manufacturer ............................................... BARBER COLMAN
Hole Thru Spindle: ......................................... 3-1/8"
Maximum Rated Work Diameter: ............................... 16"
Maximum DP (for 1 Cut in Steel): ........................... 6 DP
Maximum Rate Hob Diameter: ................................. 5"
Maximum Travel of Hob Carriage: ............................ 16"
Maximum Distance, Work Spindle Face to Tail Center: ........ 44"
Diameter of Work Spindle Bore: ............................. 4-1/8"
Maximum Hob Swivel Angle Setting (Left or Right): .......... 45 Degrees
Maximum Hob Speed: ......................................... 425 RPM
Maximum Vertical Speed Distance: ........................... 1/2"
Maximum Total Vertical Distance: ........................... 7/8"
Downfeed (25): ............................................. From .020 - .500
