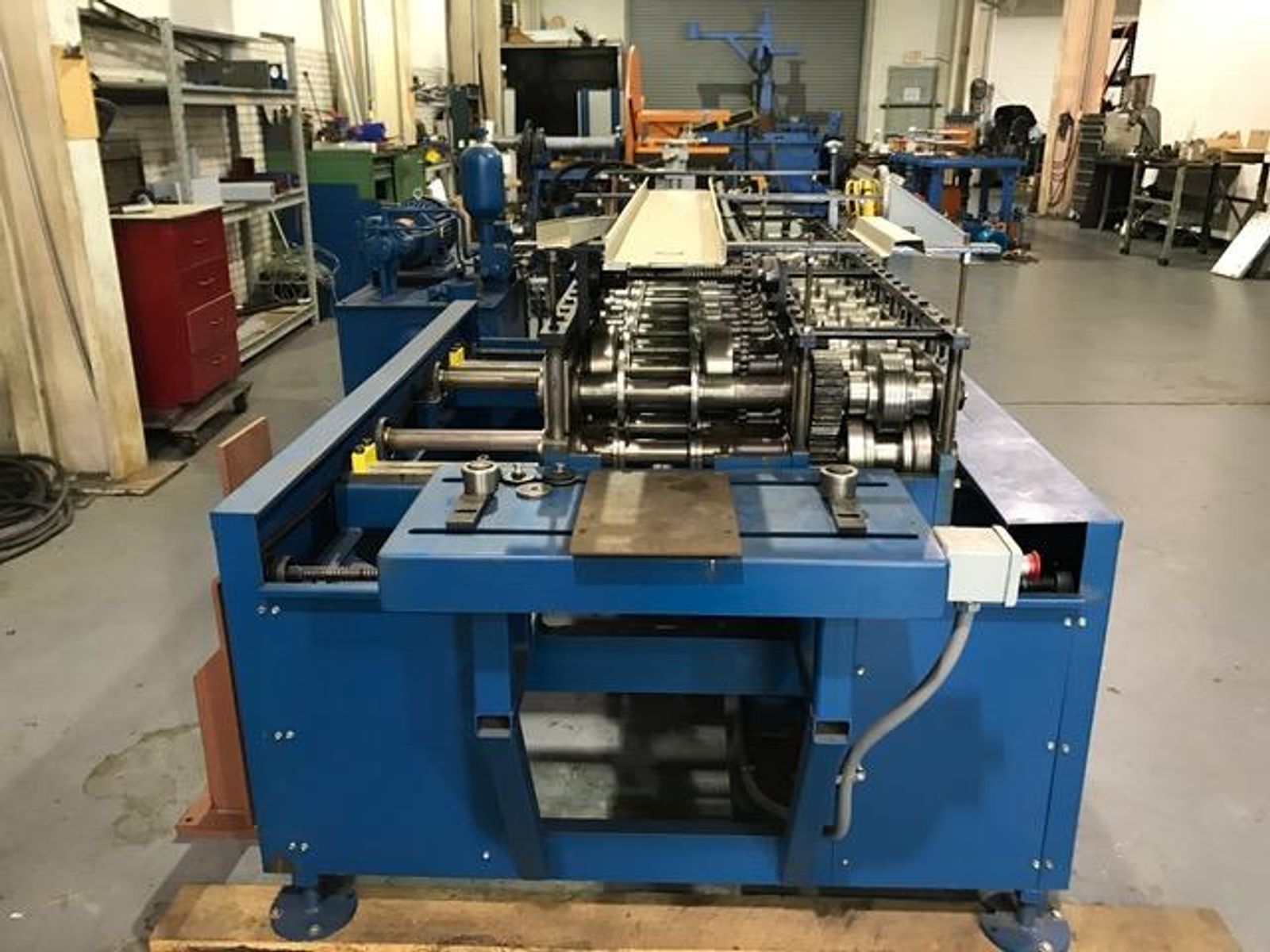

B & K VERSAMILL STUD, TRACK & FURRING ROLLFORMING SYSTEM: STOCK 10049

Stock #: 10049

Equipped With

DRYWALL STUD, TRACK & FURRING CHANNEL ARE PRODUCED IN THIS ECONOMICAL LIGHT
GAUGE FRAMING SYSTEM.

PRECUT OPERATION FOR FAST CHANGEOVER BETWEEN PRODUCTS.

FLYING SERVICE HOLE PUNCH AND SHEAR.
(note: PUNCH SHAPE TO YOUR
SPECIFICATIONS)

MATERIAL: 0.018" - 0.035" (20-24 GAUGE - 55KSI MAX)

CRANK WITDTH ADJUSTMENT WITH DIGITAL POSITION READOUT ADJUSTS THE WIDTH OF
THE STUD AND TRACK.

FURRING CHANNEL IS A FIXED SIZE.

6,000# SINGLE MANDREL POWERED DECOILER.

AMS DIGITAL

DRYWALL STUD & TRACK:
MATERIAL THICKNESS ................... 0.018" TO 0.035"
WIDTH ................................ 1.625" TO 6.000"
HEIGHT ............................... 1.00" TRACK TO 1.25" STUD
LINE SPEED ........................... 150 FPM (45 M/MIN)

FURRING CHANNEL ...................... 0.018" TO 0.035"
WIDTH ................................ 2.750"
HEIGHT ............................... 0.813"
LINE SPEED ........................... 150 FPM (45 M/MIN)

Buy Machines

B & K VERSAMILL STUD, TRACK & FURRING ROLLFORMING SYSTEM: STOCK 10049

Stock # 10049

Share Machine
Print Details

Machine Specifications

DRYWALL STUD, TRACK & FURRING CHANNEL ARE PRODUCED IN THIS ECONOMICAL LIGHT
GAUGE FRAMING SYSTEM.

PRECUT OPERATION FOR FAST CHANGEOVER BETWEEN PRODUCTS.

FLYING SERVICE HOLE PUNCH AND SHEAR.
(note: PUNCH SHAPE TO YOUR
SPECIFICATIONS)

MATERIAL: 0.018" - 0.035" (20-24 GAUGE - 55KSI MAX)

CRANK WITDTH ADJUSTMENT WITH DIGITAL POSITION READOUT ADJUSTS THE WIDTH OF
THE STUD AND TRACK.

FURRING CHANNEL IS A FIXED SIZE.

6,000# SINGLE MANDREL POWERED DECOILER.

AMS DIGITAL

DRYWALL STUD & TRACK:
MATERIAL THICKNESS ................... 0.018" TO 0.035"
WIDTH ................................ 1.625" TO 6.000"
HEIGHT ............................... 1.00" TRACK TO 1.25" STUD
LINE SPEED ........................... 150 FPM (45 M/MIN)

FURRING CHANNEL ...................... 0.018" TO 0.035"
WIDTH ................................ 2.750"
HEIGHT ............................... 0.813"
LINE SPEED ........................... 150 FPM (45 M/MIN)

Videos
Specifications
Number of Stands 12
