200 HP AVITECH (BOEING) MODEL #843-200-1 HYDRAULIC PUMP & ACCESSORIES TEST BENCH STAND: STOCK #16393

Stock #: 16393

Equipped With

Avitech 843-200-1 Hydraulic Pump and Accessories Test Stand

MODEL ............ 843-200-1
YEAR NEW ......... 2005
CONDITION ........ "LIKE NEW"
FLOW RATE ........ 0 TO 30GPM
FLOW PRESSURE .... 0 TO 3,000PSI; 5,000 @ REDUCED FLOW
FLUID ............ RED OIL (5606)

DESIGN PARAMETERS:
1. One man operation
2. Stainless Steel Reservoir
3. MIL-H-5606 or MIL-H-6083
4. Drive Motor: 200 hp reversible, variable-speed drive system, 0 to 5000 RPM.
5. Pump Motors: High Pressure: 60hp, 1775 rpm, 460v, 60Hz, 3-phase AC Boost Pump: 5hp, 1740 rpm, 460v, 60Hz, 3-phase AC.
6. Pump Capabilities: High Pressure: 30 GPM at 3750 psi, reduce flow to 5000 psi Low Pressure: 40 GPM at 150 psi
7. Static Pressure Test: 0 to 25,000psi
8. Fluid Operating Temperature: 100ºF to 160ºF
9. Supply and Return Filtration: High Pressure: 3 micron Boost Low Pressure: 10 micron Reservoir Return: 10 micron Uses replaceable elements.
10. UUT Mounting Adapters


PURPOSE:

The Avitech AV843 Hydraulic Pump and Accessories Test Stand is designed to accurately perform overhaul and post overhaul acceptance tests on hydraulic and pneumatic components such as valves, actuating cylinders, solenoid valves, reservoirs, accumulators, pumps, and other components.

Capabilities of the AV843 Test Stand include producing and maintaining drive speeds, flow rates, temperatures, and pressures, as required when testing components.

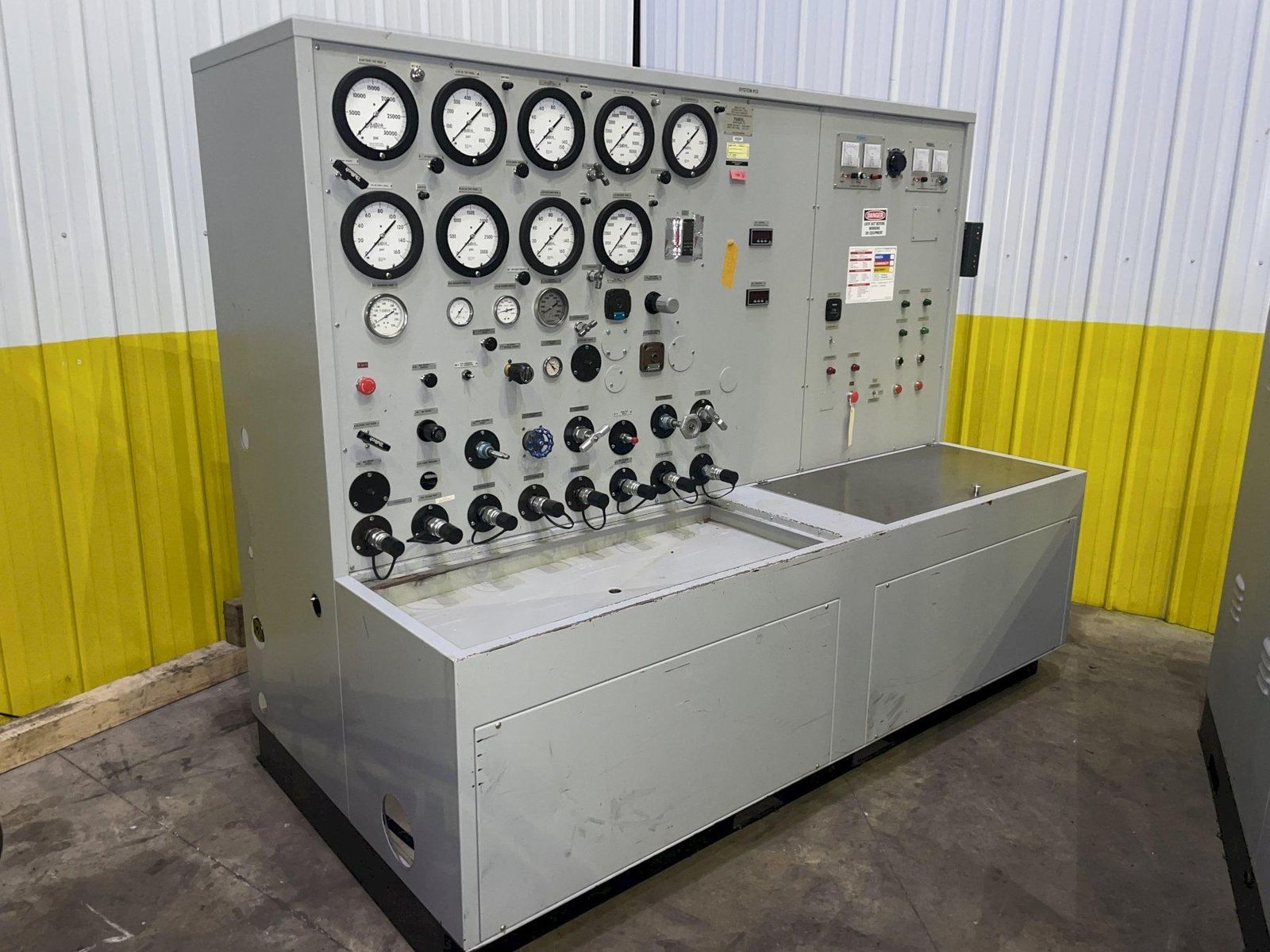

The Test Stand consists of a drive console and a control console. The drive console encloses a reversible, variable speed drive, an electric motor, and facilities for mounting and driving hydraulic pumps. The control console contains the instrumentation, electrical control circuits, storage compartment and writing surface.

The Test Stand utilizes a low pressure boost pump, high pressure hydraulic pump and an air-operated hydraulic booster.

All required instrumentation to perform tests on the necessary components has been provided with accuracies meeting or exceeding specifications in the applicable Technical Orders.

COMPONENTS TESTED:
Hydraulic valves, linear and rotary actuating cylinders, solenoid valves, relief valves, selector valves, shuttle valves, pressure switches, pistons, reservoirs, accumulators, pumps, and other associated components.

APPLICABILITY AIRCRAFT:
Many different military aircraft systems including the F-4, F-5, F-15, F-18, F-16, F-111, B1B, B52, C130, KC135, and others.
