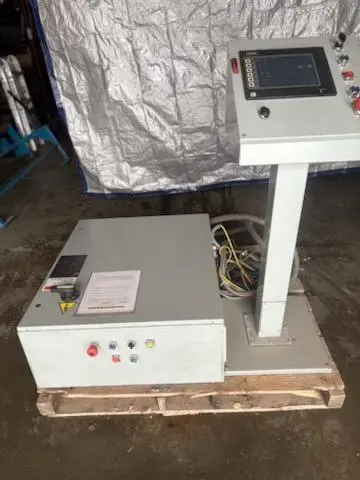

Portable Electronic Die Setter - 4 Cylinders

One compact, low profile wheeled cabinet contains all the equipment you need for all the punch spotting, die setting and die separation jobs in your shop. This die setter is completely portable with self-retracting hose reels and pendant.

Each Die Setter has two modes of operation:

  1. Unify Mode - Cylinders will extend until each makes contact with the die; cylinders will subsequently lift uniformly, creating a synchronous lifting system.
  2. Parallel Mode - Cylinders will extend uniformly, at the same rate, and act as a synchronous jacking system. To initiate this mode, cylinders must be fully extended or fully retracted.

80,000 LBS LAMINA 4-CYLINDER PORTABLE HYDRAULIC DIE SETTING & SEPARATING SYSTEM: STOCK #14197

Brand
ANCHOR

Type
Separators

Stock No.
14197

Related Listings

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

80,000 LBS LAMINA 4-CYLINDER PORTABLE HYDRAULIC DIE SETTING & SEPARATING SYSTEM: STOCK #14197

Stock #: 14197

Equipped With


Portable Electronic Die Setter - 4 Cylinders

One compact, low profile wheeled cabinet contains all the equipment you need for all the punch spotting, die setting and die separation jobs in your shop. This die setter is completely portable with self-retracting hose reels and pendant.

Each Die Setter has two modes of operation:

  1. Unify Mode - Cylinders will extend until each makes contact with the die; cylinders will subsequently lift uniformly, creating a synchronous lifting system.
  2. Parallel Mode - Cylinders will extend uniformly, at the same rate, and act as a synchronous jacking system. To initiate this mode, cylinders must be fully extended or fully retracted.
