Machine Information

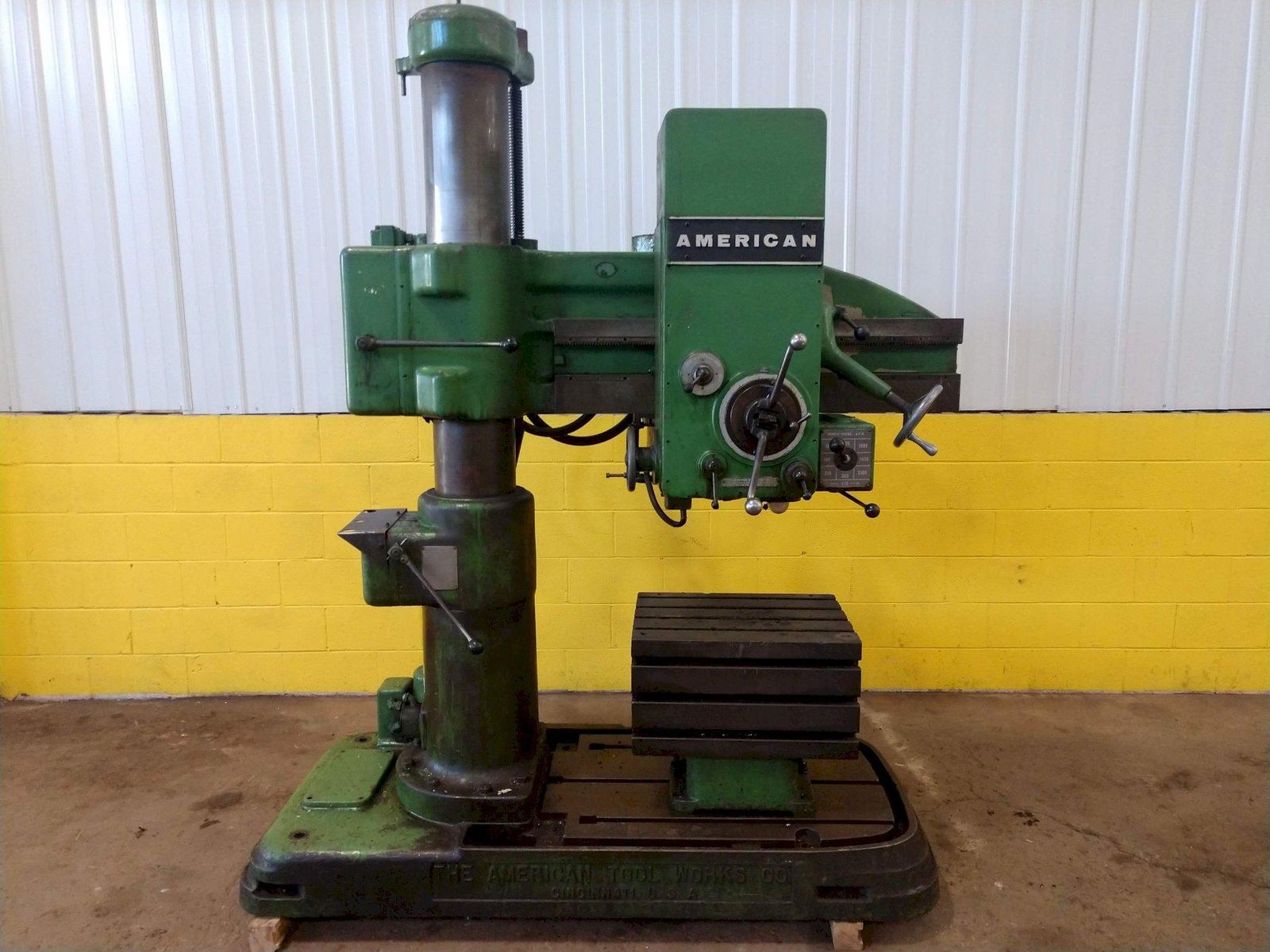

3' X 9" AMERICAN RADIAL DRILL: STOCK #12911

Stock #: 12911

Equipped With

ARM LENGTH ................. 3'
COLUMN DIAMETER ............ 9"
BASE AREA (T-SLOTTED) ...... 46" X 36"
SPINDLE SPEEDS ............. (12) 45 TO 2250 RPM
SPINDLE FEEDS .............. (6) .004 TO .025 IPR
SPINDLE STROKE ............. 12"
SPINDLE DIAMETER ........... 2-1/2"
SPINDLE TAPER .............. #4 MT
SPINDLE TO COLUMN .......... 36" MAX. TO 10-3/4" MIN.
SPINDLE TO BASE ............ 55-1/4" MAX. TO 15-1/4" MIN.
BASE HEIGHT ................ 8"
POWER ELEVATION ............ YES
COOLANT .................... YES
*** DRILL BOX TABLE *** .... YES
SPINDLE MOTOR .............. 5 HP
ELEVATION MOTOR ............ 1.5 HP
COOLANT MOTOR .............. 1/4 HP GUSHER
