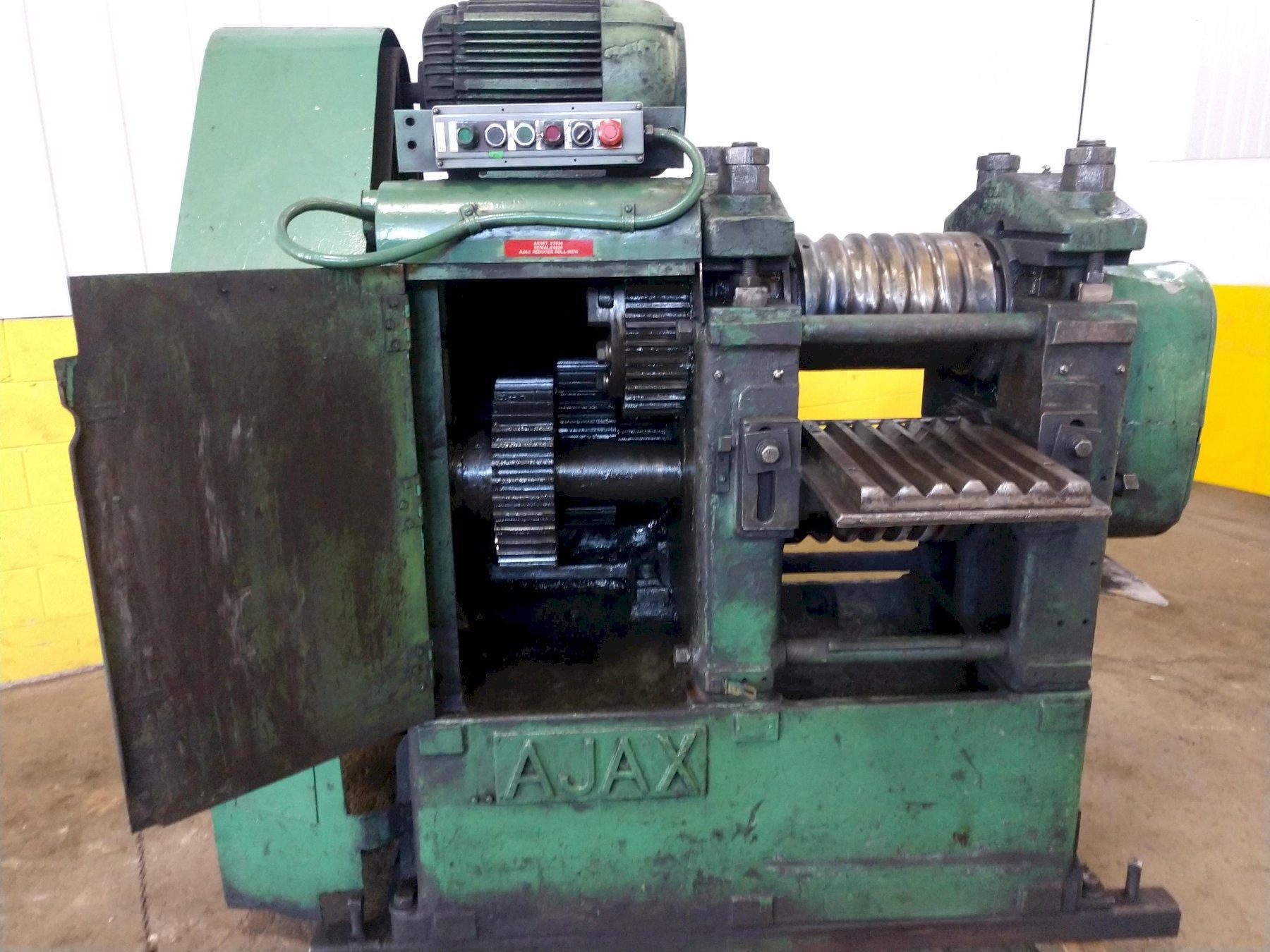

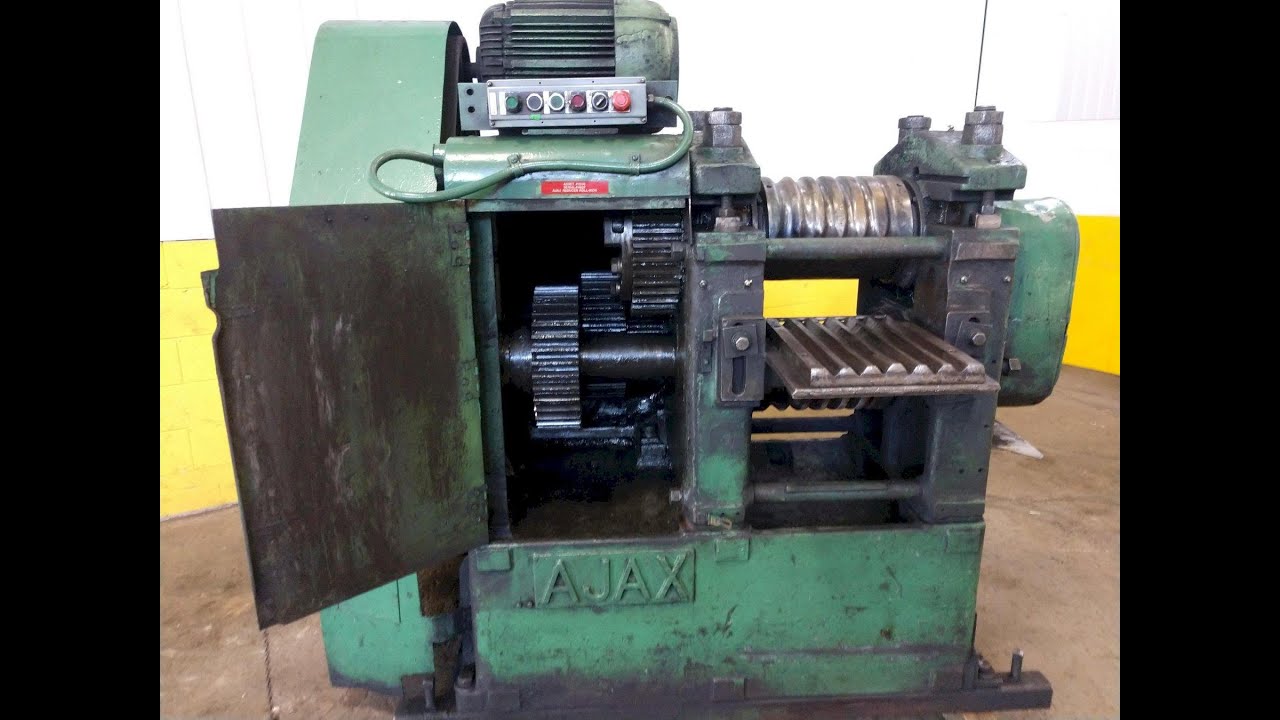

AJAX #O INBOARD OUTBOARD FORGING ROLL: STOCK #13522

Stock #: 13522

Equipped With

SERIAL ............................ 4495
MODEL ............................. #O

Width of Roll Dies

Half Round......................... 14"
Flat Back.......................... 14"
Overhung........................... 6"

Max. Roll Die Dia.
Half Round......................... 12 1/2"
Flat Back.......................... 12 1/2"
Overhung........................... 12 1/2"

Max. Usable Die Periphery
Half Round......................... 19"
Flat Back.......................... 11"
Overhung........................... 30"

Min. Roll Die Dia.
Half Round......................... 10 1/2"
Flat Back.......................... 10 1/2"
Overhung........................... 10 1/2"

Min. Usable Die Periphery
Half Round......................... 16"
Flat Back.......................... 9 1/2"
Overhung........................... 25"

AIR CLUTCH ........................ YES
ENTRY GUIDE CHUTE ................. YES







Buy Machines

AJAX #O INBOARD OUTBOARD FORGING ROLL: STOCK #13522

Stock # 13522

Share Machine
Print Details
Download Images

Machine Specifications

SERIAL ............................ 4495
MODEL ............................. #O

Width of Roll Dies

Half Round......................... 14"
Flat Back.......................... 14"
Overhung........................... 6"

Max. Roll Die Dia.
Half Round......................... 12 1/2"
Flat Back.......................... 12 1/2"
Overhung........................... 12 1/2"

Max. Usable Die Periphery
Half Round......................... 19"
Flat Back.......................... 11"
Overhung........................... 30"

Min. Roll Die Dia.
Half Round......................... 10 1/2"
Flat Back.......................... 10 1/2"
Overhung........................... 10 1/2"

Min. Usable Die Periphery
Half Round......................... 16"
Flat Back.......................... 9 1/2"
Overhung........................... 25"

AIR CLUTCH ........................ YES
ENTRY GUIDE CHUTE ................. YES







Specifications
Dimensions 68" W x 50" L
Weight 11000 pounds
