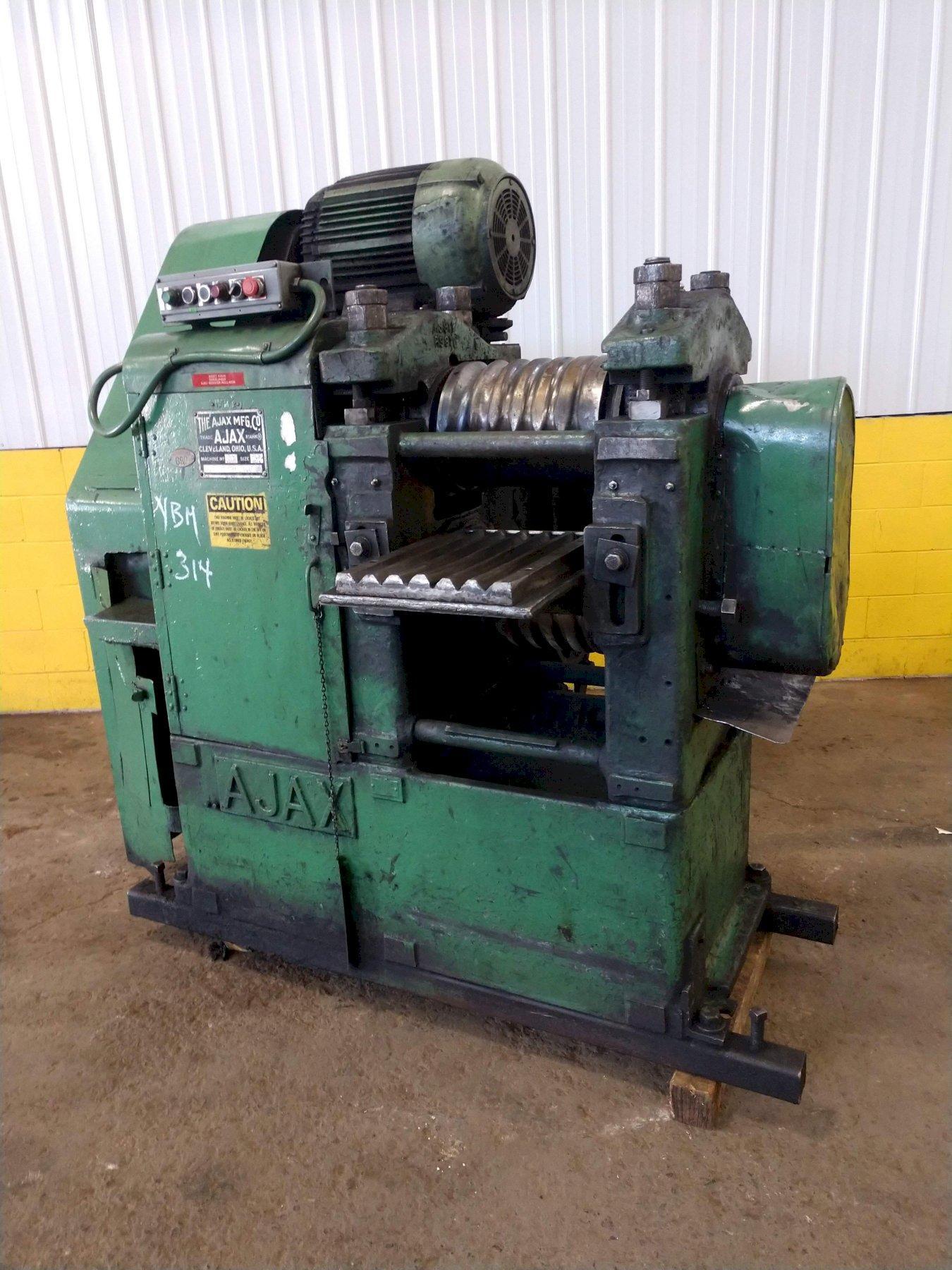

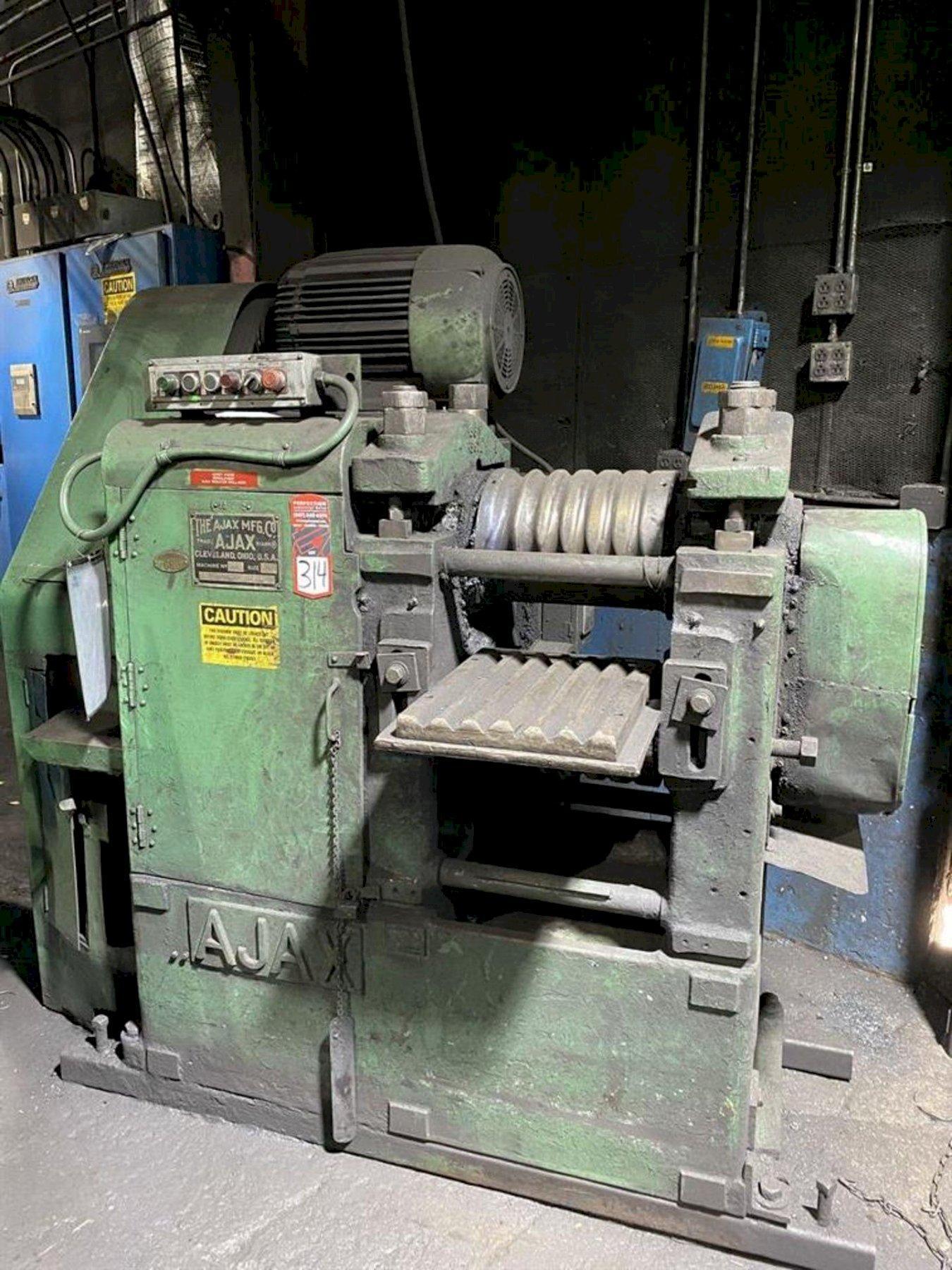

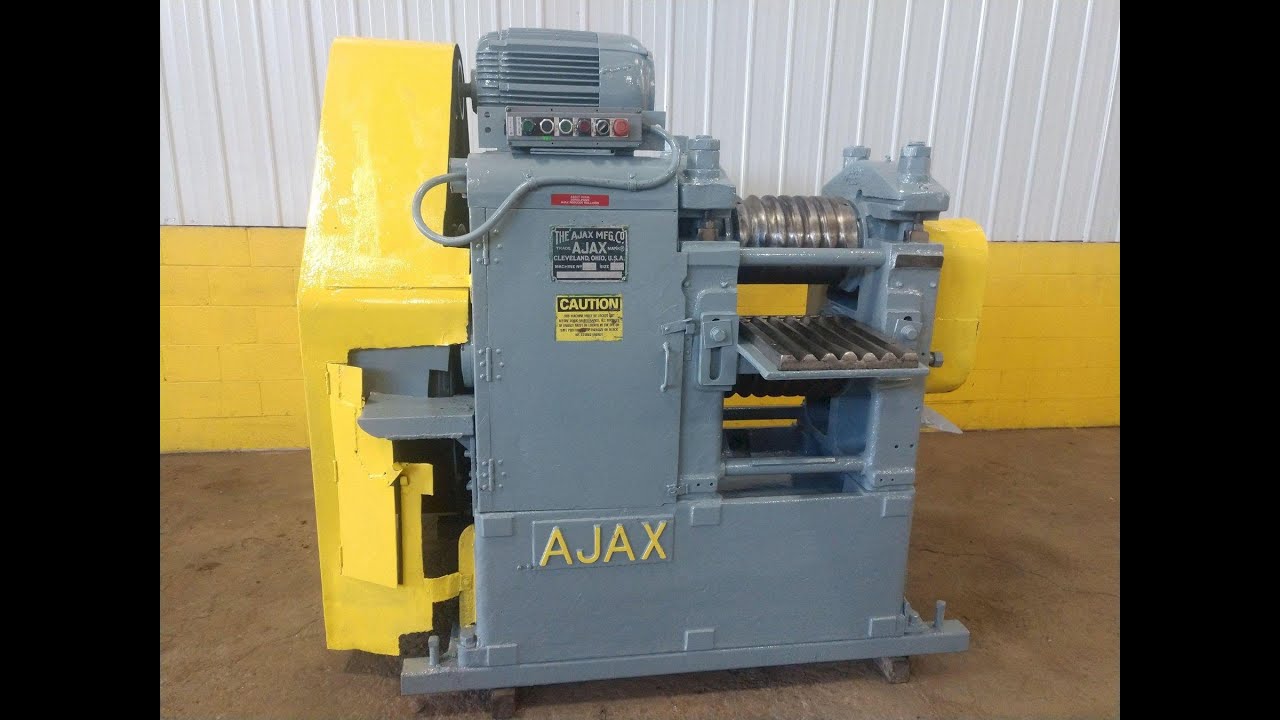

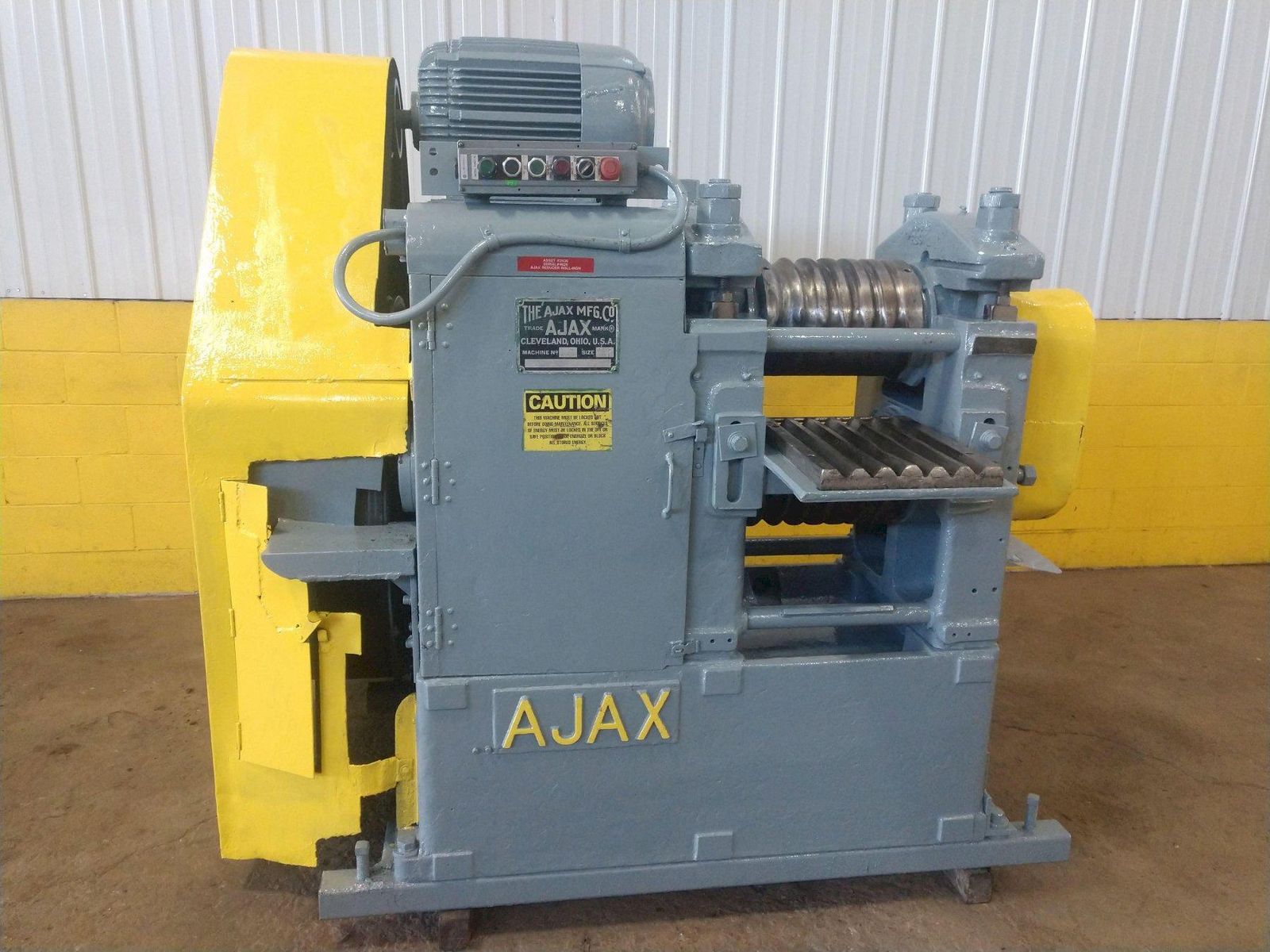

AJAX #O INBOARD OUTBOARD FORGING ROLL: STOCK #13519

Stock #: 13519

Equipped With

SERIAL ............................ 4626
MODEL ............................. #O

Width of Roll Dies
Half Round......................... 14"
Flat Back.......................... 14"
Overhung........................... 6"

Max. Roll Die Dia.
Half Round......................... 12 1/2"
Flat Back.......................... 12 1/2"
Overhung........................... 12 1/2"

Max. Usable Die Periphery
Half Round......................... 19"
Flat Back.......................... 11"
Overhung........................... 30"

Min. Roll Die Dia.
Half Round......................... 10 1/2"
Flat Back.......................... 10 1/2"
Overhung........................... 10 1/2"

Min. Usable Die Periphery
Half Round......................... 16"
Flat Back.......................... 9 1/2"
Overhung........................... 25"

AIR CLUTCH ........................ YES
ENTRY GUIDE CHUTE ................. YES
