Machine Information

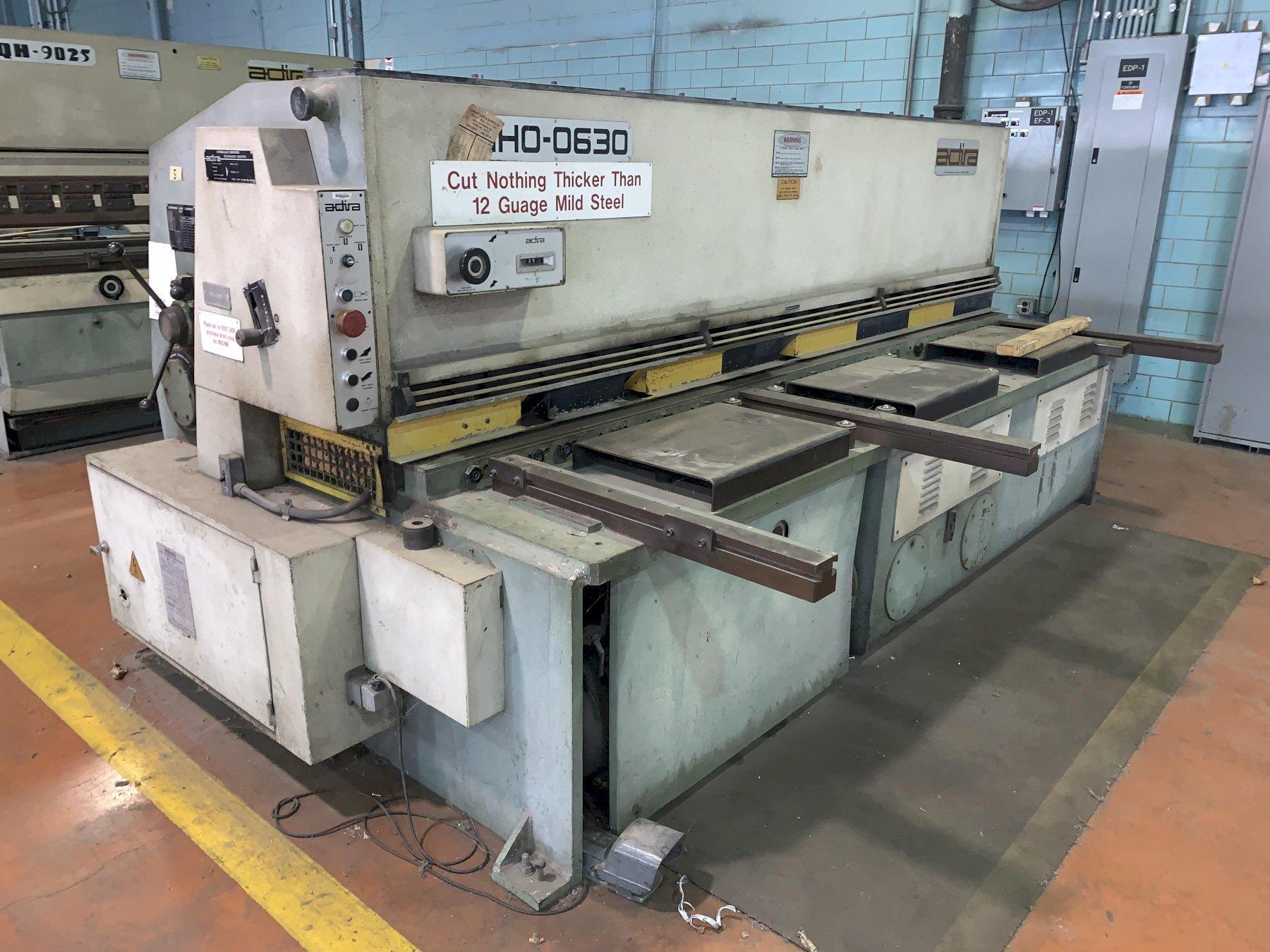

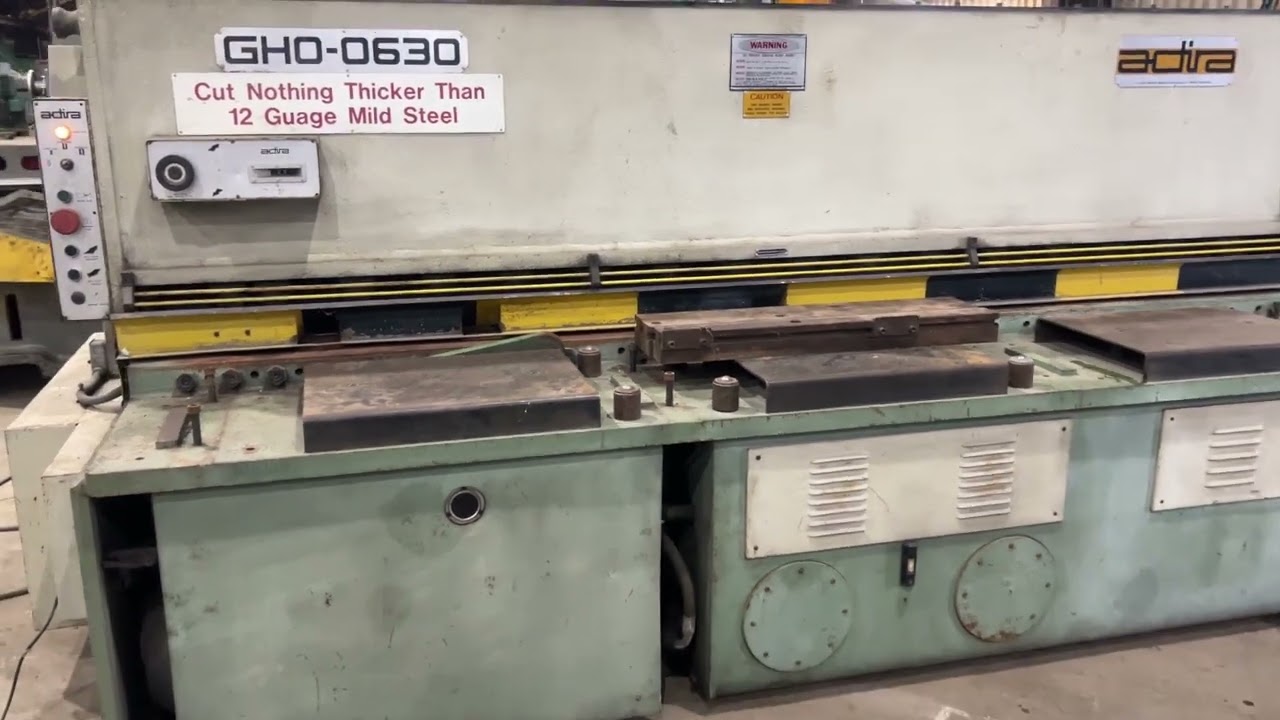

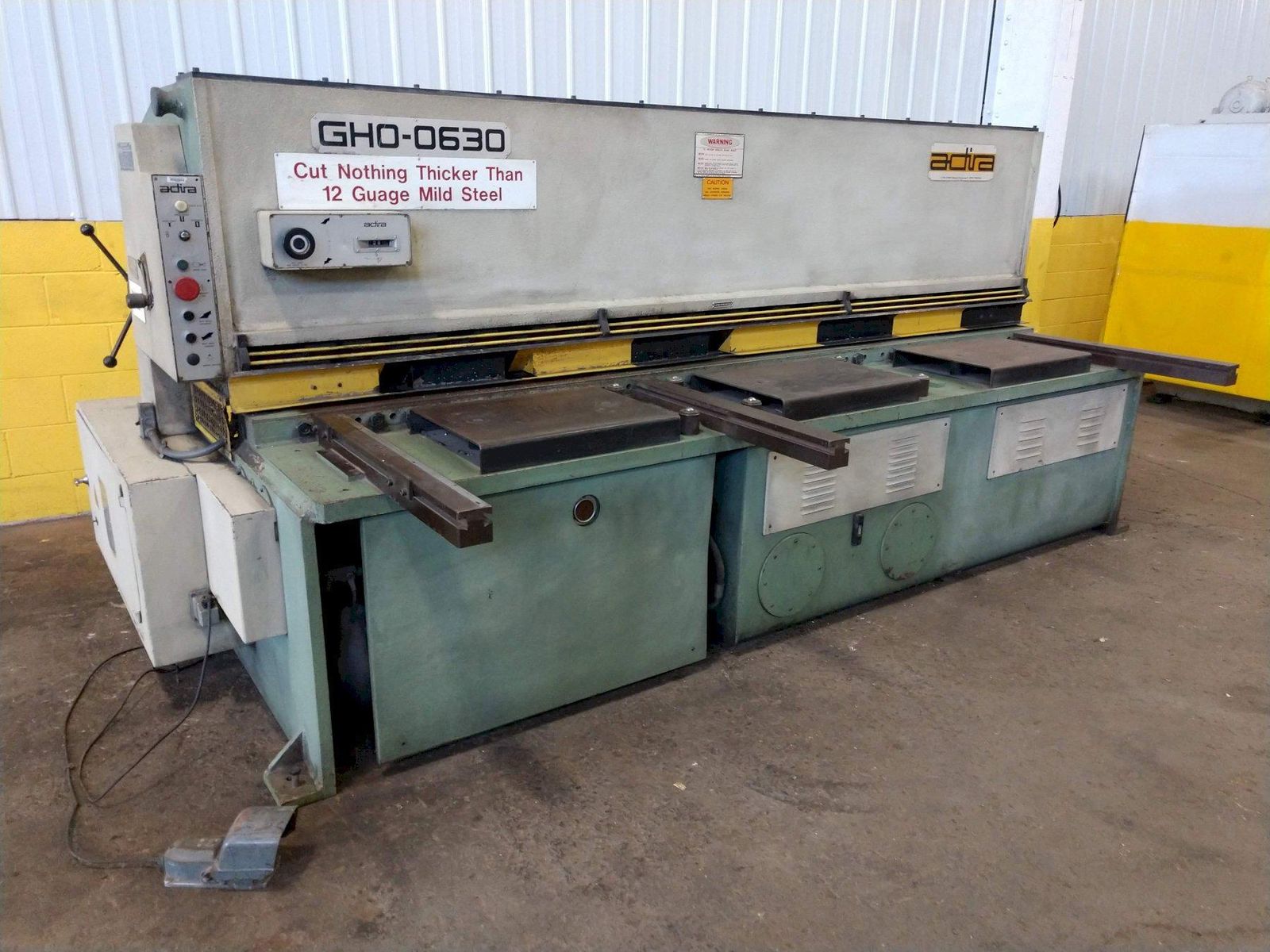

10' X 1/4" ADIRA MODEL GHS-0630 HYDRAULIC SHEAR: STOCK#12622

Stock #: 12622

Equipped With

Serial ......................... 1211/3675
Model .......................... GH0-0630
DIMENSIONS ..................... 140" X 68" X 69"
WEIGHT ......................... 13000 LBS
Year New ....................... 1985
Capacity (mild steel) .......... 1/4”
Maximum Cutting Length ......... 10’
Throat Depth ................... 12”
Table Height ................... 34”
Rake Angle ..................... 1-1/2 degree (fixed)
Gap adjustment ................. (12) .002” to .043”
Number of Hold downs ........... 16
Blade Size ..................... 1/4” x 2-1/2” x 122”
Backgauge range ................ 30”
Backguage readouts ............. Yes
Blade Gap Adjustment ........... Yes, manual
Single & Continuous Operation .. Yes
Foot Pedal Control ............. Yes
Main Motor ..................... 12 Hp
