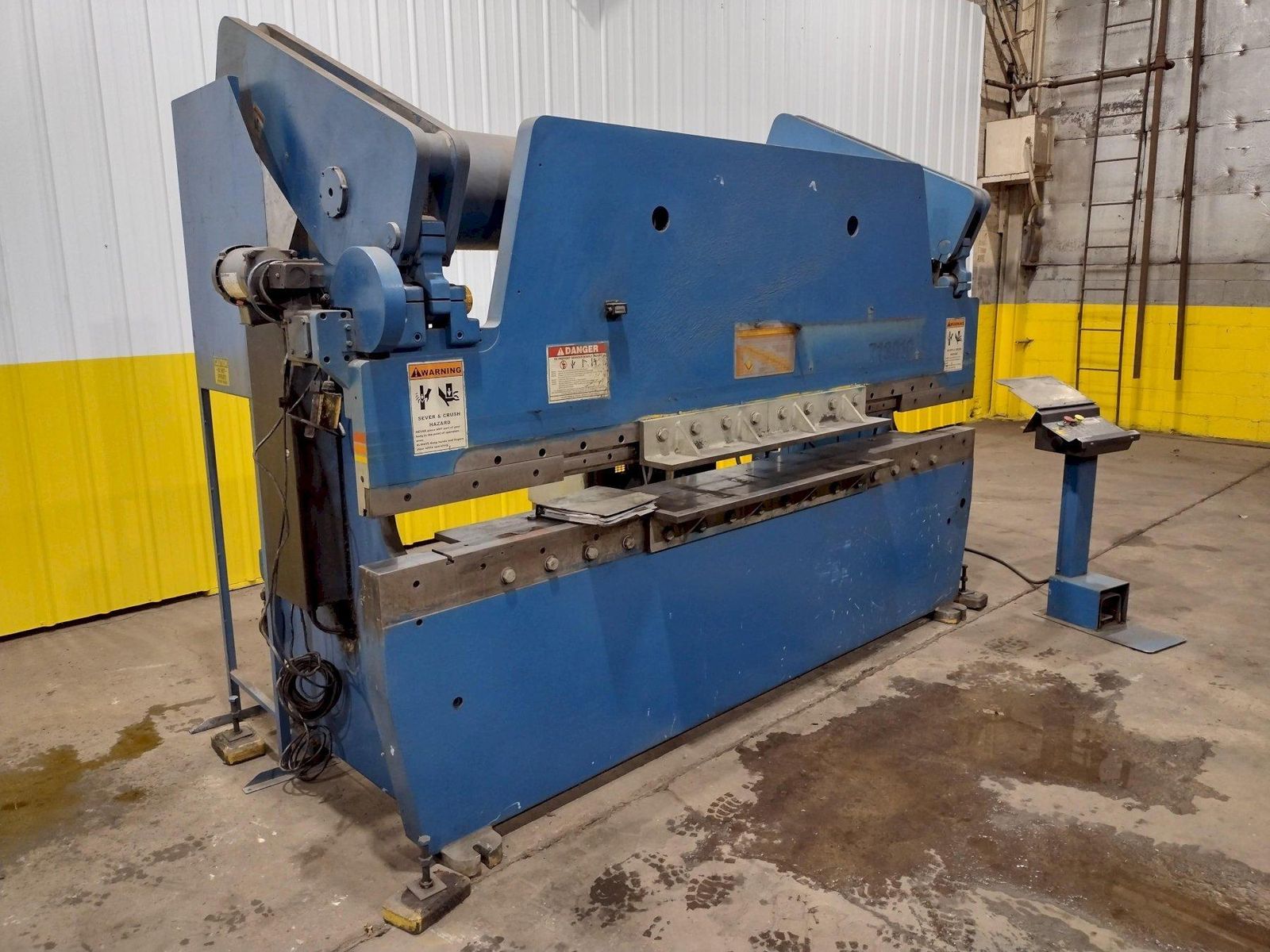

Stock #: 19301
SERIAL ................... 9155
NEW ...................... 11/2006
MODEL .................... 713010
CAPACITY ................. 130 TON
BED & RAM BED LENGTH ..... 10'
Distance Between FRAMES .. 98″Length of Ram Stroke ..... 8″Open Height .............. 14″Closed Height ............ 6″Throat Depth ............. 10″
BED HEIGHT ............... 34"
BED WIDTH ................ 5"
CONTROL .................. ACCURPRESS ETS
SPEED, APPROACH .......... 76 IPM
SPEED, BEND .............. 28 IPM
SPEED, RETURN ............ 160 IPM
MAIN MOTOR ............... 20 HP
Stock # 19301
SERIAL ................... 9155
NEW ...................... 11/2006
MODEL .................... 713010
CAPACITY ................. 130 TON
BED & RAM BED LENGTH ..... 10'
Distance Between FRAMES .. 98″
Length of Ram Stroke ..... 8″
Open Height .............. 14″
Closed Height ............ 6″
Throat Depth ............. 10″
BED HEIGHT ............... 34"
BED WIDTH ................ 5"
CONTROL .................. ACCURPRESS ETS
SPEED, APPROACH .......... 76 IPM
SPEED, BEND .............. 28 IPM
SPEED, RETURN ............ 160 IPM
MAIN MOTOR ............... 20 HP
| Specifications | ||
|---|---|---|
| Dimensions | 126" X 48" X 84" H | |
| Weight | 13500 pounds | |
