24 STAND X 2" X 18" DAHLSTROM RAFTED U-JOINT DRIVE ROLLFORMER: STOCK #10331

Stock #: 10331

Equipped With

SERIAL: 1369
MODEL: 400-24 UD
NUMBER OF STANDS: 24
ARBOR DIAMETER: 2"
MAX ROLL WIDTH: 18"
ROLL PITCH DIAMETERS: 4"-9"
KEYWAY: 3/8" X 3/16"
HORIZONTAL CENTER DISTANCE BETWEEN SPINDLES: 15-3/4"
STATIONS 1-16: EQUAL
STATIONS 17-24: UNEQUAL
PASSLINE FLOOR (STEEL TO STELL W/O GROUT) TO UNDER SIDE OF SECTION LAST STATION: 40"
SPEEDS: 10-40 FPM
AC VECTOR MOTOR: 20HP / 230/460V / 3PH / 60HZ

CONSISTING OF:

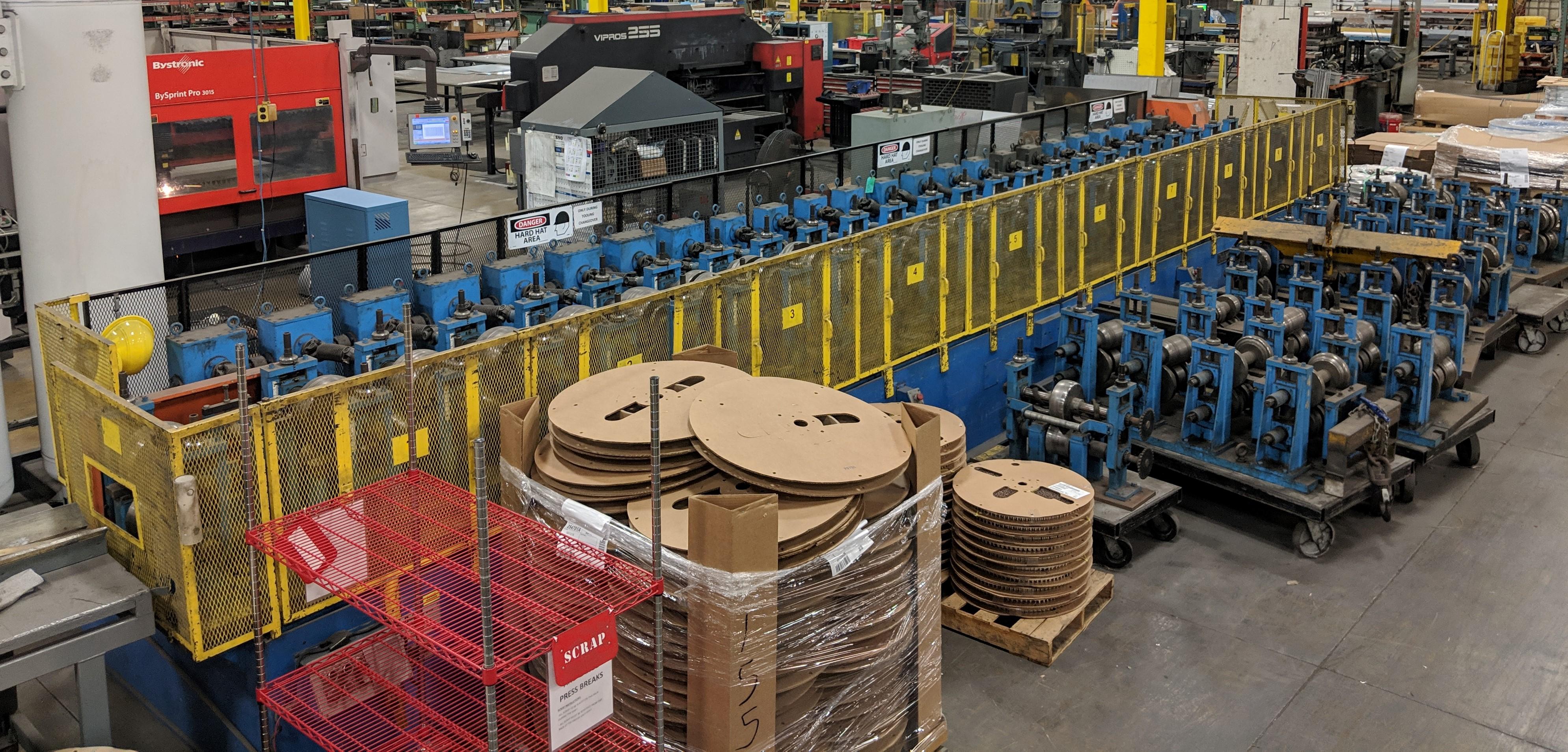

24 RAFTED STATIONS WITH 24 ADDITIONAL RAFTED STATIONS (ON CARTS)
U JOINT DRIVE GEAR BOXES
MICROMETER DIAL TYPE ADJUSTMENT OF UPPER SHAFT

Buy Machines

24 STAND X 2" X 18" DAHLSTROM RAFTED U-JOINT DRIVE ROLLFORMER: STOCK #10331

Stock # 10331

Share Machine
Print Details

Machine Specifications

SERIAL: 1369
MODEL: 400-24 UD
NUMBER OF STANDS: 24
ARBOR DIAMETER: 2"
MAX ROLL WIDTH: 18"
ROLL PITCH DIAMETERS: 4"-9"
KEYWAY: 3/8" X 3/16"
HORIZONTAL CENTER DISTANCE BETWEEN SPINDLES: 15-3/4"
STATIONS 1-16: EQUAL
STATIONS 17-24: UNEQUAL
PASSLINE FLOOR (STEEL TO STELL W/O GROUT) TO UNDER SIDE OF SECTION LAST STATION: 40"
SPEEDS: 10-40 FPM
AC VECTOR MOTOR: 20HP / 230/460V / 3PH / 60HZ

CONSISTING OF:
24 RAFTED STATIONS WITH 24 ADDITIONAL RAFTED STATIONS (ON CARTS)
U JOINT DRIVE GEAR BOXES
MICROMETER DIAL TYPE ADJUSTMENT OF UPPER SHAFT

Specifications
Number of Stands 24
Diameter of Arbor 2 inches
Power 20 horsepower
Horiz Centers 15.75 inches
