Machine Information

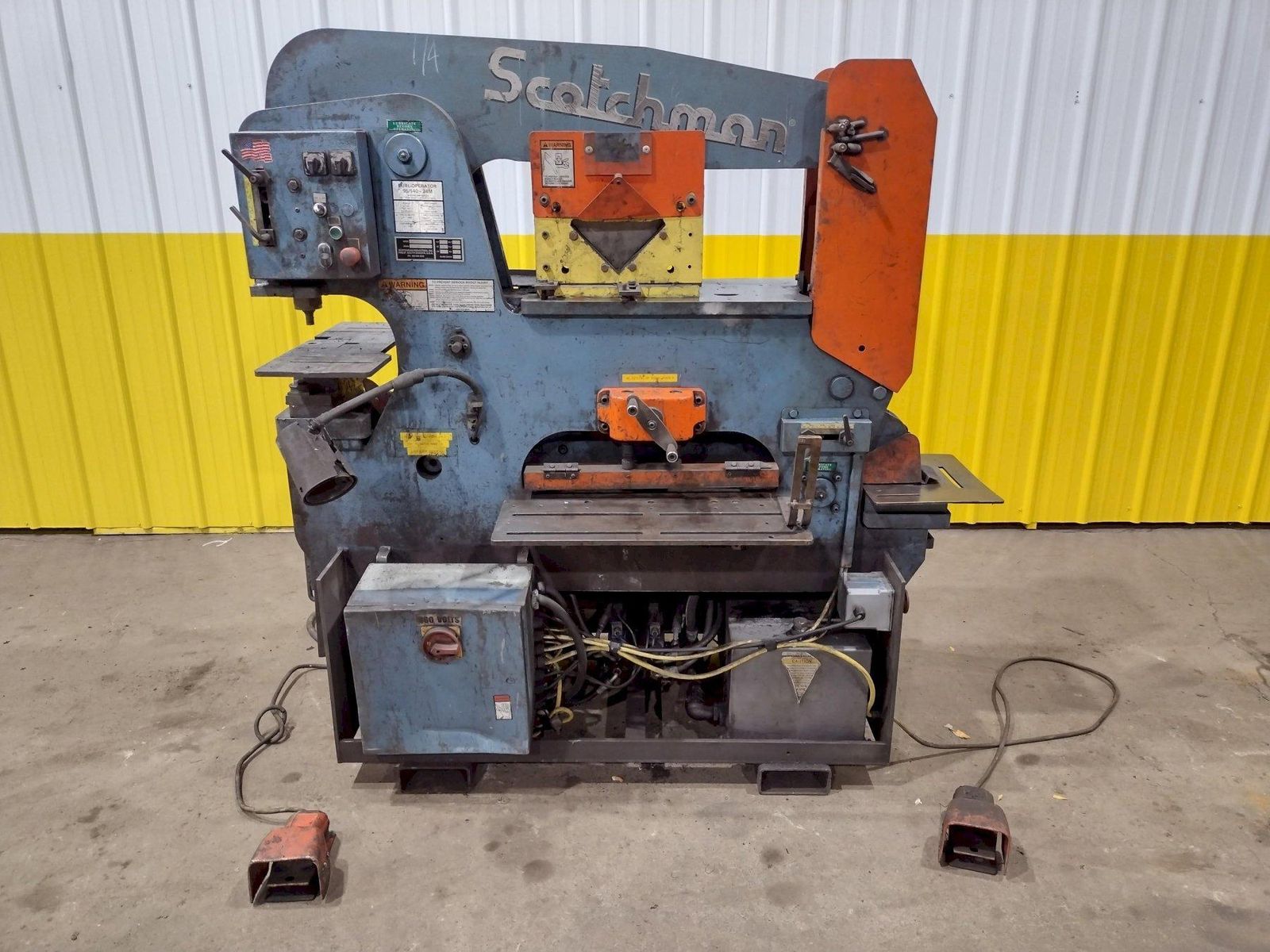

95 TON SCOTCHMAN MODEL #95/140-24M DUAL OPERATOR HYDRAULIC IRONWORKER: STOCK #19297

Stock #: 19297

Equipped With

SERIAL 1645M1113
MODEL D095/140-24M

Punching Capacity: 95 ton 1-3/16" in 1"
Throat Depth: 9"
Flat Bar Shear 24" Length
Shear Capacity: 1" x 8"; 3/4" x 12"; 1/2" x 16"; 3/8" x 24"
Angle Shear 90 degree: 6" x 6" x 1/2"
Angle Shear 45 degree w/Tool: 3" x 3" x 3/8"
Angle Shear 45 degree w/Bar Shear: 4" x 4" x 1/2"
Brake 12": 80 ton
Brake 24": 55 ton
Open End Brake: Max. 1/4" x 5" [Flat or Angle Iron]
Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher: 3" x 5" x 3/8"; 3" x 4" x 1/2"
90 degree V-Notcher: 6" x 6" x 5/16"; 3" x 3" x 3/8"
Notching in Leg of Channel: 6" to 10"
Channel Shear: 2" to 6" adj.
Rod Shear Round (max.): 9 Cavity - 1/4" to 1-1/4"
Rod Shear Square (max.): 1 Cavity - 1/4" to 1"
Square Tube Shear: 1/2" to 2" 12 gauge
Picket Tool: 1/2", 3/4", 1" 16 gauge
Weld Coupon Bender (max.): 2" wide x 3/8"
Offset Die Holder: Max. 40 ton
Strokes per Minute in Light Material: 38 spm [Punch Station] 1/4" Stroke
Strokes per Minute in Heavy Material: 15 spm [Punch Station] 3/4" Stroke
Hydraulics: 3,500/3,500 psi
Motor: 10 HP
