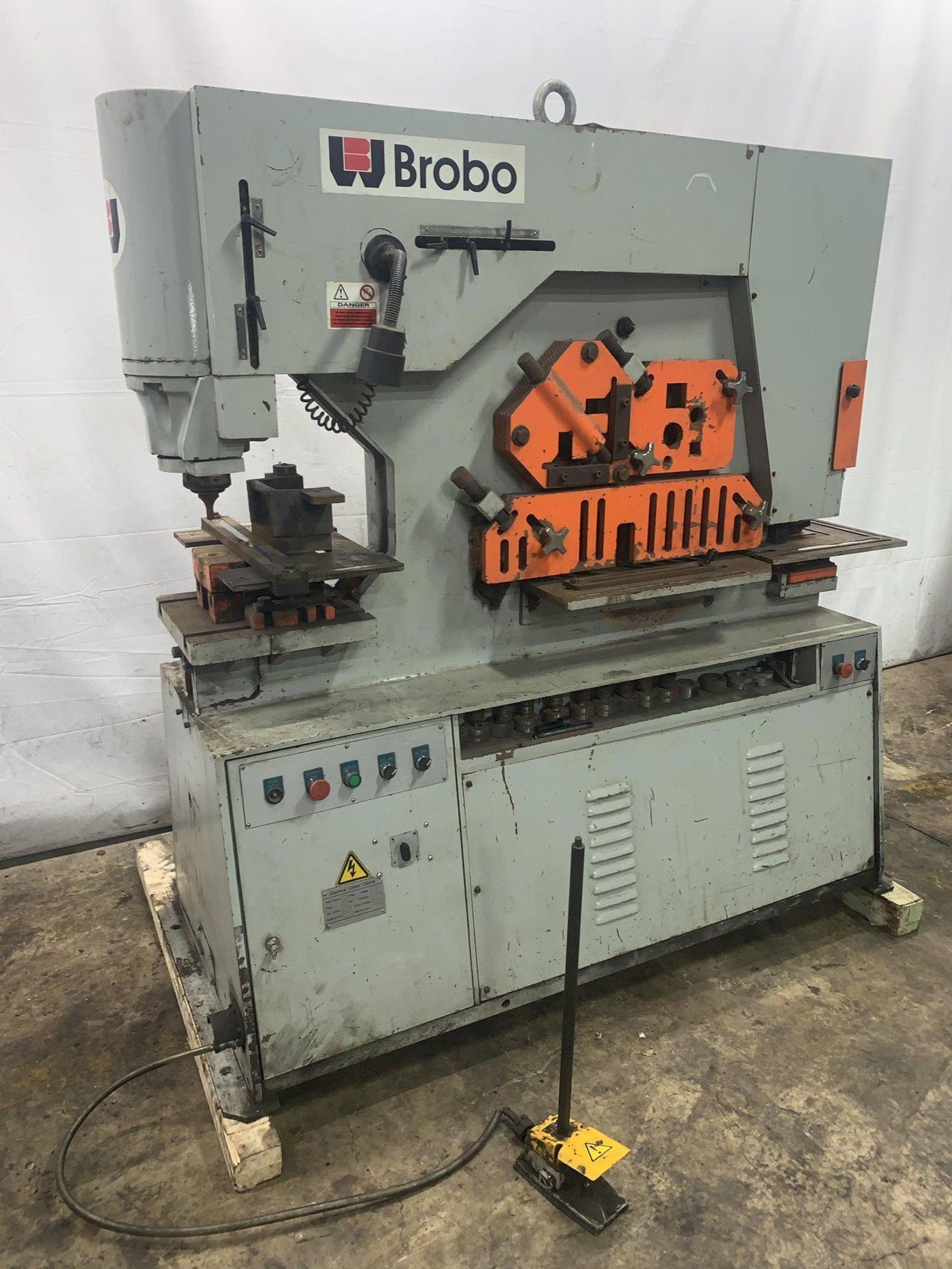

90 TON BROBO HYDRAULIC IRONWORKER: STOCK #12174

Stock #: 12174

Equipped With

SERIAL ........................ 12354
MODEL ......................... 9014
CAPACITY ...................... 90 TON
PUNCH THICKNESS ............... 1" MAXIMUM
PUNCH DIAMETER ................ 1-1/8" MAXIMUM
THROAT DEPTH .................. 14"
STROKE ........................ 3-1/8" MAXIMUM
SPEED @ 3/4" STROKE ........... 26 SPM
FLAT SHEAR .................... 3/4" x 12"
FLAT BAR SHEAR ................ 18" MAXIMUM WIDTH
SHEAR, ROUNDS ................. 2"
SHEAR, SQUARES ................ 2"
SHEAR, CHANNEL ................ 6"
SHEAR, ANGLES ................. 5" x 5" x 1/2" AT 90 DEGREES
SHEAR, ANGLES
................. 2" x 2" x 1/4" AT 45 DEGREES
NOTCHING ......................
1/2" x 2-1/4" x 4"
MOTOR ......................... 7.5 KW


Buy Machines

90 TON BROBO HYDRAULIC IRONWORKER: STOCK #12174

Stock # 12174

Share Machine
Print Details

Machine Specifications

SERIAL ........................ 12354
MODEL ......................... 9014
CAPACITY ...................... 90 TON
PUNCH THICKNESS ............... 1" MAXIMUM
PUNCH DIAMETER ................ 1-1/8" MAXIMUM
THROAT DEPTH .................. 14"
STROKE ........................ 3-1/8" MAXIMUM
SPEED @ 3/4" STROKE ........... 26 SPM
FLAT SHEAR .................... 3/4" x 12"
FLAT BAR SHEAR ................ 18" MAXIMUM WIDTH
SHEAR, ROUNDS ................. 2"
SHEAR, SQUARES ................ 2"
SHEAR, CHANNEL ................ 6"
SHEAR, ANGLES ................. 5" x 5" x 1/2" AT 90 DEGREES
SHEAR, ANGLES
................. 2" x 2" x 1/4" AT 45 DEGREES
NOTCHING ......................
1/2" x 2-1/4" x 4"
MOTOR ......................... 7.5 KW


Specifications
Angle (L1) 5 inches
Angle (L2) 5 inches
Angle (T) .5 inches
Tonnage 90 tons
Power 7.5 kilowatts
Throat 14 inches
Stroke 3.25 inches
Dimensions 74" x 32" x 75" high
Weight 5260 pounds
