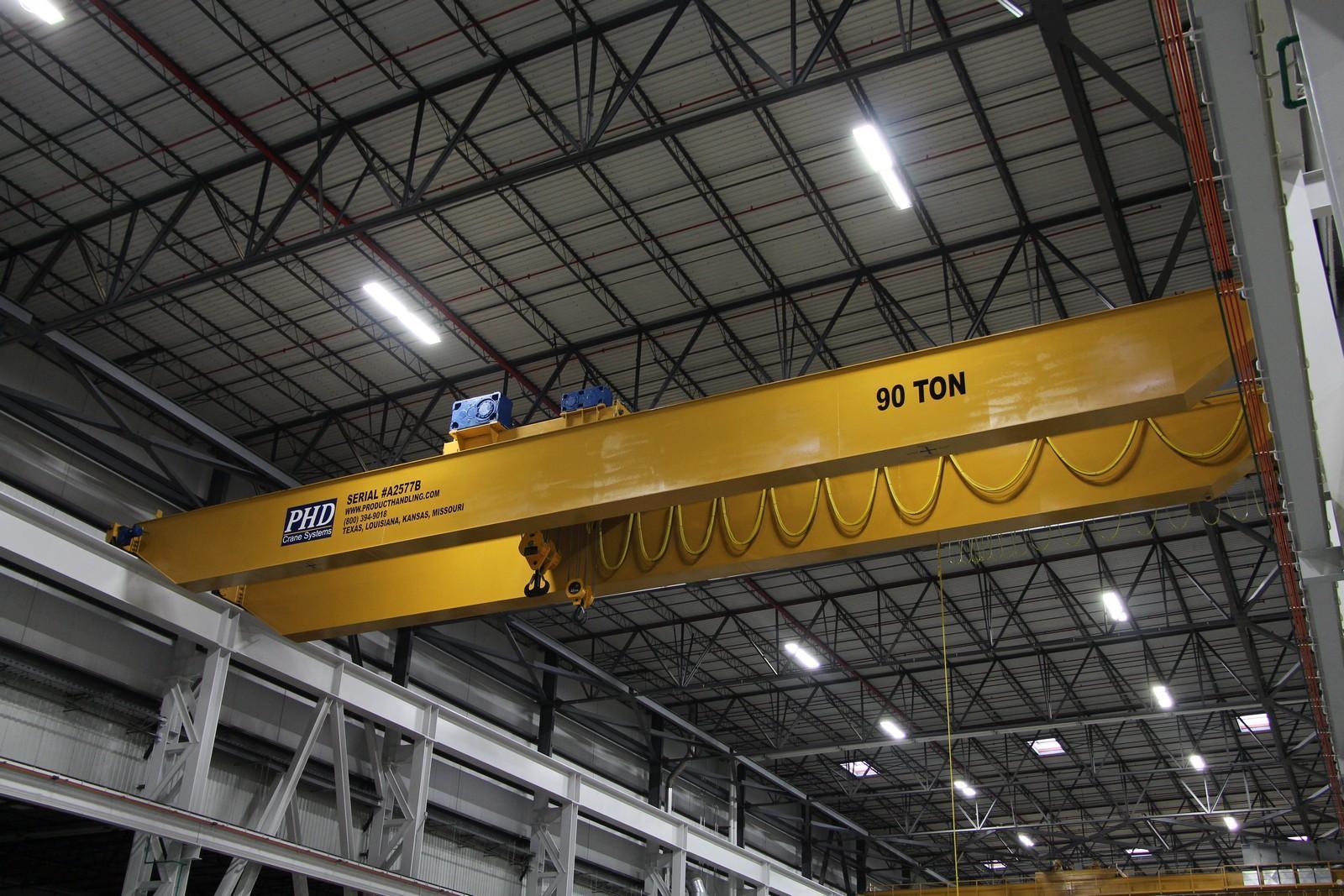

90/45 X 82'X 40' LIFT PHD 8 WHEEL OVERHEAD BRIDGE CRANE: STOCK #12672

Stock #: 12672

Equipped With

SERIAL ...................... A2577C

YEAR ........................ 2011

CRANE CLASS ................. C

CAPACITY MAIN HOIST ......... 90 TON

CAPACITY AUX HOIST .......... 45 TON

BRIDGE SPAN ................. 82'

LIFT HEIGHT ................. 40'

TROLLEY TYPE ................ BUILT-UP

HOIST TYPE (MAIN HOOK) ...... PHD MILL MASTER WINCH

HOIST TYPE (AUX HOOK) ....... PACKAGED TYPE HOIST

RAIL SIZE ................... 85 LBS

MOTOR ....................... 480V / 3PH / 60HZ



REMOTE CONTROL W/ PENDANT BACKUP



WHEEL LOAD MAX .............. R1=55,800 LBS, R2=58,900 LBS

                              R3=58,980 LBS & R4=56,125 LBS



SPEEDS:

BRIDGE ...................... 200 FPM / 7.5 HP

TROLLEY ..................... 135 FPM / 7.5 HP

Buy Machines

90/45 X 82'X 40' LIFT PHD 8 WHEEL OVERHEAD BRIDGE CRANE: STOCK #12672

Stock # 12672

Share Machine
Print Details

Machine Specifications

SERIAL ...................... A2577C

YEAR ........................ 2011

CRANE CLASS ................. C

CAPACITY MAIN HOIST ......... 90 TON

CAPACITY AUX HOIST .......... 45 TON

BRIDGE SPAN ................. 82'

LIFT HEIGHT ................. 40'

TROLLEY TYPE ................ BUILT-UP

HOIST TYPE (MAIN HOOK) ...... PHD MILL MASTER WINCH

HOIST TYPE (AUX HOOK) ....... PACKAGED TYPE HOIST

RAIL SIZE ................... 85 LBS

MOTOR ....................... 480V / 3PH / 60HZ



REMOTE CONTROL W/ PENDANT BACKUP



WHEEL LOAD MAX .............. R1=55,800 LBS, R2=58,900 LBS

                              R3=58,980 LBS & R4=56,125 LBS



SPEEDS:

BRIDGE ...................... 200 FPM / 7.5 HP

TROLLEY ..................... 135 FPM / 7.5 HP
