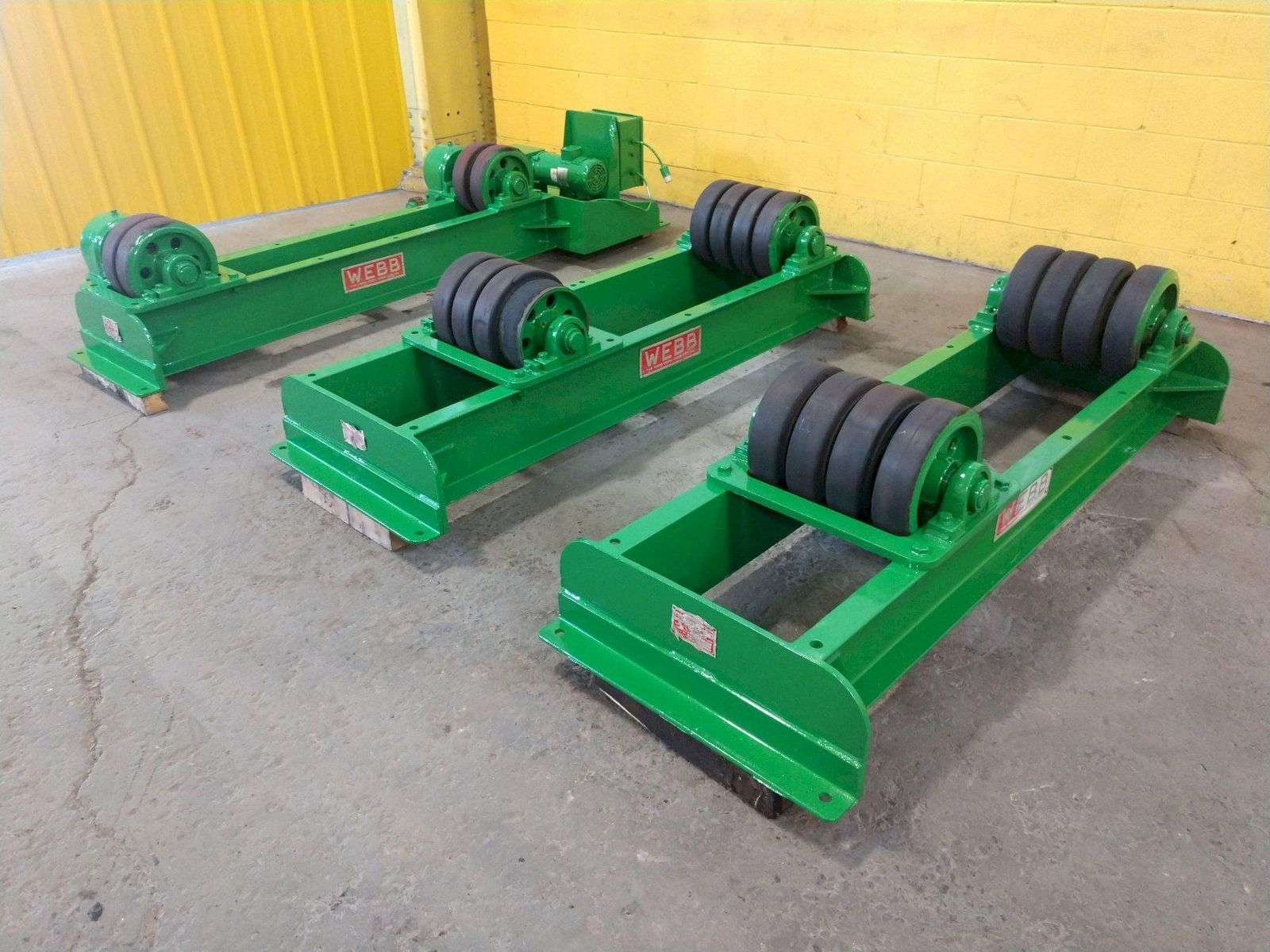

DRIVE ROLL:
SERIAL 2011 168
MODEL T6-PWR
CAPCITY 6000 LBS
SPEED RANGE 0 TO 40 IPM
WHEEL FACE 6" WIDE
TIRES 2 PER AXLE
TIRE DIAMETER 10"
WHEEL CENTER SPACING 12, 24, 36, 48"
IDLER ROLLS - 2
SERIAL 2011 027 / 2011 176
MODEL T30-IDL
CAPACITY 10,000 LB EACH
WHEEL FACE 14"
TIRES 4 PER AXLE
TIRE DIAMETER 12"
| Specifications | ||
|---|---|---|
| Dimensions | Drive: 115” x 30” x 24” high Idlers: 100” x 30” x 24” high each | |
| Weight | 2300 pounds | |
Brand
WEBB
Type
Rolls, Power Tank Turning
Stock No.
13566
 |
419-269-2000 |
Stock #: 13566
DRIVE ROLL:
SERIAL 2011 168
MODEL T6-PWR
CAPCITY 6000 LBS
SPEED RANGE 0 TO 40 IPM
WHEEL FACE 6" WIDE
TIRES 2 PER AXLE
TIRE DIAMETER 10"
WHEEL CENTER SPACING 12, 24, 36, 48"
IDLER ROLLS - 2
SERIAL 2011 027 / 2011 176
MODEL T30-IDL
CAPACITY 10,000 LB EACH
WHEEL FACE 14"
TIRES 4 PER AXLE
TIRE DIAMETER 12"
