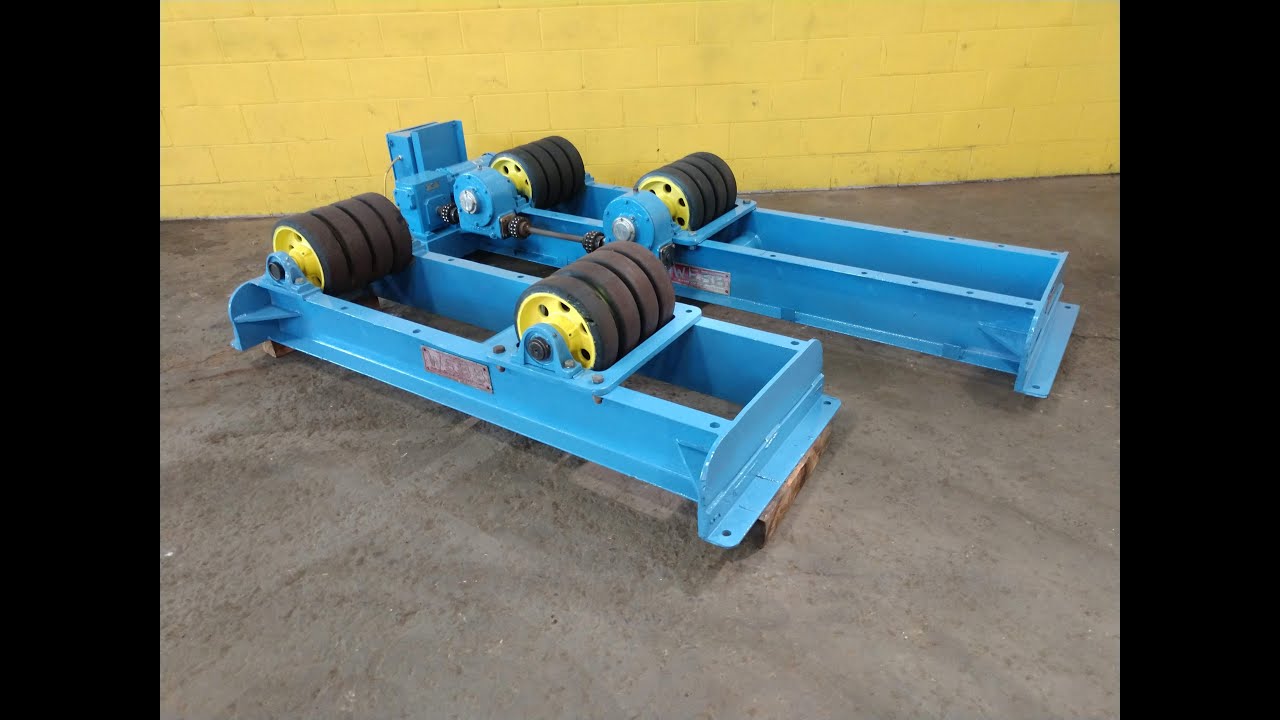

10 TON / 20,000 LBS LBS WEBB POWERED TANK TURNING ROLLS, SET WITH DRIVE & IDLER: STOCK #13556

Stock #: 13556

Equipped With

SERIAL ...................... 2010-075
MODEL ....................... T30 16
CAPACITY DRIVE & IDLER ...... 20,000 LB (10 TON)
CAPACITY DRIVE .............. 10,000 LB (5 TON)
CAPACITY IDLER .............. 10,000 LB (5 TON)



MINIMUM TANK DIAMETER ....... 12"


MAXIMUM TANK DIAMETER ....... 144" (12')


DIAMETER OF WHEEL ........... 12"


WIDTH OF WHEELS ............. (4) @ 3-1/2"


OVERALL WHEEL WIDTH ......... 14"


SPEED ....................... CONSTANT


FORWARD & REVERSING ......... YES


PENDANT CONTROL ............. YES


WHEELS ...................... RUBBER


MOTOR ....................... 1 HORSEPOWER
