Machine Information

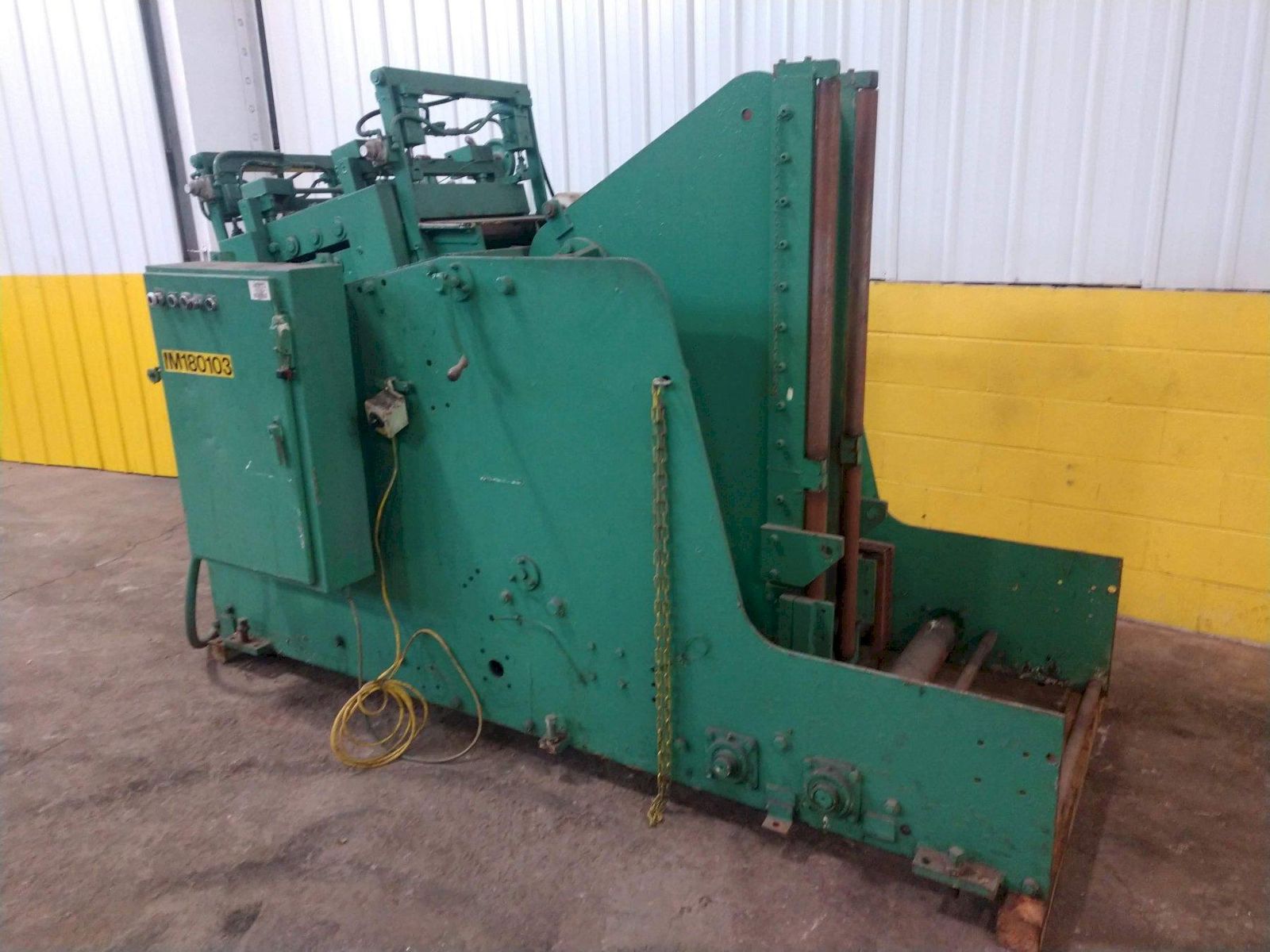

8,000 LB X 20" WIDE X .175" ROWE MODEL #C20HD-C8000J COIL CRADLE 7 ROLL STRAIGHTENER COMBINATION UNCOILER: STOCK #13906

Stock #: 13906

Equipped With

SERIAL ..................................... 16446
MODEL ...................................... C20HD-C8000J
MAX CAPACITY ............................... 8,000 LBS
MAX WIDTH OF COIL .......................... 20"
MAX COIL DIAMETER .......................... 60"
MAX THICKNESS CAPACITY @ FULL WIDTH ........ .175"

ROWE EQUIPMENT & FEATURES:
NUMBER OF ROLLS ............................ 7
DIAMETER OF ROLLS .......................... 3.5"
BANK TYPE UPPER ROLL ADJ ................... YES
ENTY & EXIT PINCH ROLLS .................... 3.5" DIAMETER
AIR OPERATED UPPER PINCH ROLL ADJ .......... YES
HEAVY DUTY STOCK WIDTH EDGE GUIDES ......... YES
DUAL ADJUSTABLE SIDE PLATES ................ YES
NESTING ROLLS .............................. YES
NEW VAR FREQUENCY DRIVE .................... 240V OR 480V
DYNAMIC BRAKING RESISTORS .................. YES
VARI SPEED PAYOUT .......................... YES
JOG FORWARD & REVERSE ...................... REMOTE PENDANT
AUTO/RUN CYCLE ............................. YES
LOOP CONTROL ............................... YES

Buy Machines

8,000 LB X 20" WIDE X .175" ROWE MODEL #C20HD-C8000J COIL CRADLE 7 ROLL STRAIGHTENER COMBINATION UNCOILER: STOCK #13906

Stock # 13906

Share Machine
Print Details

Machine Specifications

SERIAL ..................................... 16446
MODEL ...................................... C20HD-C8000J
MAX CAPACITY ............................... 8,000 LBS
MAX WIDTH OF COIL .......................... 20"
MAX COIL DIAMETER .......................... 60"
MAX THICKNESS CAPACITY @ FULL WIDTH ........ .175"

ROWE EQUIPMENT & FEATURES:
NUMBER OF ROLLS ............................ 7
DIAMETER OF ROLLS .......................... 3.5"
BANK TYPE UPPER ROLL ADJ ................... YES
ENTY & EXIT PINCH ROLLS .................... 3.5" DIAMETER
AIR OPERATED UPPER PINCH ROLL ADJ .......... YES
HEAVY DUTY STOCK WIDTH EDGE GUIDES ......... YES
DUAL ADJUSTABLE SIDE PLATES ................ YES
NESTING ROLLS .............................. YES
NEW VAR FREQUENCY DRIVE .................... 240V OR 480V
DYNAMIC BRAKING RESISTORS .................. YES
VARI SPEED PAYOUT .......................... YES
JOG FORWARD & REVERSE ...................... REMOTE PENDANT
AUTO/RUN CYCLE ............................. YES
LOOP CONTROL ............................... YES
