SERIAL ........................ 90-800-4187

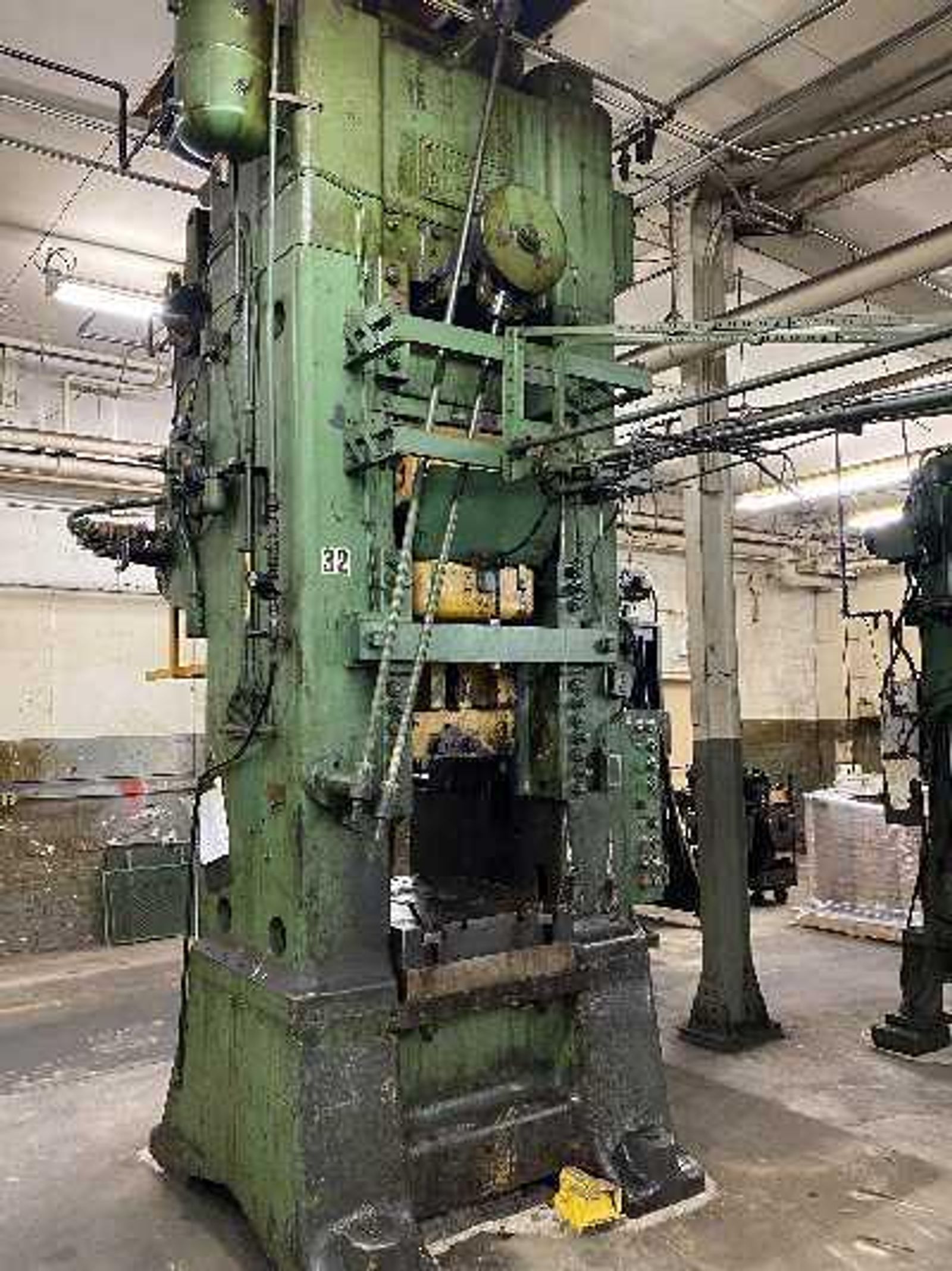

MODEL ......................... 800 TON KNUCKLE JOINT
CAPACITY ...................... 800 TONS
BED SIZE ...................... 26" X 36"
RAM SIZE ...................... 18" X 21"
STROKE ........................ 7"
SHUT HEIGHT ................... 19-1/8"
RAM ADJUSTMENT ................ 1/2"
STROKES PER MINUTE ............ 30
BOLSTER ....................... 5" HAS 4" PLATE UNDER MAKING 9" TOTAL
FLOOR TO OP OF BED ............ 32" (40" TO TOP OF BOLSTER WITH PLATE)
KNOCK SLOT IN RAM ............. YES
KNOCK OUT IN BED .............. YES
INCH AND SINGLE STROKE ........ YES
ELECTRIC FOOT TRIP ............ YES
MAIN MOTOR .................... 15 HORSEPOWER
Brand
MINSTER
Type
Presses, Knuckle Joint
Stock No.
19697
 |
419-269-2000 |
Stock #: 19697
SERIAL ........................ 90-800-4187
MODEL ......................... 800 TON KNUCKLE JOINT
CAPACITY ...................... 800 TONS
BED SIZE ...................... 26" X 36"
RAM SIZE ...................... 18" X 21"
STROKE ........................ 7"
SHUT HEIGHT ................... 19-1/8"
RAM ADJUSTMENT ................ 1/2"
STROKES PER MINUTE ............ 30
BOLSTER ....................... 5" HAS 4" PLATE UNDER MAKING 9" TOTAL
FLOOR TO OP OF BED ............ 32" (40" TO TOP OF BOLSTER WITH PLATE)
KNOCK SLOT IN RAM ............. YES
KNOCK OUT IN BED .............. YES
INCH AND SINGLE STROKE ........ YES
ELECTRIC FOOT TRIP ............ YES
MAIN MOTOR .................... 15 HORSEPOWER
