Machine Information

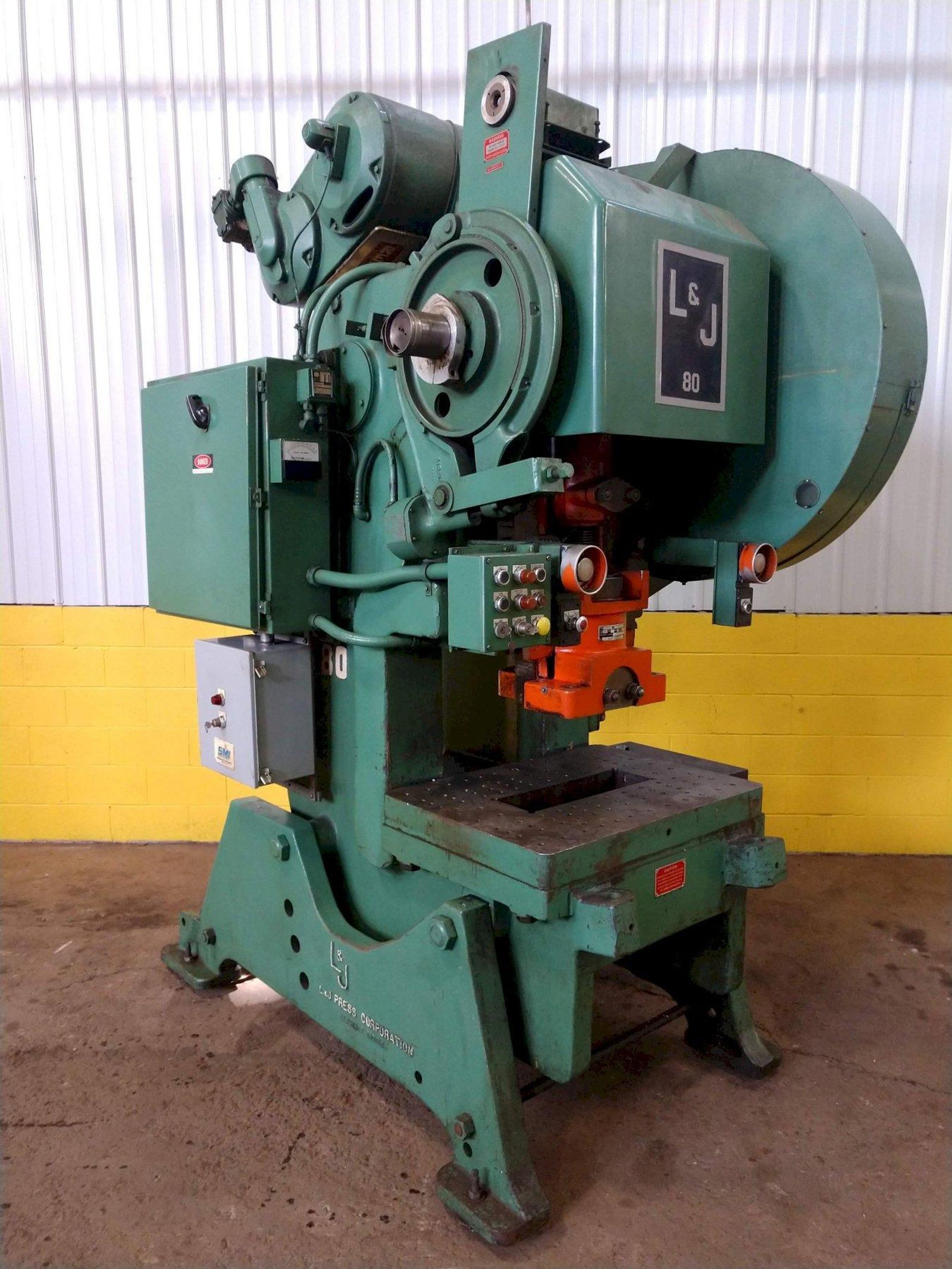

80 TON L & J MODEL #80 OBI PRESS: STOCK #12977

Stock #: 12977

Equipped With

SERIAL ......................... 78252A
MODEL .......................... 80
CAPACITY ....................... 80 TONS
STROKE ......................... 3"
SHUT HEIGHT .................... 16"
SLIDE ADJUSTMENT ............... 4"
STROKES PER MINUTE ............. 0 TO 180 SPM
SLIDE AREA ..................... 36" LR X 26" FB
BED AREA ....................... 36" LR X 26" FB
BED BOLSTER THICKNESS .......... 3-1/2"
SLUG HOLE IN BOLSTER ........... 6" X 19-1/2"
REEVES MOTOR DRIVE ............. YES
DUAL PALM BUTTONS .............. YES
AIR CLUTCH AND BRAKE ........... YES
INCH/SINGLE & CONTINUOUS ....... YES
CENTRAL LUBE SYSTEM ............ YES
TOP STOP ....................... YES
E-STOP ......................... YES

MOTOR .......................... 10 HP
