Overview

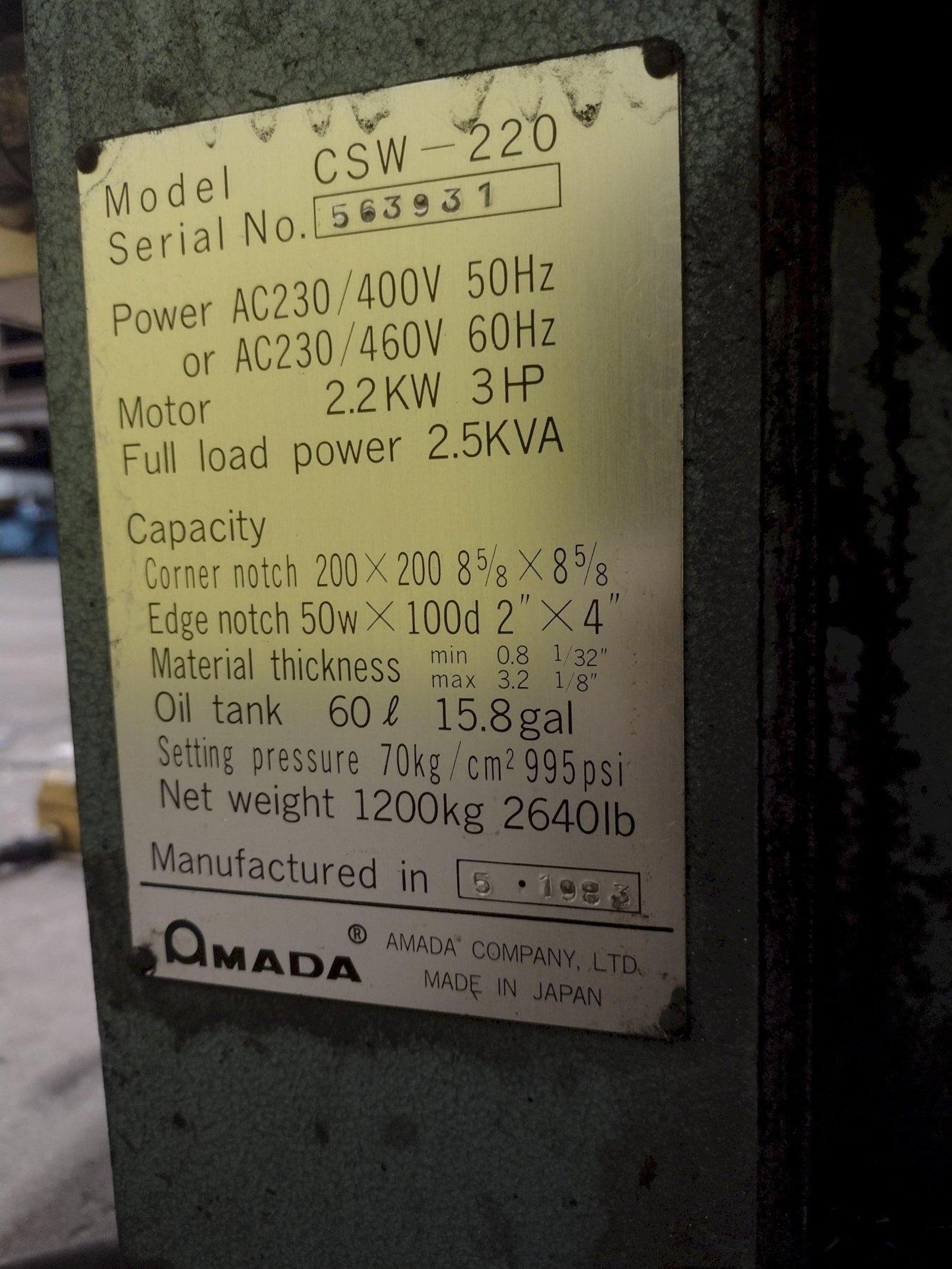

SERIAL ..................... 563931

MODEL ...................... CS220

YEAR NEW ................... 1983

NOTCHING CAPACITY .......... 8-5/8" X 8-5/8"

MAXIMUM PLATE THICKNESS .... 1/8"

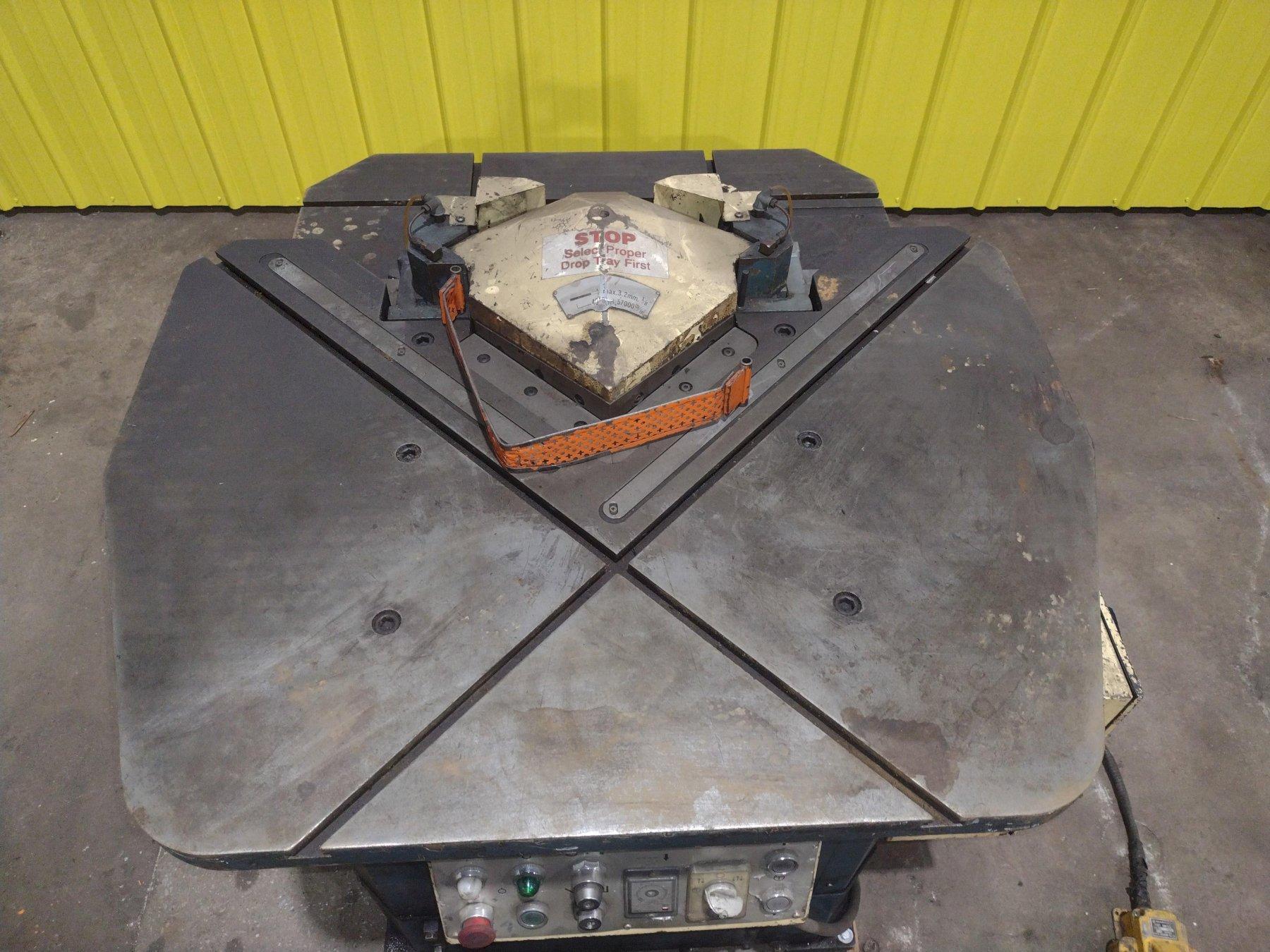

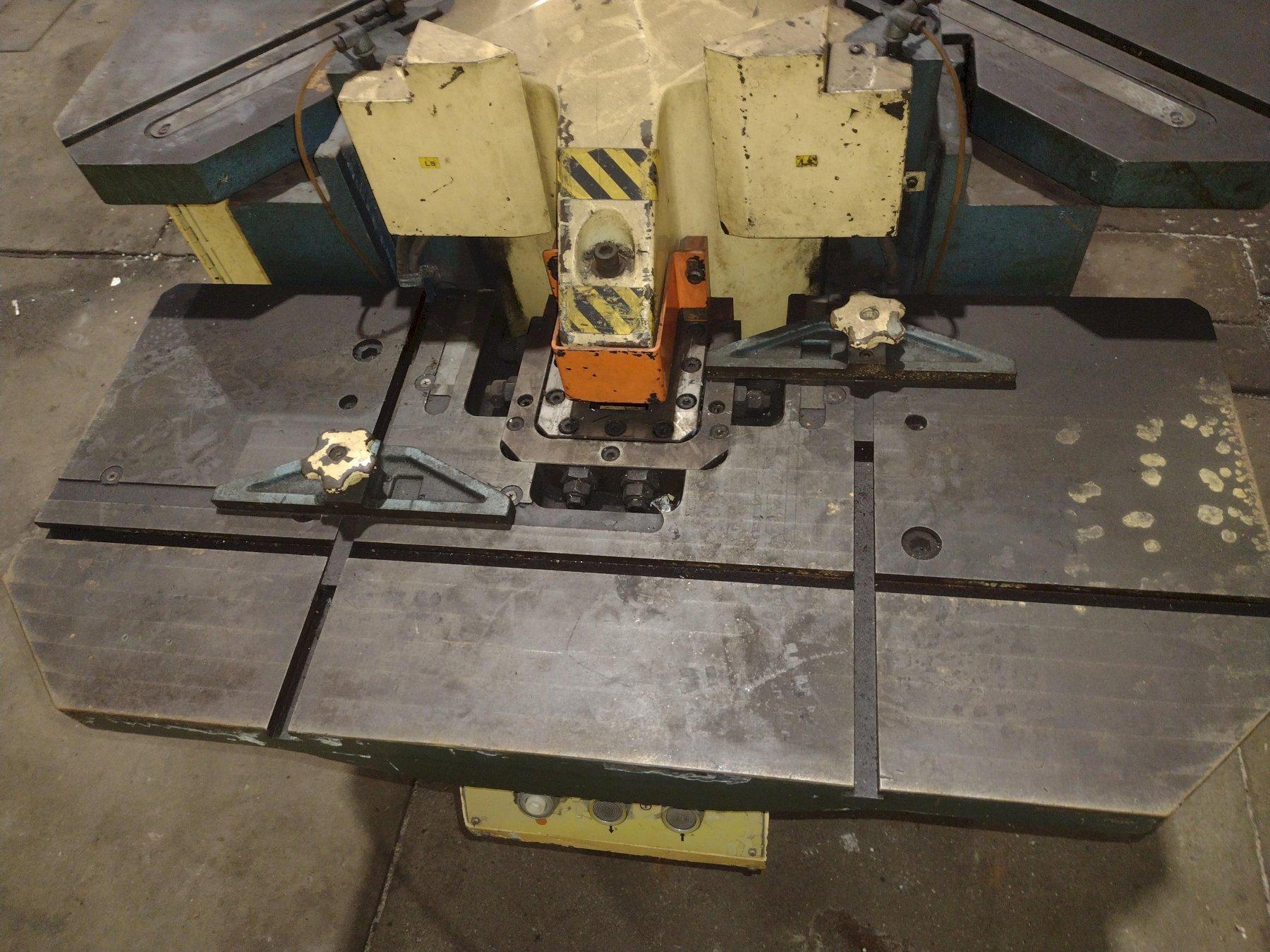

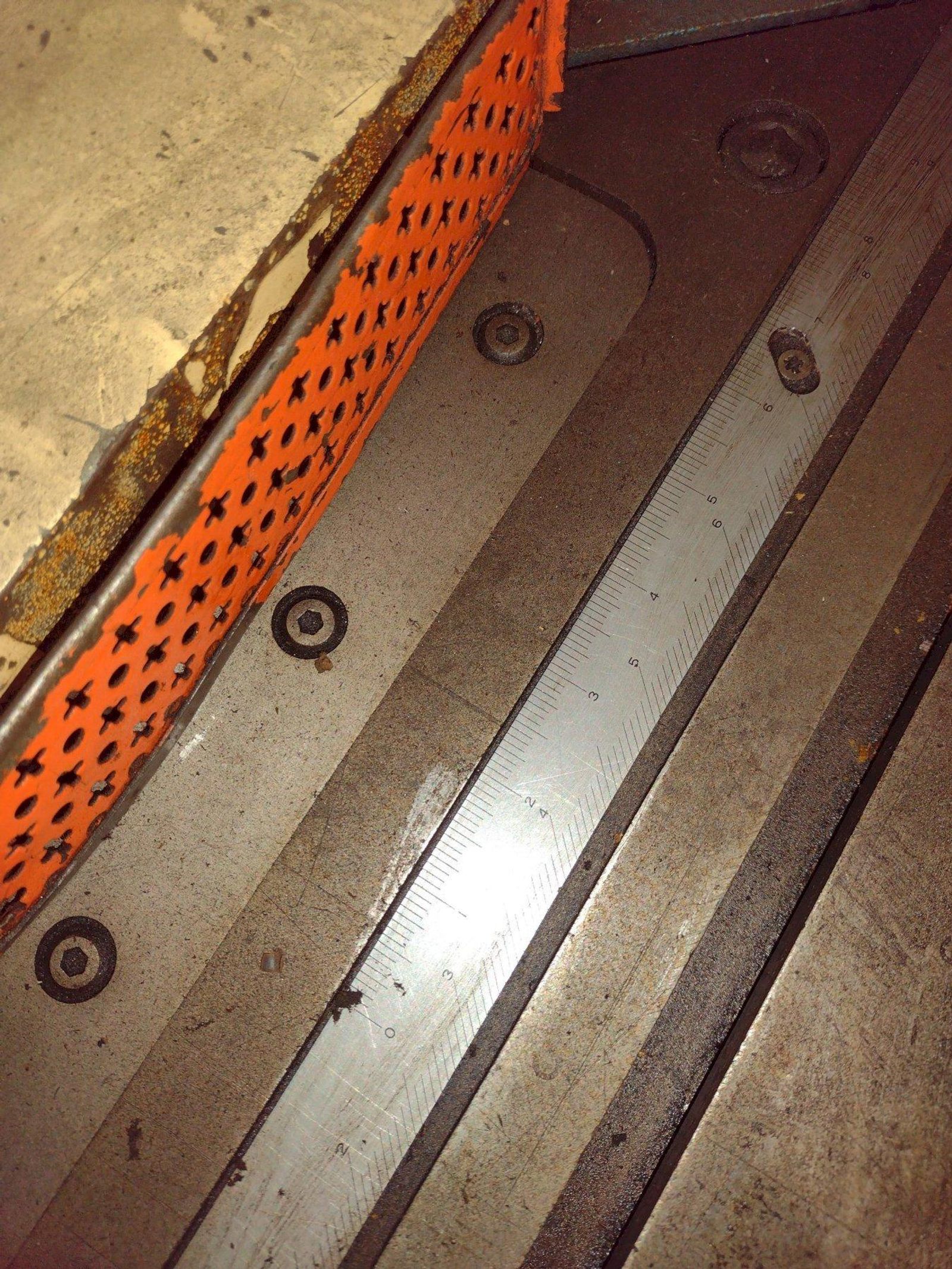

NOTCHING TABLE ............. 32" X 36"

COPING CAPACITY ............ 2" X 4"

COPER TABLE ................ 17" X 38"

RAM STROKE ................. 7/8"

STROKERS PER MINUTE ........ 36

RATED CAPACITY ............. 10 TON

HEIGHT OF TABLE ............ 36-1/2"

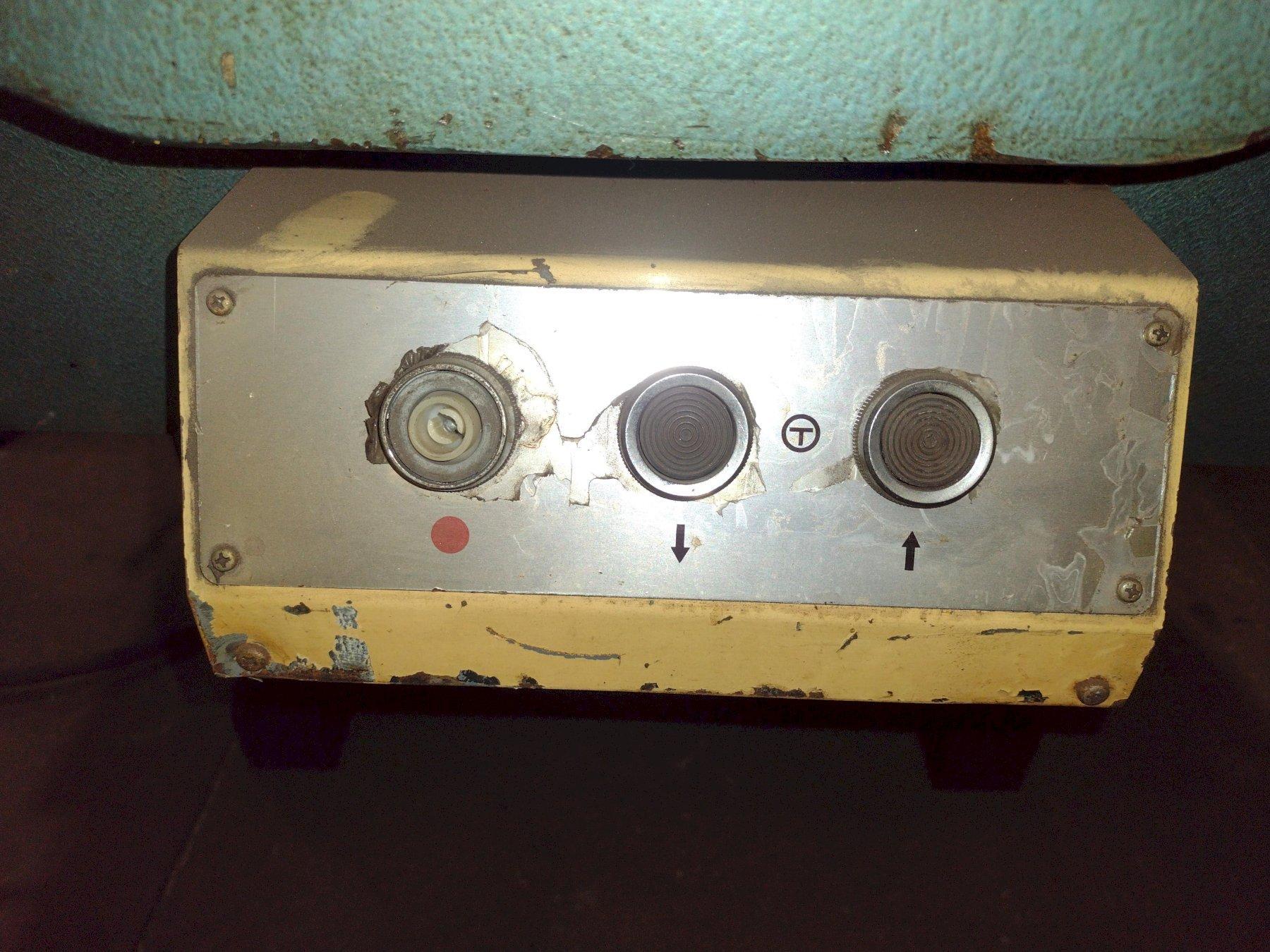

FOOT PEDAL ................. YES

MOTOR ...................... 3 HP

Specifications
Max Thickness of Workpiece	.125 inches
Max Thickness of Workpiece (gauge)	8
Stock Dimension	8.75 inches
Stock Dimension	8.75 inches
Dimensions	36 X 36 X 48
Weight	1900 pounds

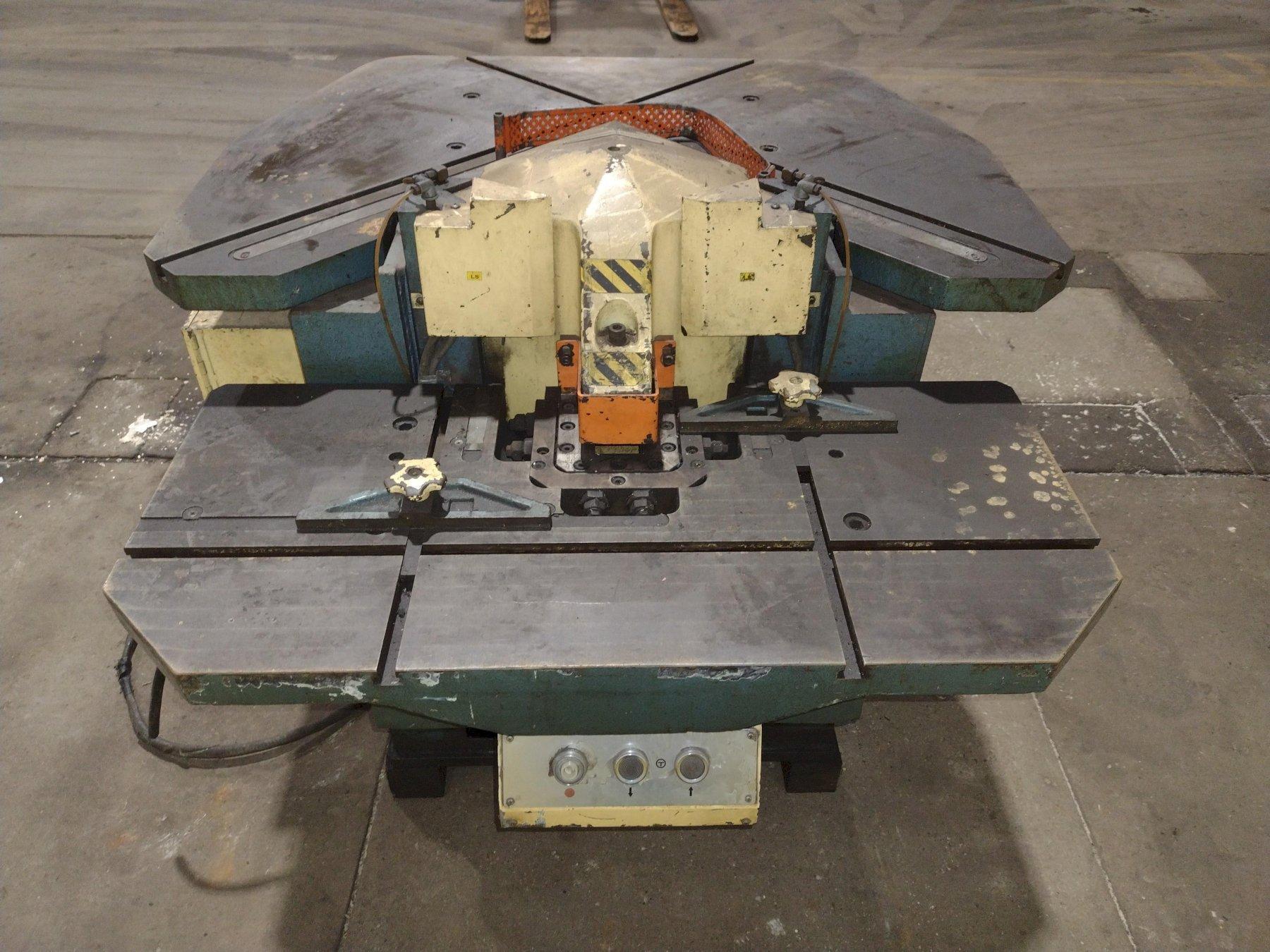

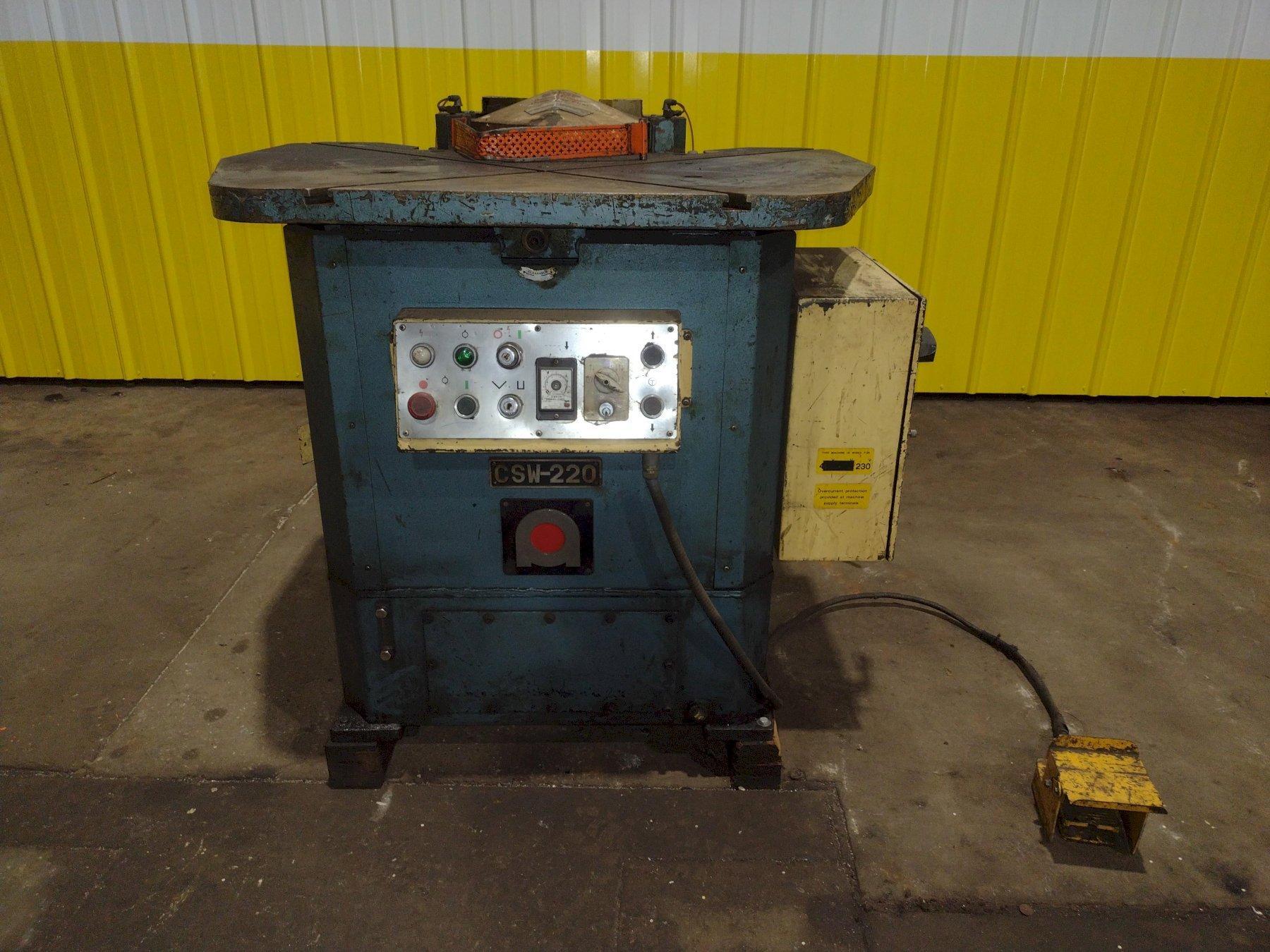

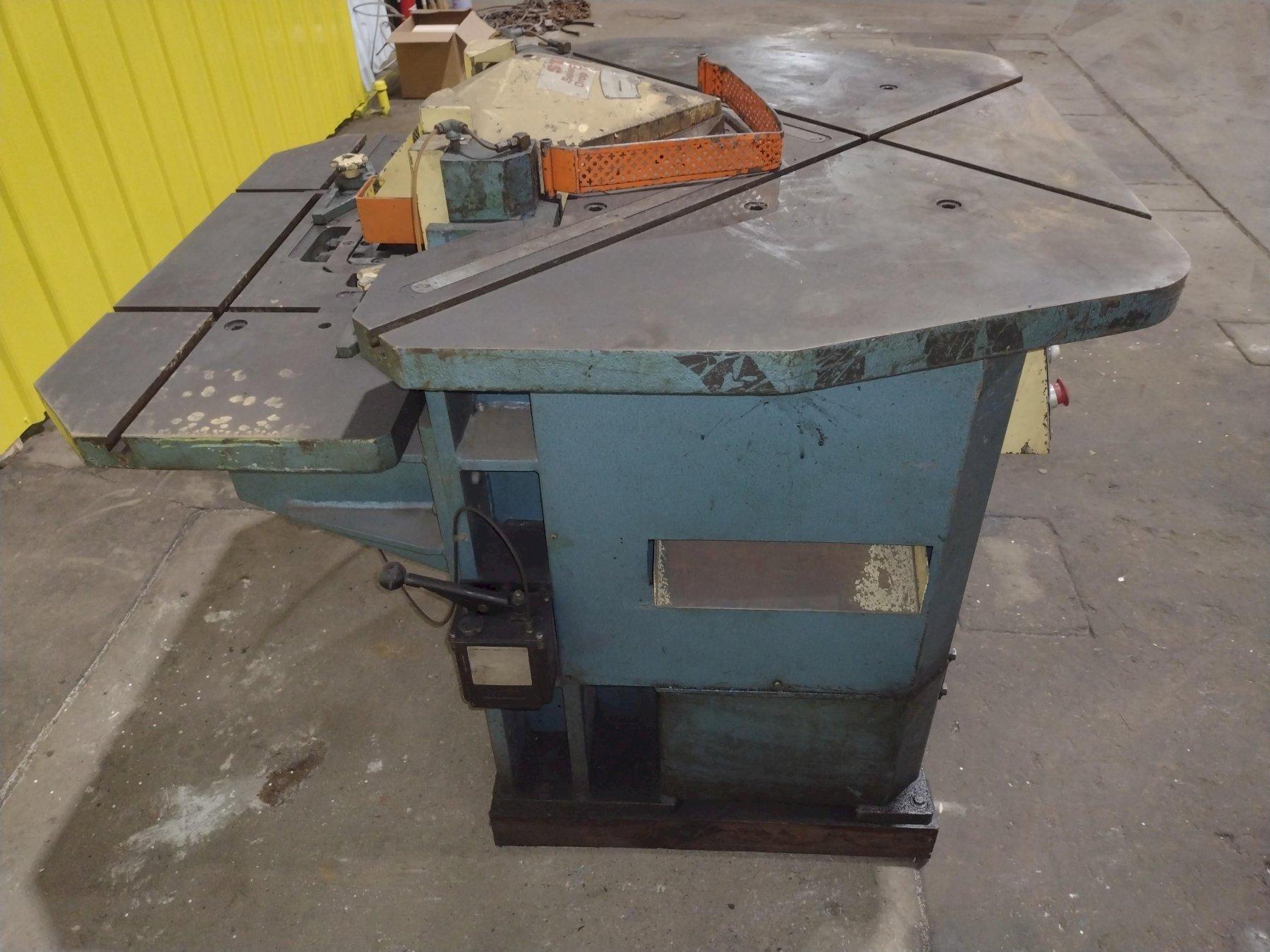

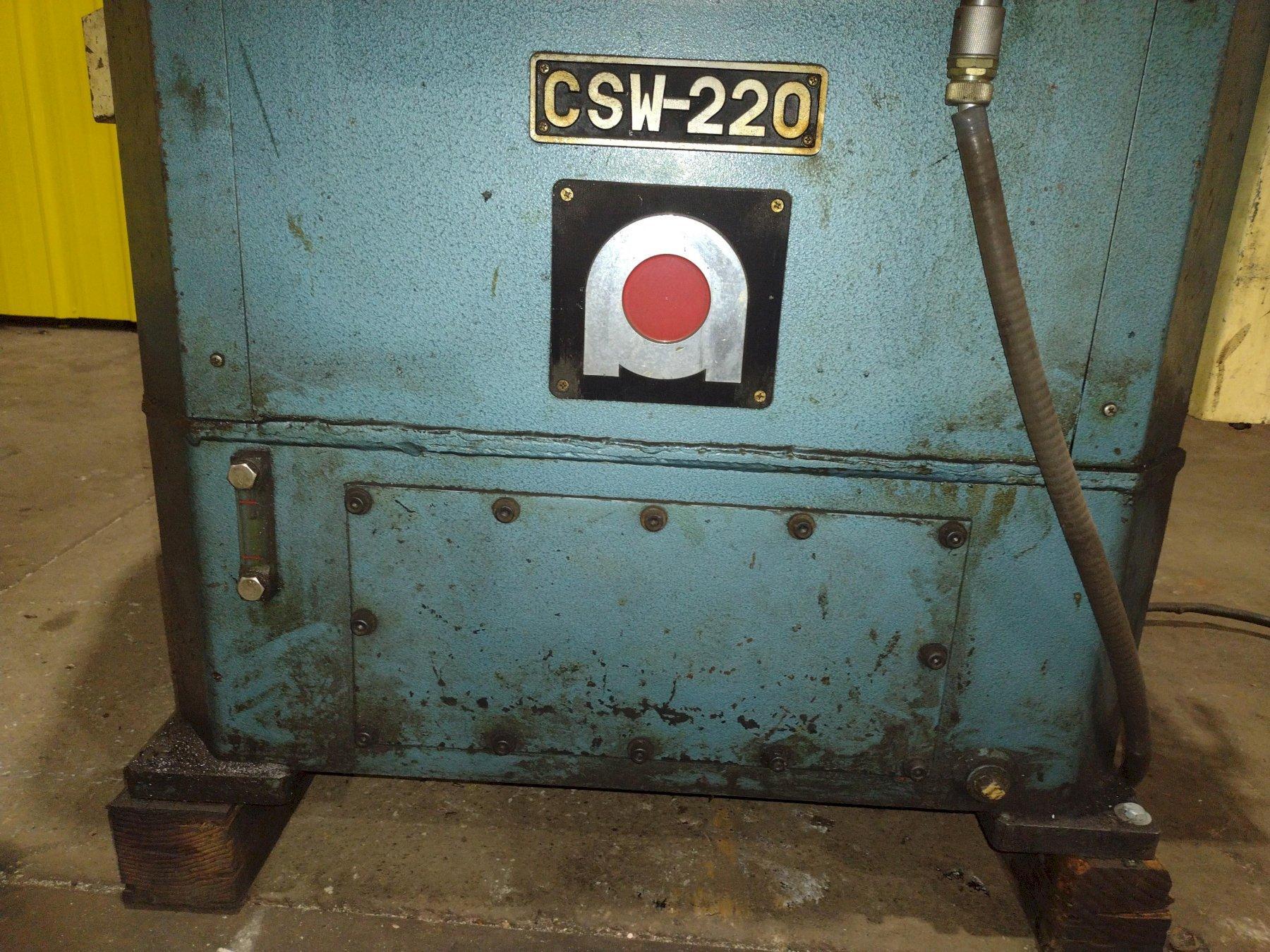

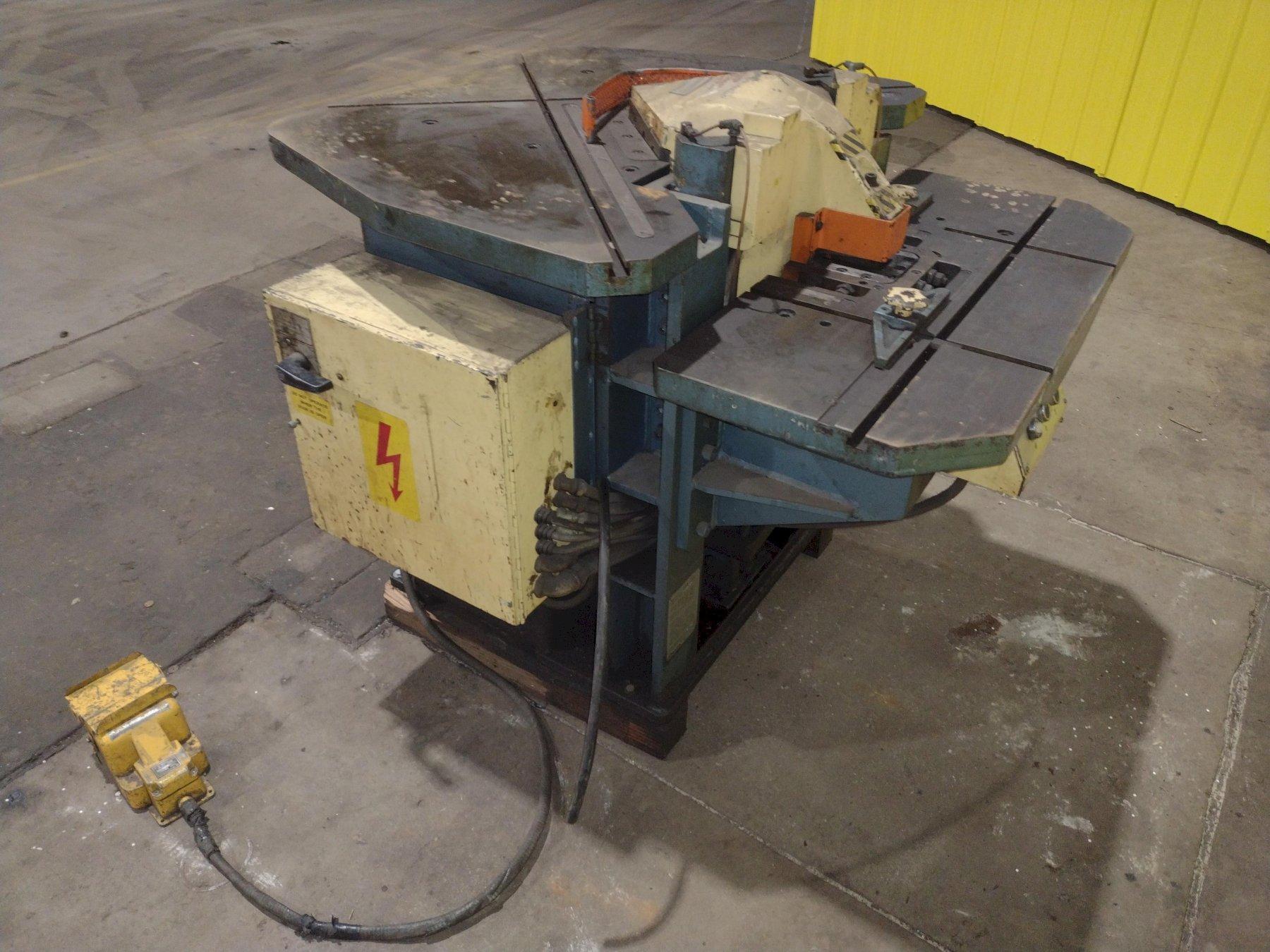

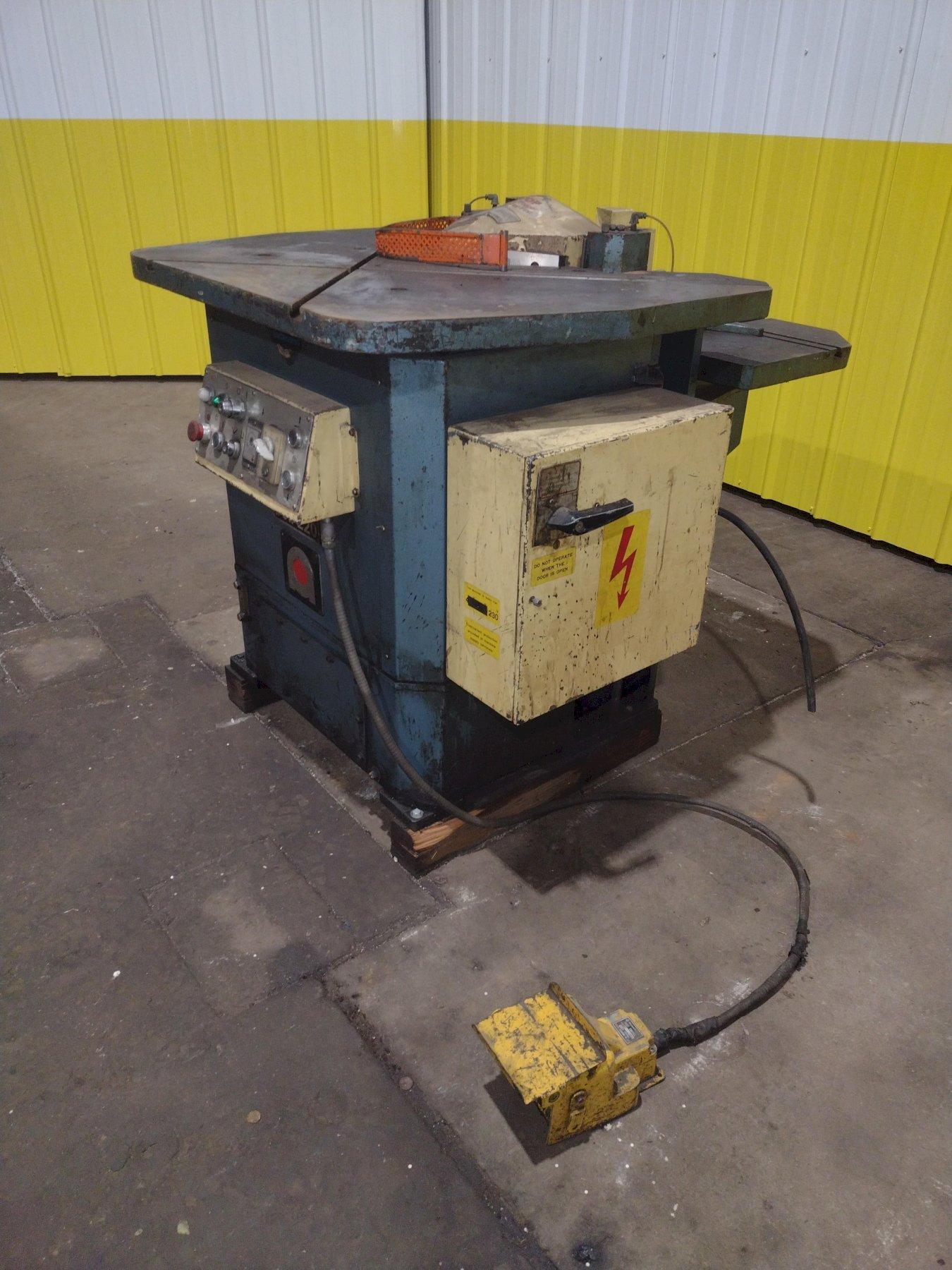

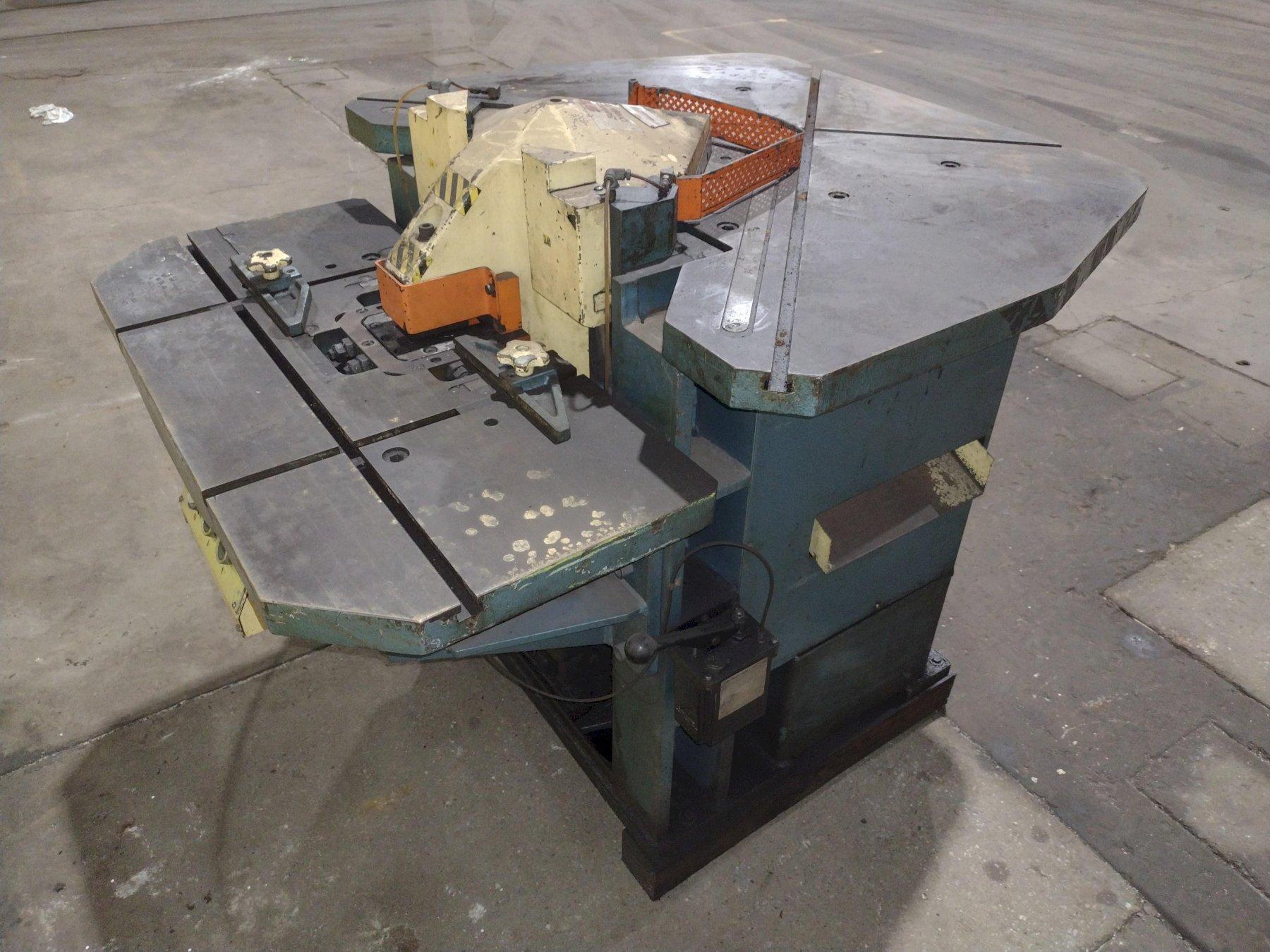

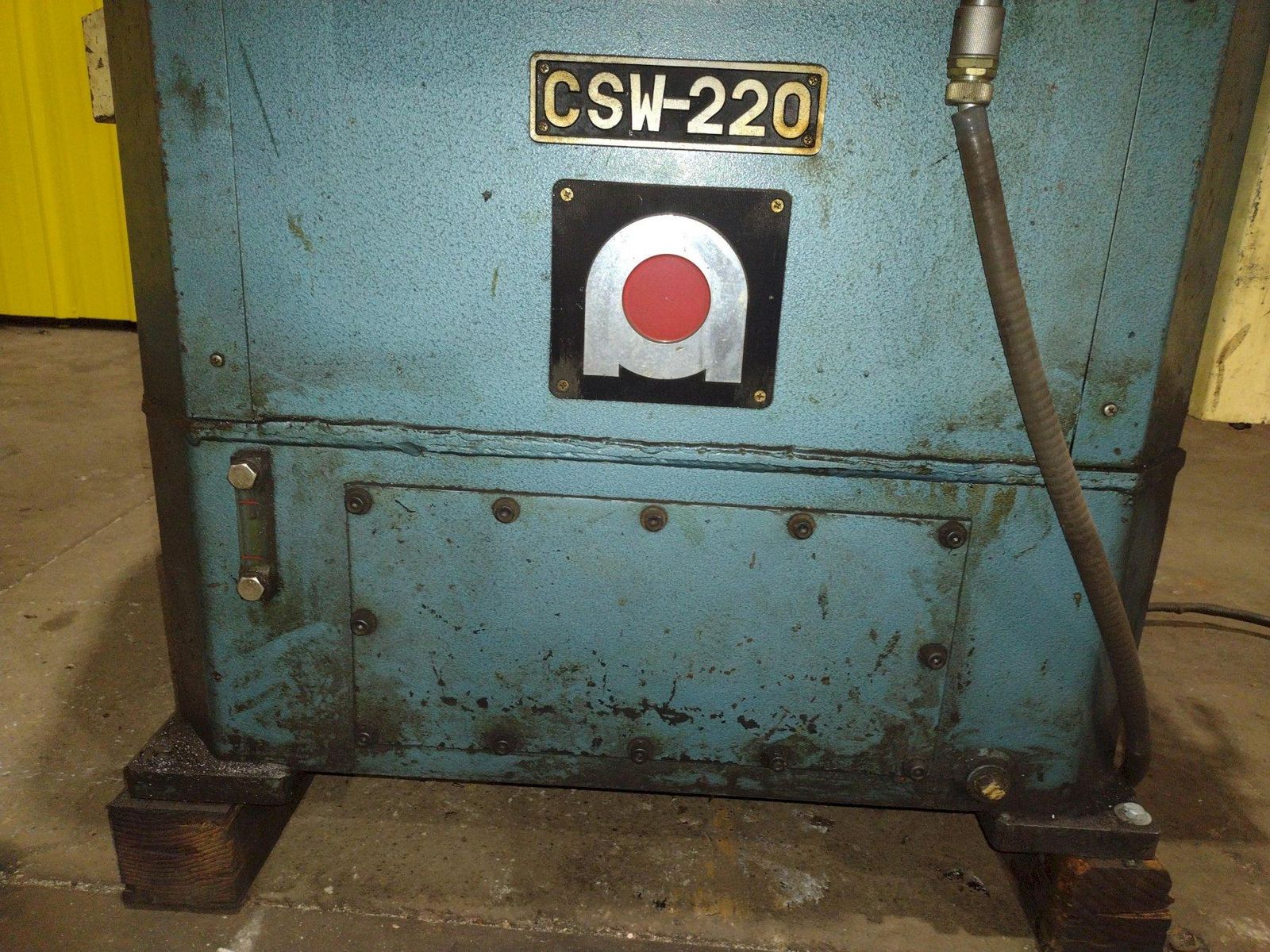

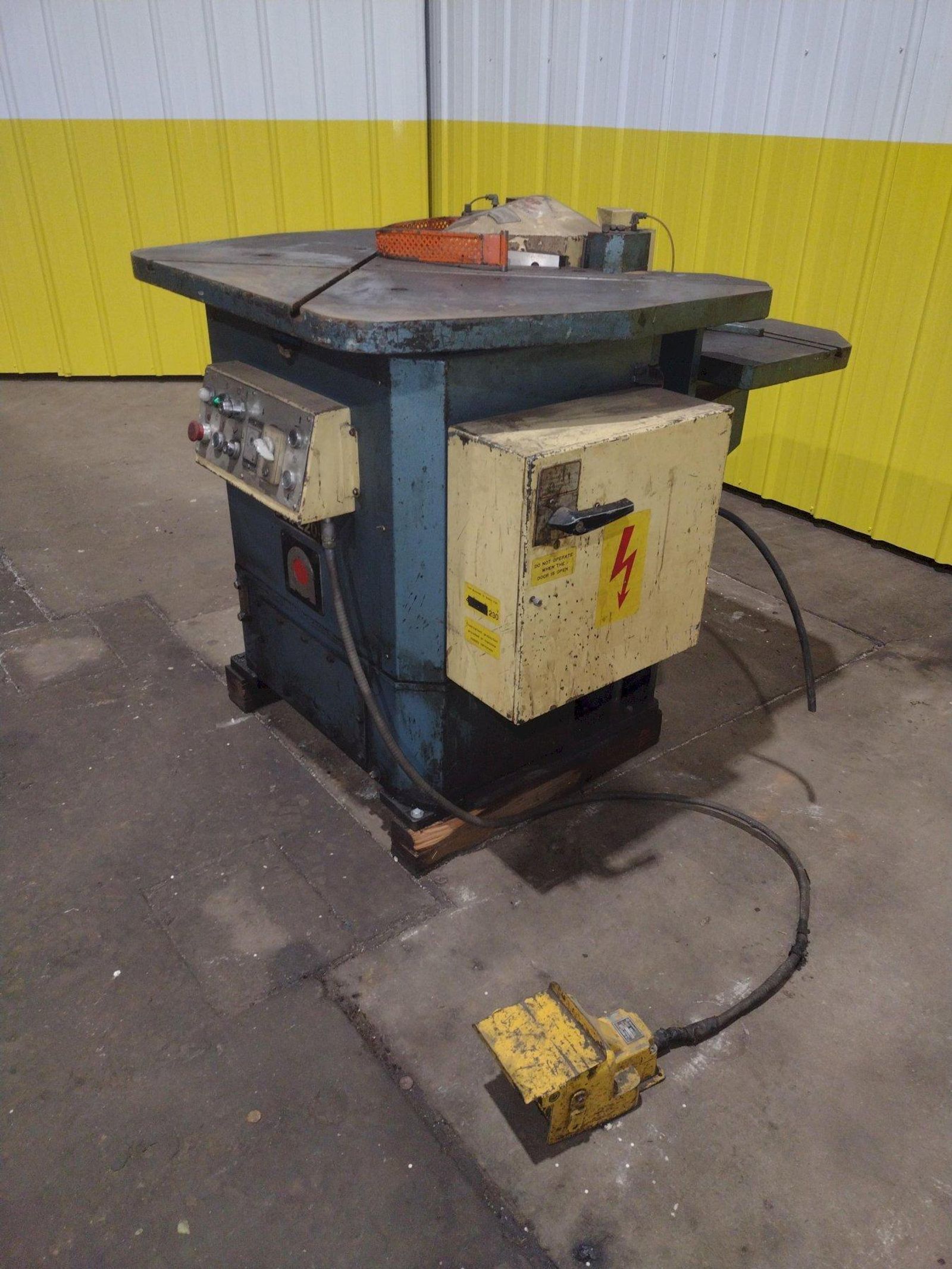

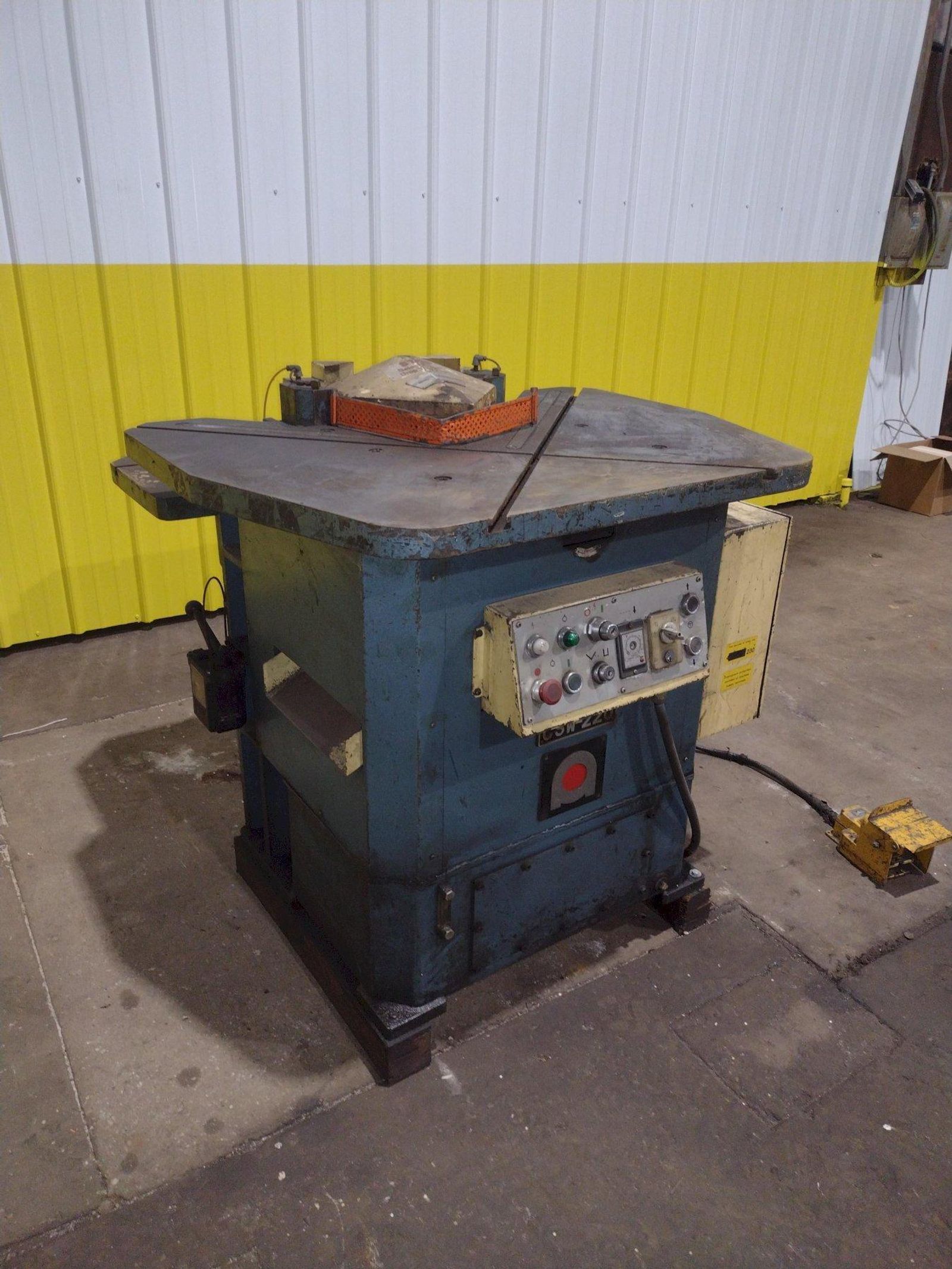

8" X 8" X 1/8" AMADA MODEL #CSW-220 DUAL HEAD CORNER NOTCHER & COPER: STOCK #10339

Brand
AMADA

Type
Notching Machines

Stock No.
10339

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

8" X 8" X 1/8" AMADA MODEL #CSW-220 DUAL HEAD CORNER NOTCHER & COPER: STOCK #10339

Stock #: 10339

Equipped With

SERIAL ..................... 563931
MODEL ...................... CS220
YEAR NEW ................... 1983
NOTCHING CAPACITY .......... 8-5/8" X 8-5/8"
MAXIMUM PLATE THICKNESS .... 1/8"
NOTCHING TABLE ............. 32" X 36"
COPING CAPACITY ............ 2" X 4"
COPER TABLE ................ 17" X 38"
RAM STROKE ................. 7/8"
STROKERS PER MINUTE ........ 36
RATED CAPACITY ............. 10 TON
HEIGHT OF TABLE ............ 36-1/2"
FOOT PEDAL ................. YES
MOTOR ...................... 3 HP

Overview

8" X 8" X 1/8" AMADA MODEL #CSW-220 DUAL HEAD CORNER NOTCHER & COPER: STOCK #10339
