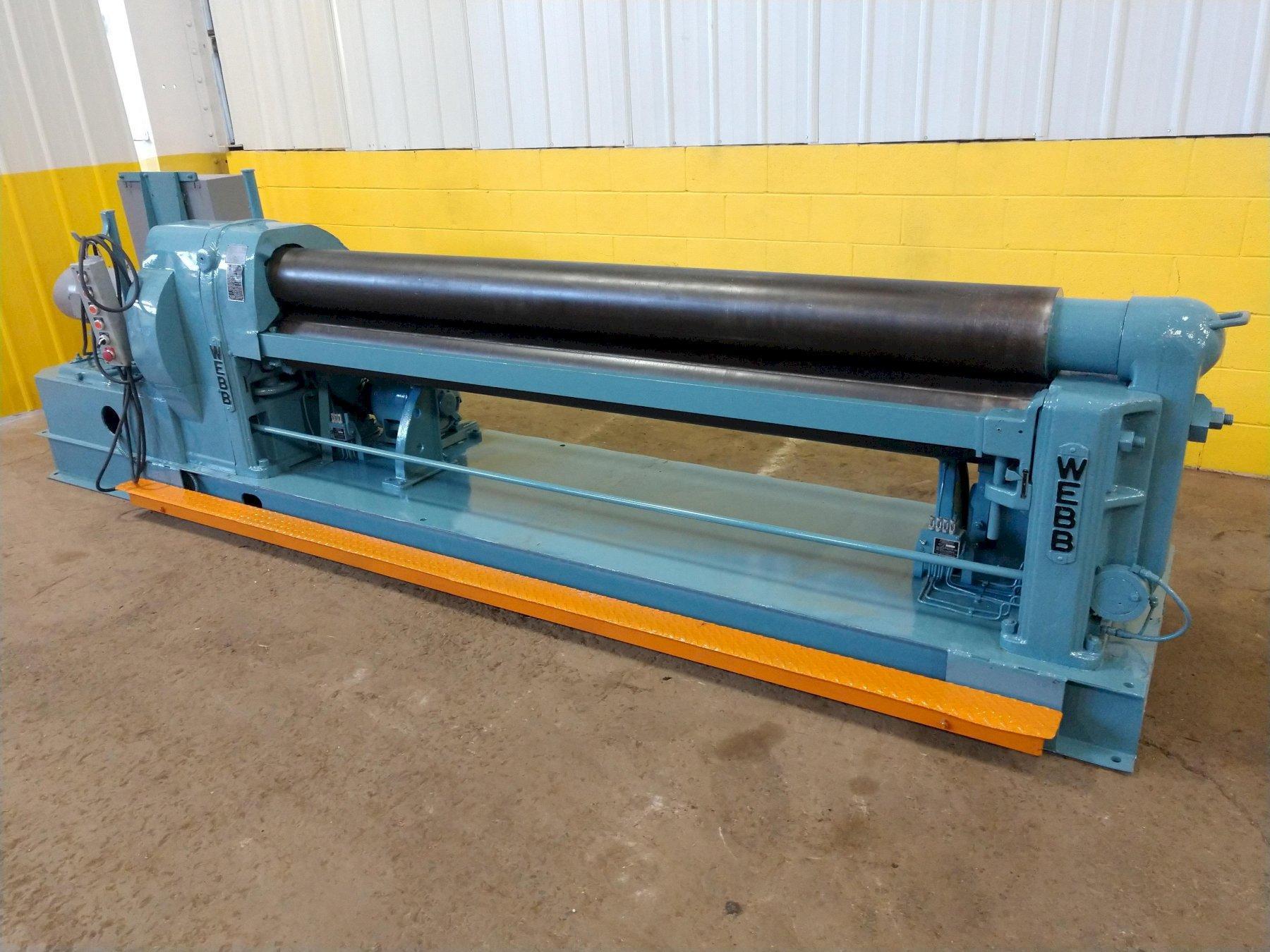

8' X 5/16" WEBB MODEL R3L INITIAL PINCH PLATE BENDING ROLL: STOCK #10796

Stock #: 10796

Equipped With

SERIAL .......................... 52128
MODEL ........................... R3L
CAPACITY ........................ 8' X 1/4"
OVERALL LENGTH OF ROLLS ......... 98"
DIAMETER OF ROLLS ............... 8"
SPEED ........................... 15 FPM
DROP END ........................ YES
FORWARD/REVERSE ................. YES
POWER REAR ROLL ADJUSTMENT ...... YES
PENDANT CONTROL ................. YES
REAR ROLL ADJUSTMENT MOTOR ...... 3 HORSEPOWER
MAIN MOTOR ...................... 7.5 HPORSEPOWER

Buy Machines

8' X 5/16" WEBB MODEL R3L INITIAL PINCH PLATE BENDING ROLL: STOCK #10796

Stock # 10796

Share Machine
Print Details

Machine Specifications

SERIAL .......................... 52128
MODEL ........................... R3L
CAPACITY ........................ 8' X 1/4"
OVERALL LENGTH OF ROLLS ......... 98"
DIAMETER OF ROLLS ............... 8"
SPEED ........................... 15 FPM
DROP END ........................ YES
FORWARD/REVERSE ................. YES
POWER REAR ROLL ADJUSTMENT ...... YES
PENDANT CONTROL ................. YES
REAR ROLL ADJUSTMENT MOTOR ...... 3 HORSEPOWER
MAIN MOTOR ...................... 7.5 HPORSEPOWER

Specifications
Weight 9500 pounds
Length of Rolls 96 inches
Dimensions 175" X 44" X 53" HIGH
