Machine Information

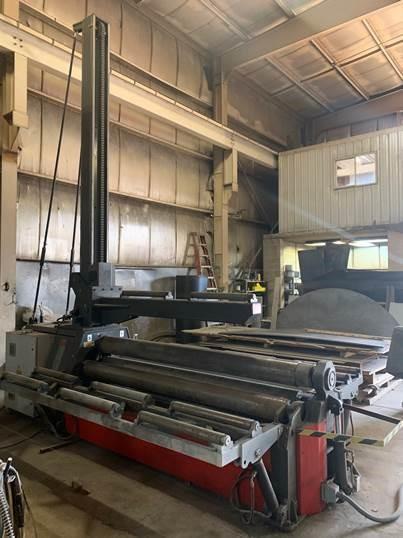

8' x 5/16" 2016 JMT MODEL #HRB-4 2508 4 ROLL CNC PLATE ROLL: STOCK 14726

Stock #: 14726

Equipped With

2016 JMT HRB-4 2508 4-roll CNC plate roller

8’-4” x 5/16” plate capacity

BENDING LENGTH 8'4"
CAPACITY PRE-BEND & ROLL 1/4"
CAPACITY ROLLING 5/16"
TOP ROLL DIAMTER 8.27"
BOTTOM ROLL DIAMETER 7.48"
SIDE ROLL DIAMETER 7.09"
PASS THROUGH ROLLS 1-3/16"
PASS LINE HEIGHT 33"
OVERARM SHEET SUPPORT
DUAL SPEED CONTROL
CONE BENDING
DROP END HYDRAULIC
SIDE SHEET SUPPORTS FRONT & BACK

MOTOR 10 HP

Buy Machines

8' x 5/16" 2016 JMT MODEL #HRB-4 2508 4 ROLL CNC PLATE ROLL: STOCK 14726

Stock # 14726

Share Machine
Print Details

Machine Specifications

2016 JMT HRB-4 2508 4-roll CNC plate roller

8’-4” x 5/16” plate capacity

BENDING LENGTH 8'4"
CAPACITY PRE-BEND & ROLL 1/4"
CAPACITY ROLLING 5/16"
TOP ROLL DIAMTER 8.27"
BOTTOM ROLL DIAMETER 7.48"
SIDE ROLL DIAMETER 7.09"
PASS THROUGH ROLLS 1-3/16"
PASS LINE HEIGHT 33"
OVERARM SHEET SUPPORT
DUAL SPEED CONTROL
CONE BENDING
DROP END HYDRAULIC
SIDE SHEET SUPPORTS FRONT & BACK

MOTOR 10 HP

Specifications
Dimensions 175" X 55" X 46" HIGH
Weight 12800 pounds
