Machine Information

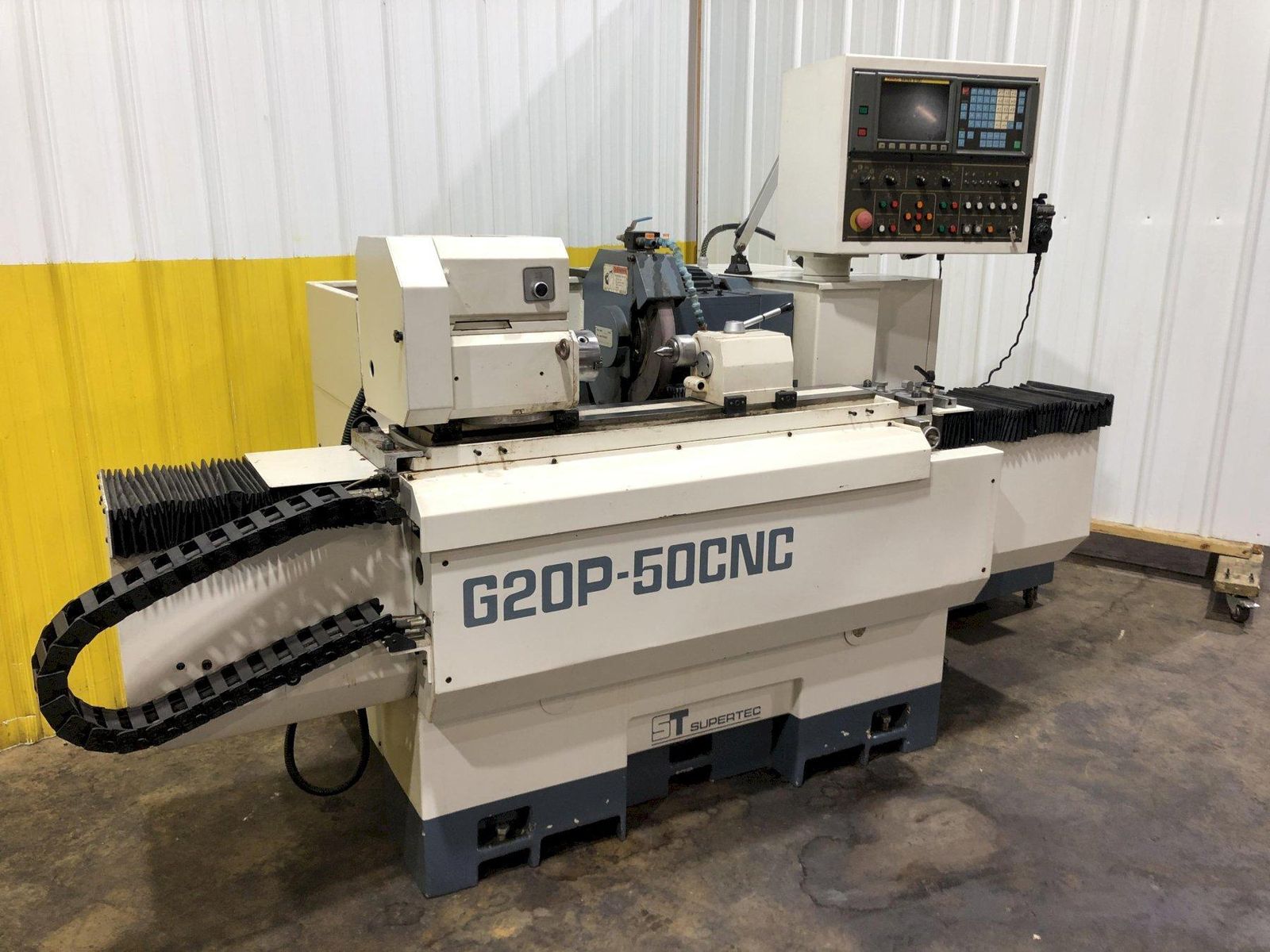

8" X 20" SUPERTEC MODEL #G20P-50 CNC UNIVERSAL CYLINDRICAL GRINDER: STOCK #18776

Stock #: 18776

Equipped With

MODEL ..................... G20P-50CNC


SWING OVER TABLE .......... 8"


DISTANCE BETWEEN CENTERS .. 20"


GRINDING DIAMETER ......... 8"


LOAD BETWEEN CENTERS ...... 176 LBS


WHEEL DIAMETER ............ 16"


WHEEL WIDTH ............... 1" TO 2"


WHEEL BORE ................ 5"


WHEEL SPEED ............... 1940 RPM


AUTOMATIC RAPID TRAVERSE .. 236" PER MIN


INFEED TRAVEL ............. 6"


MIN INCREMENT INFEED ...... .0001"


VARIABLE SPINDLE SPEED .... 50 TO 500 RPM


CENTER TAPER .............. MT #3


BORE DIAMETER ............. .79"


QUILL TRAVEL .............. 1"


TABLE RAPID FEED .......... 315" PER MIN


ADJUSTMENT TABLE FEED ..... .0001"


SWIVELLING ANGLE .......... 7 DEGREES


WORKHEAD SWIVEL ........... 90 DEG COUNTERCLOCK, 30 DEG CLOCKWISE


FANUC O-GC CONTROLS

Buy Machines

8" X 20" SUPERTEC MODEL #G20P-50 CNC UNIVERSAL CYLINDRICAL GRINDER: STOCK #18776

Stock # 18776

Request a Quote
Share Machine
Print Details
Make an Offer
Download Images
View All Images

Machine Specifications

MODEL ..................... G20P-50CNC
SWING OVER TABLE .......... 8"
DISTANCE BETWEEN CENTERS .. 20"
GRINDING DIAMETER ......... 8"
LOAD BETWEEN CENTERS ...... 176 LBS
WHEEL DIAMETER ............ 16"
WHEEL WIDTH ............... 1" TO 2"
WHEEL BORE ................ 5"
WHEEL SPEED ............... 1940 RPM
AUTOMATIC RAPID TRAVERSE .. 236" PER MIN
INFEED TRAVEL ............. 6"
MIN INCREMENT INFEED ...... .0001"
VARIABLE SPINDLE SPEED .... 50 TO 500 RPM
CENTER TAPER .............. MT #3
BORE DIAMETER ............. .79"
QUILL TRAVEL .............. 1"
TABLE RAPID FEED .......... 315" PER MIN
ADJUSTMENT TABLE FEED ..... .0001"
SWIVELLING ANGLE .......... 7 DEGREES
WORKHEAD SWIVEL ........... 90 DEG COUNTERCLOCK, 30 DEG CLOCKWISE
FANUC O-GC CONTROLS
