Machine Information

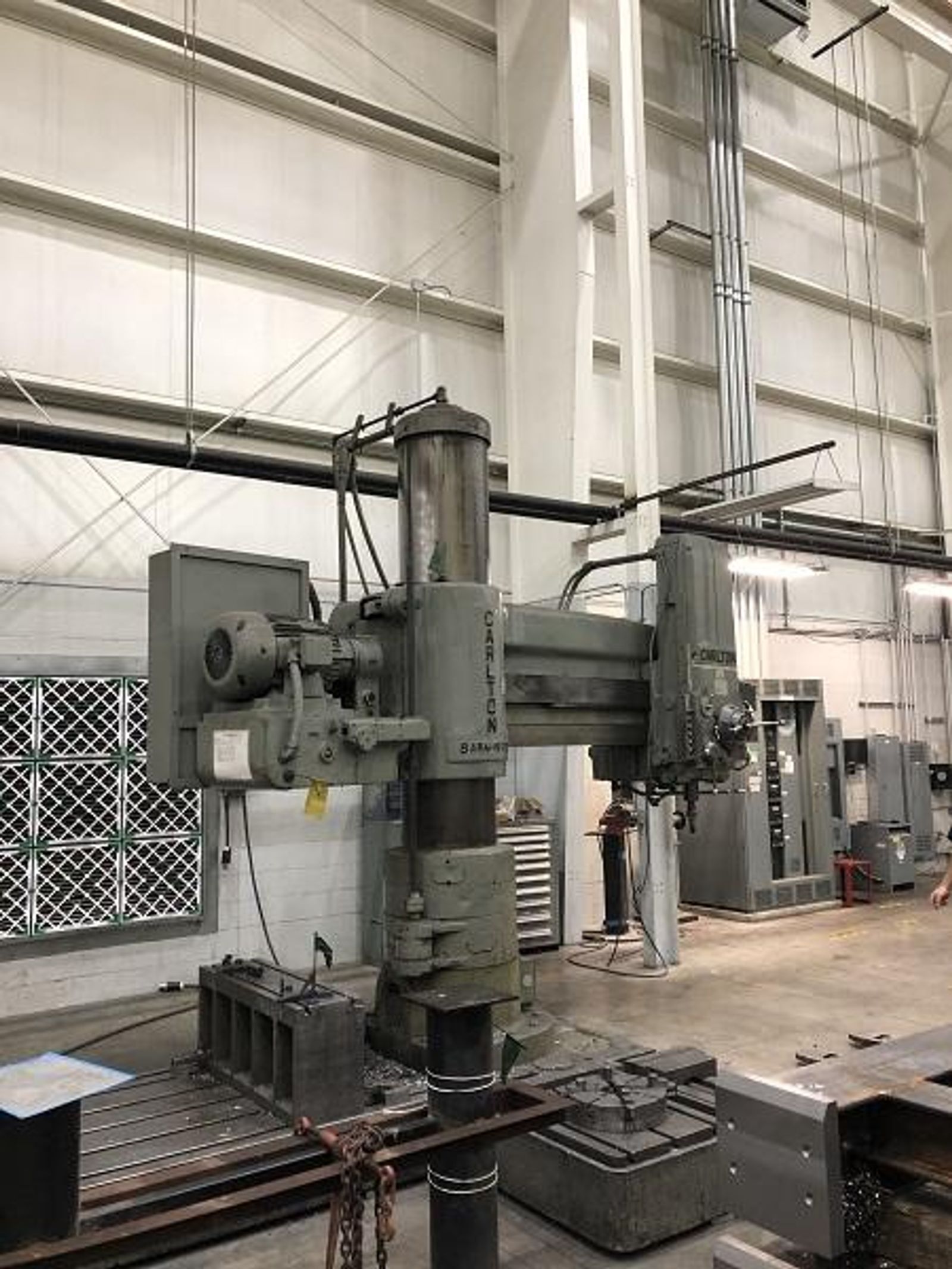

8' X 19" CARLTON MODEL #4A RADIAL DRILL: STOCK 10130

Stock #: 10130

Equipped With

MODEL 4A
SIZE 8' X 19"
SPINDLE SPEEDS ............... (36) 15 TO 1500 RPM
FEEDS ........................ (18) .004 TO .125 IPR
SPINDLE TRAVEL ............... 20"
DIAMETER OF SPINDLE .......... 4"
TAPER IN SPINDLE ............. #6MT
DISTANCE SPINDLE TO BASE ..... 30" MIN. - 78" MAX.
 DISTANCE SPINDLE TO COLUMN ... 13-1/4" MIN. - 96" MAX.
POWER HEAD CLAMP ............. YES
POWER ARM CLAMP .............. YES
POWER COLUMN CLAMP ........... YES
MOTOR ........................ 30 HORSEPOWER
