Machine Information

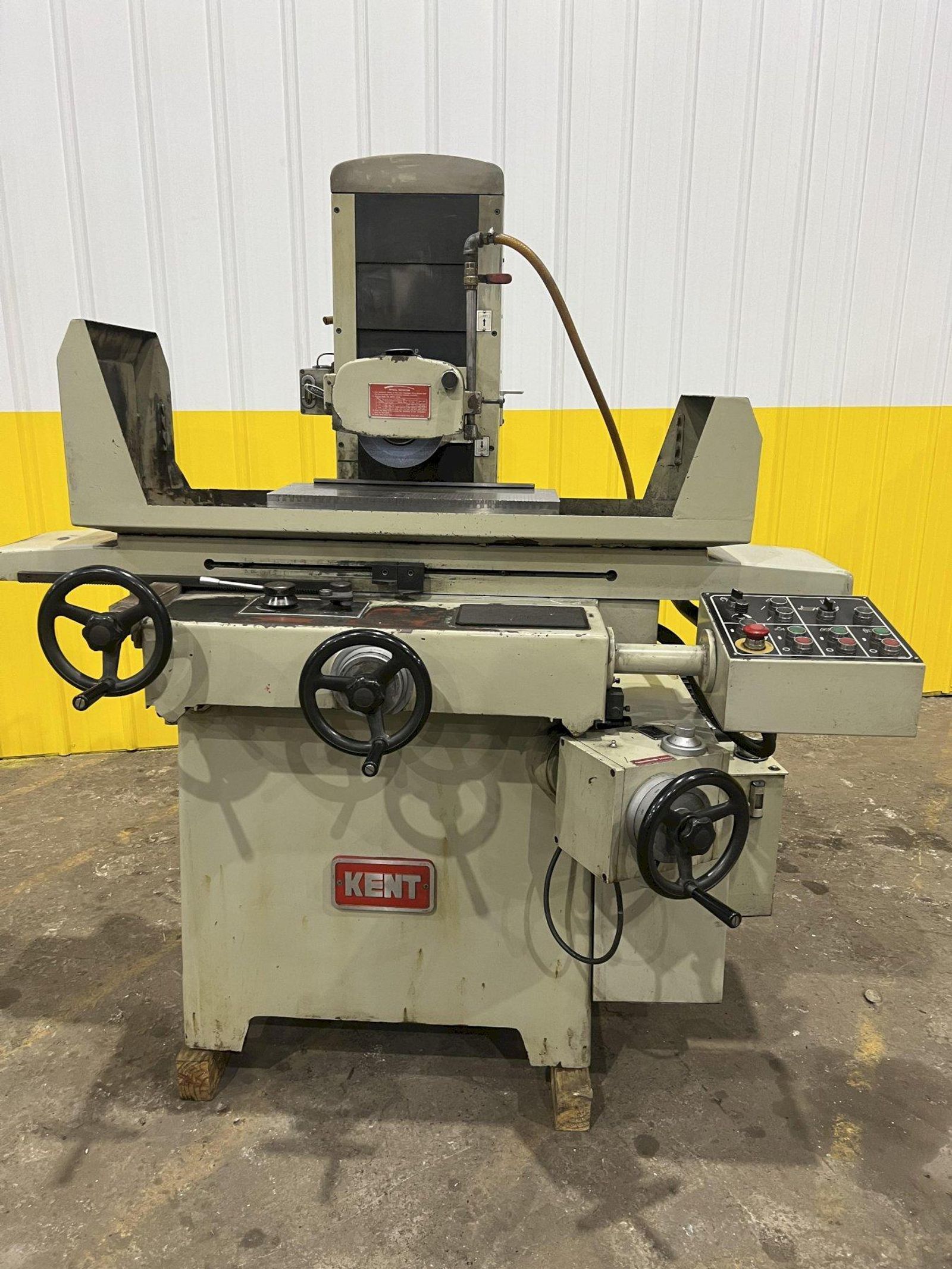

8" X 18" KENT MODEL #KGS-250AHD HYDRAULIC HORIZONTAL SURFACE GRINDER: STOCK #19970

Stock #: 19970

Equipped With

SERIAL ................... 840404-3
Model .................... KGS-250AHD
NEW ...................... 04/1984
MAGNET SIZE .............. 8" X 18"
GRIND CAPACITY ........... 10" x 20"
SPINDLE CENTER TO TABLE .. 19"
TABLE SPEED .............. 16 TO 80 FPM, VARIABLE
DOWNFEED ................. MANUAL HAND WHEEL
DOWNFEED GRADUATION ...... .001"; .1" PER REVOLUTION
GRINDING WHEEL ........... 8" X 1/2" X 1-1/4"
COOLANT .................. YES
SPINDLE SPEED ............ 3450 RPM
SPINDLE MOTOR ............ 1.5 HP
HYDRAULIC MOTOR .......... 1 HP
