Overview

SERIAL ............................... 89060304

MODEL ................................ KGS-818AHD

TABLE WORKING SURFACE ................ 8" X 18"

MAXIMUM TABLE TRAVEL ................. 19" X 10"

TABLE TO SPINDLE CENTER, MAXIMUM ..... 19"

LONGITUDINAL HYDRAULIC FEED RATES .... 16 TO 75 FPM

CROSS POWER FEED ..................... .004" TO .3" PER STROKE

RAPID CROSS FEED ..................... 35 IPM

AUTOMATIC DOWNFEED INCREMENT ......... .0001" TO .001"

HAND FEED PER REVOLUTION/GRADUATION .. .2"/.001"

SPINDLE MOTOR ........................ 1.5 HP 220/440/3/60

HYDRAULIC PUMP ....................... 1 HP 220/440/3/60

GRINDING WHEEL ( STANDARD WHEEL ) .... 7" X 1/2" X 1.25"

INCREMENTAL DOWN FEED ................ POWER
LONGITUDINAL & CROSS FEEDS ........... POWER

COOLANT SYSTEM ....................... YES

ONE SHOT LUBRICATION ................. YES

SPLASH GUARDS ........................ YES

HYDRAULIC UNIT ....................... YES

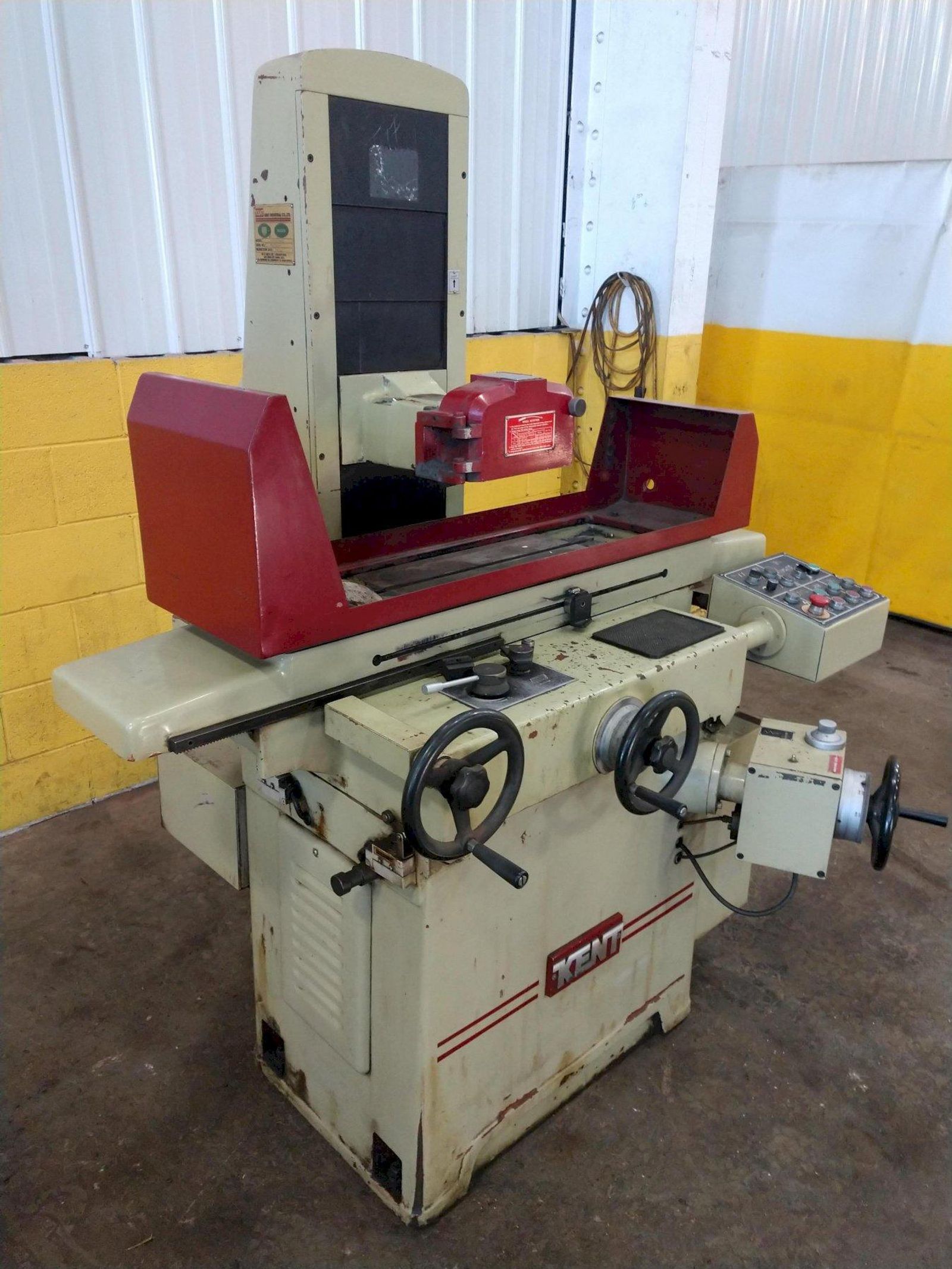

8" X 18" KENT #KGS-818AHD AUTOMATIC HYDRAULIC SURFACE GRINDER: STOCK #11062

Brand
KENT

Type
Grinders, Surface, Horizontal

Stock No.
11062

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

8" X 18" KENT #KGS-818AHD AUTOMATIC HYDRAULIC SURFACE GRINDER: STOCK #11062

Stock #: 11062

Equipped With

SERIAL ............................... 89060304

MODEL ................................ KGS-818AHD
TABLE WORKING SURFACE ................ 8" X 18"
MAXIMUM TABLE TRAVEL ................. 19" X 10"
TABLE TO SPINDLE CENTER, MAXIMUM ..... 19"
LONGITUDINAL HYDRAULIC FEED RATES .... 16 TO 75 FPM
CROSS POWER FEED ..................... .004" TO .3" PER STROKE
RAPID CROSS FEED ..................... 35 IPM
AUTOMATIC DOWNFEED INCREMENT ......... .0001" TO .001"
HAND FEED PER REVOLUTION/GRADUATION .. .2"/.001"
SPINDLE MOTOR ........................ 1.5 HP 220/440/3/60
HYDRAULIC PUMP ....................... 1 HP 220/440/3/60
GRINDING WHEEL ( STANDARD WHEEL ) .... 7" X 1/2" X 1.25"

INCREMENTAL DOWN FEED ................ POWER
LONGITUDINAL & CROSS FEEDS ........... POWER
COOLANT SYSTEM ....................... YES
ONE SHOT LUBRICATION ................. YES
SPLASH GUARDS ........................ YES
HYDRAULIC UNIT ....................... YES

Overview

8" X 18" KENT #KGS-818AHD AUTOMATIC HYDRAULIC SURFACE GRINDER: STOCK #11062
