| Specifications | ||
|---|---|---|
| Incremental Downfeed | yes | |
| Chuck Size | 8 X 18 | |
| X-Axis Travel | 8 inches | |
| Y-Axis Travel | 18 inches | |
| Main Motor | 2 | |
| Grinding Wheel Speed RPM | 3600 | |
| Table-W | 8 inches | |
| Table-L | 18 inches | |
| Spindle (Horz/Vert) | horizontal | |
| Power | 2 horsepower | |
| Dimensions | MACHINE - 89" X 86" X 100", CART - 30" X 16" X 45" | |
Brand
BROWN & SHARPE
Type
Grinders, Surface, Recip.
Stock No.
10549
 |
419-269-2000 |
Stock #: 10549
SERIAL ................................... 523-3818-1648

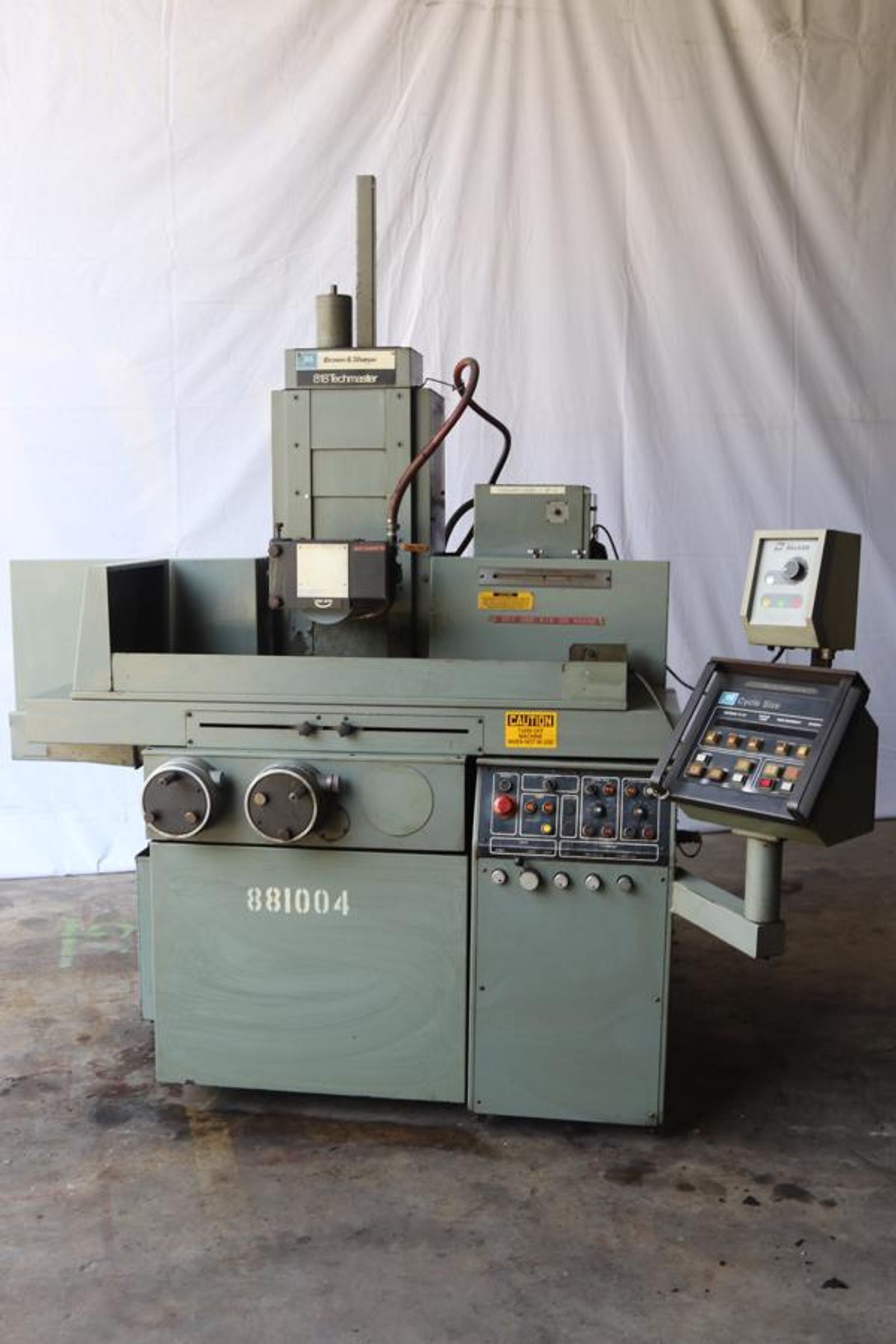

MODEL .................................... 818 TECHMASTER
CAPACITY ................................. 8" & 18"
TABLE CAPACITY ........................... 400 LBSHEIGHT ................................... 19.5" ( w/7" wheel); 19" (w/8" wheel)
WHEEL SIZE ............................... 7" OD X 1.25" ID X .5" WIDTHSPINDLE SPEED ............................ 3600 RPM
TABLE TRAVEL ............................. 22.5"
CROSS TRAVEL ............................. 9.5"
VERTICAL TRAVEL .......................... 20"
TABLE FEED ............................... 5 TO 100 FPM
SPINDLE MOTOR ............................ 2 HP
