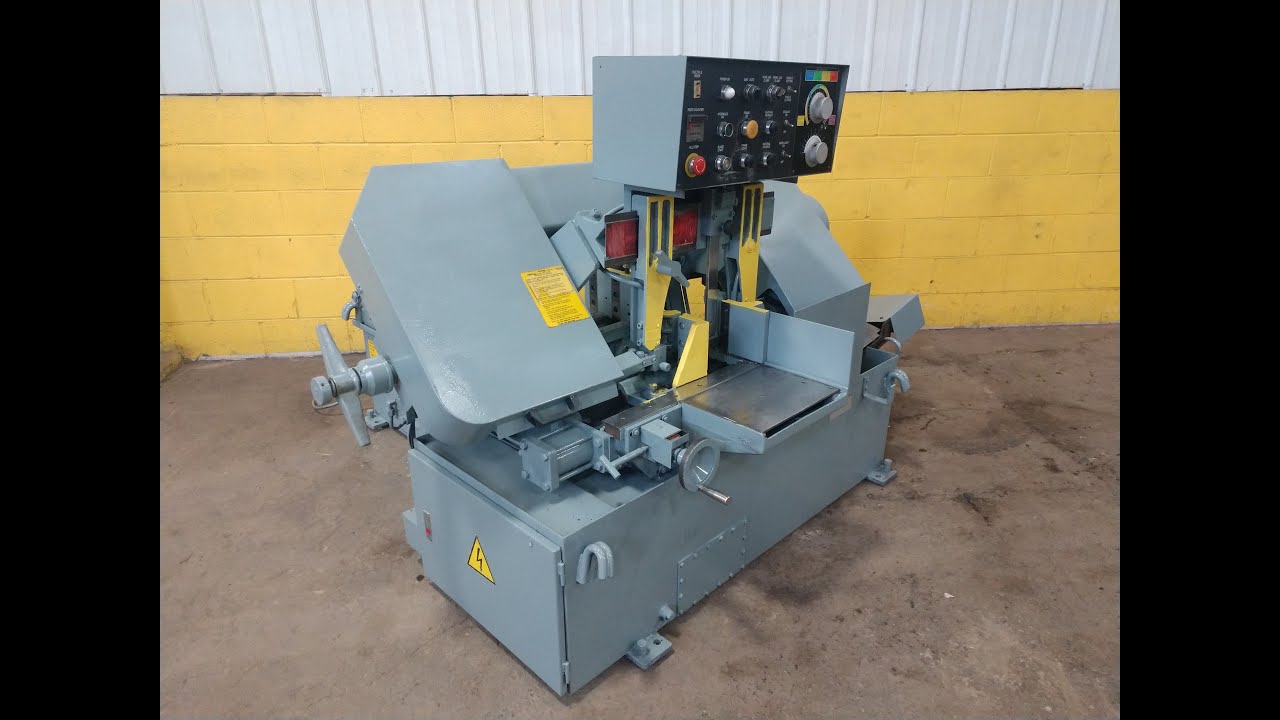

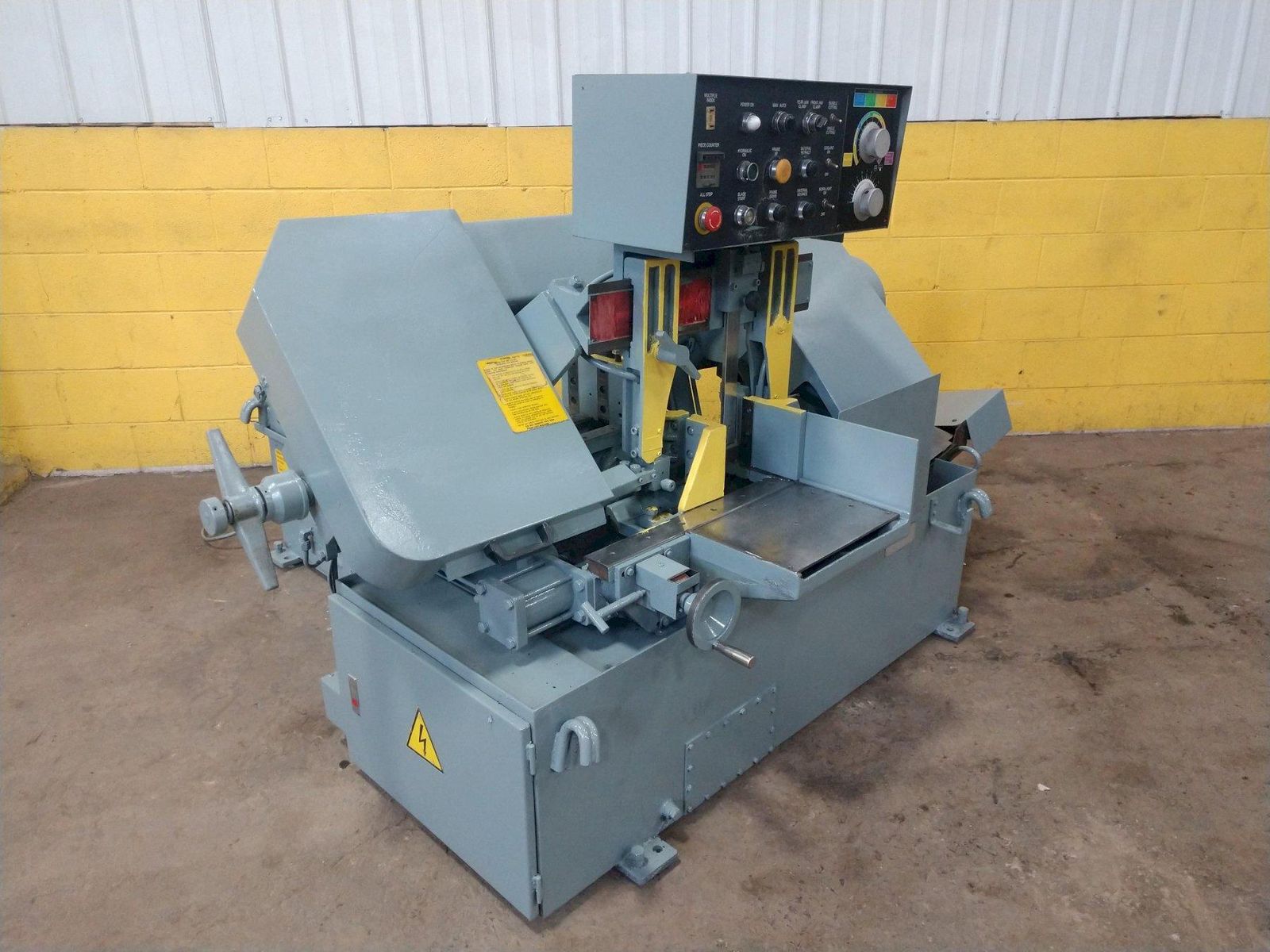

10" x 12" SPARTAN MARVEL MODEL #PA10 AUTOMATIC HORIZONTAL BAND SAW: STOCK 13438

Stock #: 13438

Equipped With

MODEL ........................ PA10
DIMENSIONS ................... 93″ x 93″ x 70″ H
WEIGHT ....................... 2800
YEAR NEW ..................... 1997
CAPACITY RECTANGLES .......... 10" X 12"
CAPACITY (ROUND) ............. 10"
BLADE DIMENSION .............. 111'6" X 1-1/4" X .042"
BLADE SPEED (VARIABLE) ....... 70 TO 330 SFPM
FEED FORCE (VARIABLE) ........ 0 TO 300 LBS
AUTOMATIC BAR FEED ........... 16"  MAXIMUM
INDEXING CYCLES .............. 9
BUNDLE CUTTING (NESTING) ..... YES
HYDRAULIC BLADE TENSION ...... YES
LOAD CAPACITY ................ 6,250 LBS.
FLOOR TO TOP OF TABLE ........ 27-1/2"
PIECE COUNTER ................ YES
HYDRAULIC DRIVE MOTOR ........ 1
BLADE DRIVE MOTOR ............ 5 HORSEPOWER
COOLANT PUMP ................. 1/8 HORSEPOWER

Buy Machines

10" x 12" SPARTAN MARVEL MODEL #PA10 AUTOMATIC HORIZONTAL BAND SAW: STOCK 13438

Stock # 13438

Share Machine
Print Details

Machine Specifications

MODEL ........................ PA10
DIMENSIONS ................... 93″ x 93″ x 70″ H
WEIGHT ....................... 2800
YEAR NEW ..................... 1997
CAPACITY RECTANGLES .......... 10" X 12"
CAPACITY (ROUND) ............. 10"
BLADE DIMENSION .............. 111'6" X 1-1/4" X .042"
BLADE SPEED (VARIABLE) ....... 70 TO 330 SFPM
FEED FORCE (VARIABLE) ........ 0 TO 300 LBS
AUTOMATIC BAR FEED ........... 16"  MAXIMUM
INDEXING CYCLES .............. 9
BUNDLE CUTTING (NESTING) ..... YES
HYDRAULIC BLADE TENSION ...... YES
LOAD CAPACITY ................ 6,250 LBS.
FLOOR TO TOP OF TABLE ........ 27-1/2"
PIECE COUNTER ................ YES
HYDRAULIC DRIVE MOTOR ........ 1
BLADE DRIVE MOTOR ............ 5 HORSEPOWER
COOLANT PUMP ................. 1/8 HORSEPOWER

Videos
Specifications
Dimensions 93″ x 93″ x 70″ H
Weight 2800 pounds
