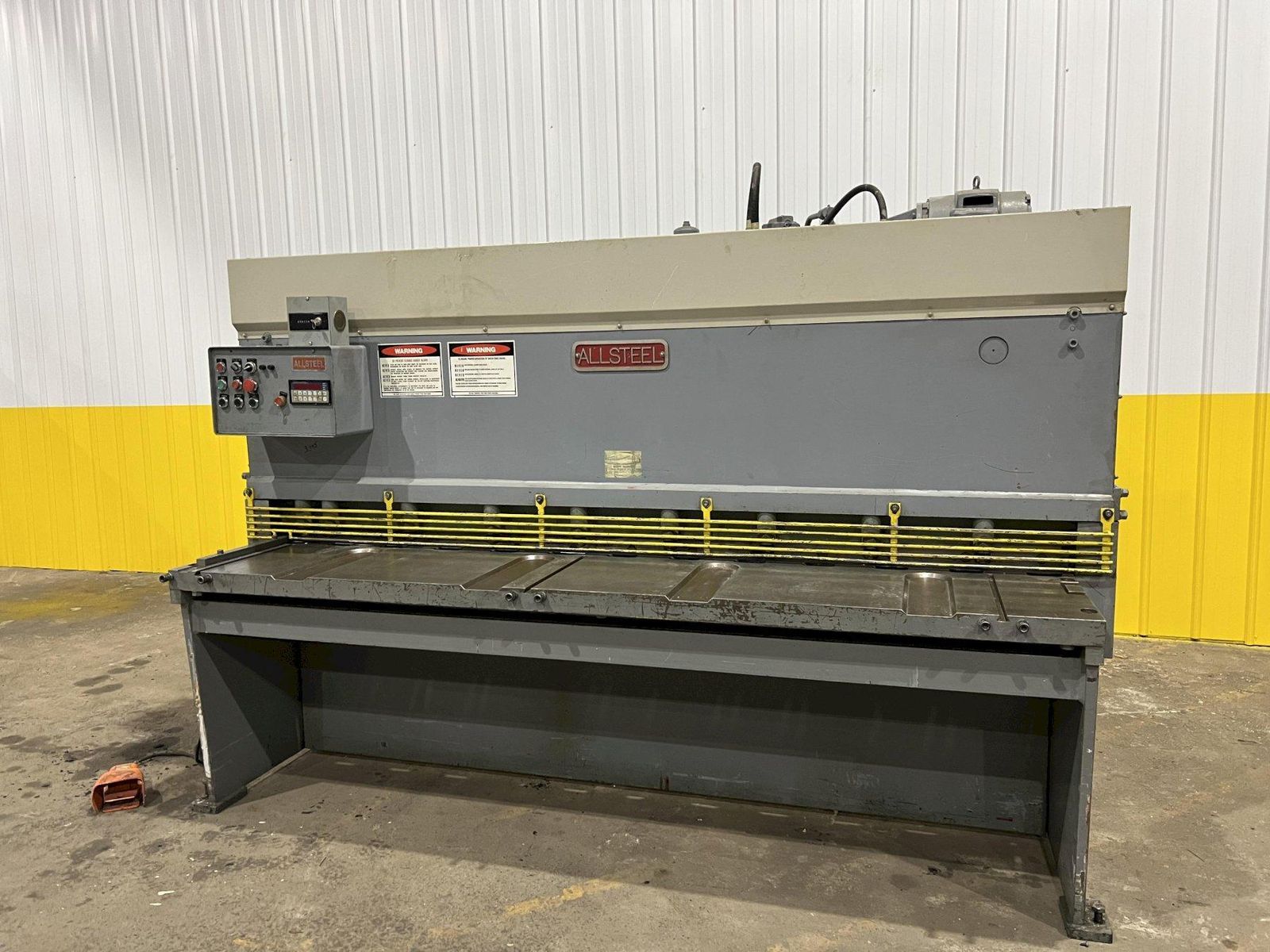

Brand
ALLSTEEL
Type
Shears, Mechanical
Stock No.
19740
 |
419-269-2000 |
Stock #: 19740
Rake Capacity (MS) ........... 10 gaugeRake Capacity (SS) ........... 14 gaugeRake Capacity (Brass/Alum) ... 0.1875"Min Rake Angle ............... 0.09375 in/ft.Max Rake Angle ............... 0.4375 in/ft.Over Rake Angle .............. 0.625 in/ft.Min Knife Clearance .......... 0.002"Max Knife Clearance .......... 0.006"Hyd/Mech ..................... HydPower 15 ..................... hpMin SPM ...................... 30 SPMMax SPM ...................... 90 SPMHold Downs ................... 9Work Support Arms ............ 2Dimensions ................... 113" X 96" X 102"EQUIPPED WITH- Programmable disappearing back gauge- Hydraulic hold downs- Variable rake angle- Variable cut length- Quick blade clearance adjustment- Overcapacity rake adjustment- Individual knife straighteners- Ball transfers in table- Adjustable tension bar
