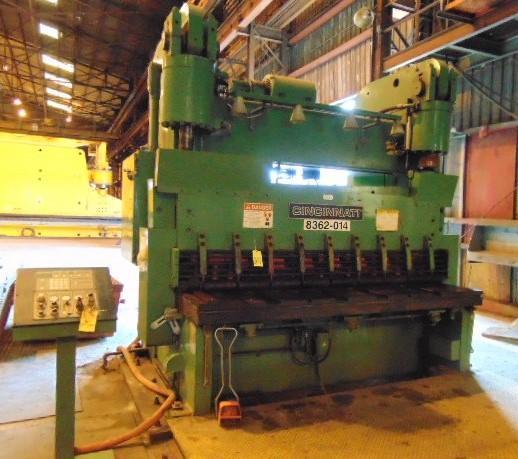

8' X 1" CINCINNATI MODEL #8SE08 HYDRAULIC PLATE SHEAR: STOCK #12131

Stock #: 12131

Equipped With

SERIAL .......................... 52843
MODEL ........................... 8SE08
YEAR NEW ........................ 2004
CAPACITY ........................ 8' X 1"
DISTANCE BETWEEN HOUSINGS ....... 99"
BACKGUAGE RANGE ................. 48"
SWING UP BACKGUAGE .............. YES
RAKE ANGLE ...................... 3/4" PER FOOT
POWER LENGTH OF STROKE CONTROL .. YES
STROKES PER MINUTE FULL STROKE .. 6
STROKES PER MINUTE SHORT STROKE . 15
HOLDDOWN TONNAGE ................ 57 TON MAXIMUM
NUMBER OF HOLD DOWNS ............ 11
DEPTH OF PIT FOR BED ............ 6-1/2"
CINCINNATI PROGRAMMABLE CONTROL . YES
PEDESTAL CONTROL STATION ........ YES
POWER BLADE ADJUSTMENT .......... YES
FOOT TRIP CONTROL ............... YES
ROLLERS IN BED .................. YES
OIL COOLER ...................... YES
MOTOR ........................... 50 HORSEPOWER

Buy Machines

8' X 1" CINCINNATI MODEL #8SE08 HYDRAULIC PLATE SHEAR: STOCK #12131

Stock # 12131

Share Machine
Print Details

Machine Specifications

SERIAL .......................... 52843
MODEL ........................... 8SE08
YEAR NEW ........................ 2004
CAPACITY ........................ 8' X 1"
DISTANCE BETWEEN HOUSINGS ....... 99"
BACKGUAGE RANGE ................. 48"
SWING UP BACKGUAGE .............. YES
RAKE ANGLE ...................... 3/4" PER FOOT
POWER LENGTH OF STROKE CONTROL .. YES
STROKES PER MINUTE FULL STROKE .. 6
STROKES PER MINUTE SHORT STROKE . 15
HOLDDOWN TONNAGE ................ 57 TON MAXIMUM
NUMBER OF HOLD DOWNS ............ 11
DEPTH OF PIT FOR BED ............ 6-1/2"
CINCINNATI PROGRAMMABLE CONTROL . YES
PEDESTAL CONTROL STATION ........ YES
POWER BLADE ADJUSTMENT .......... YES
FOOT TRIP CONTROL ............... YES
ROLLERS IN BED .................. YES
OIL COOLER ...................... YES
MOTOR ........................... 50 HORSEPOWER

Specifications
Dimensions 150" R-L X 110" F-B X 130" HIGH
Weight 53000 pounds
