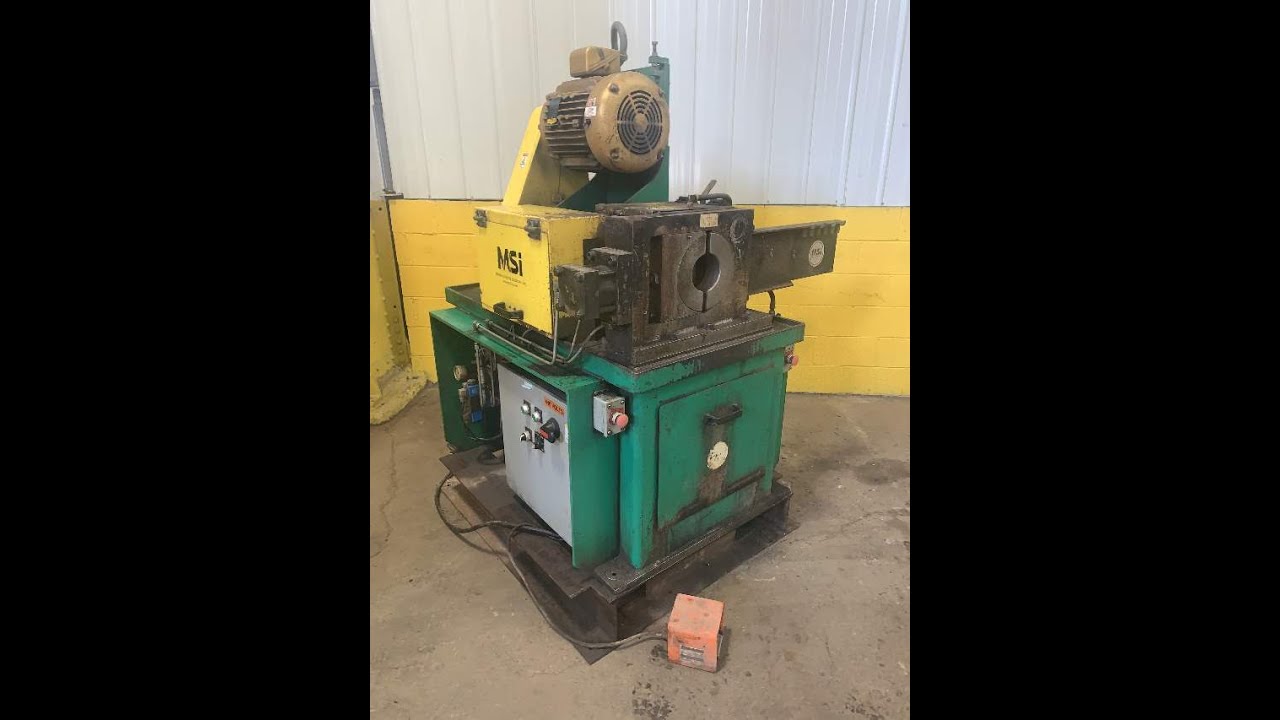

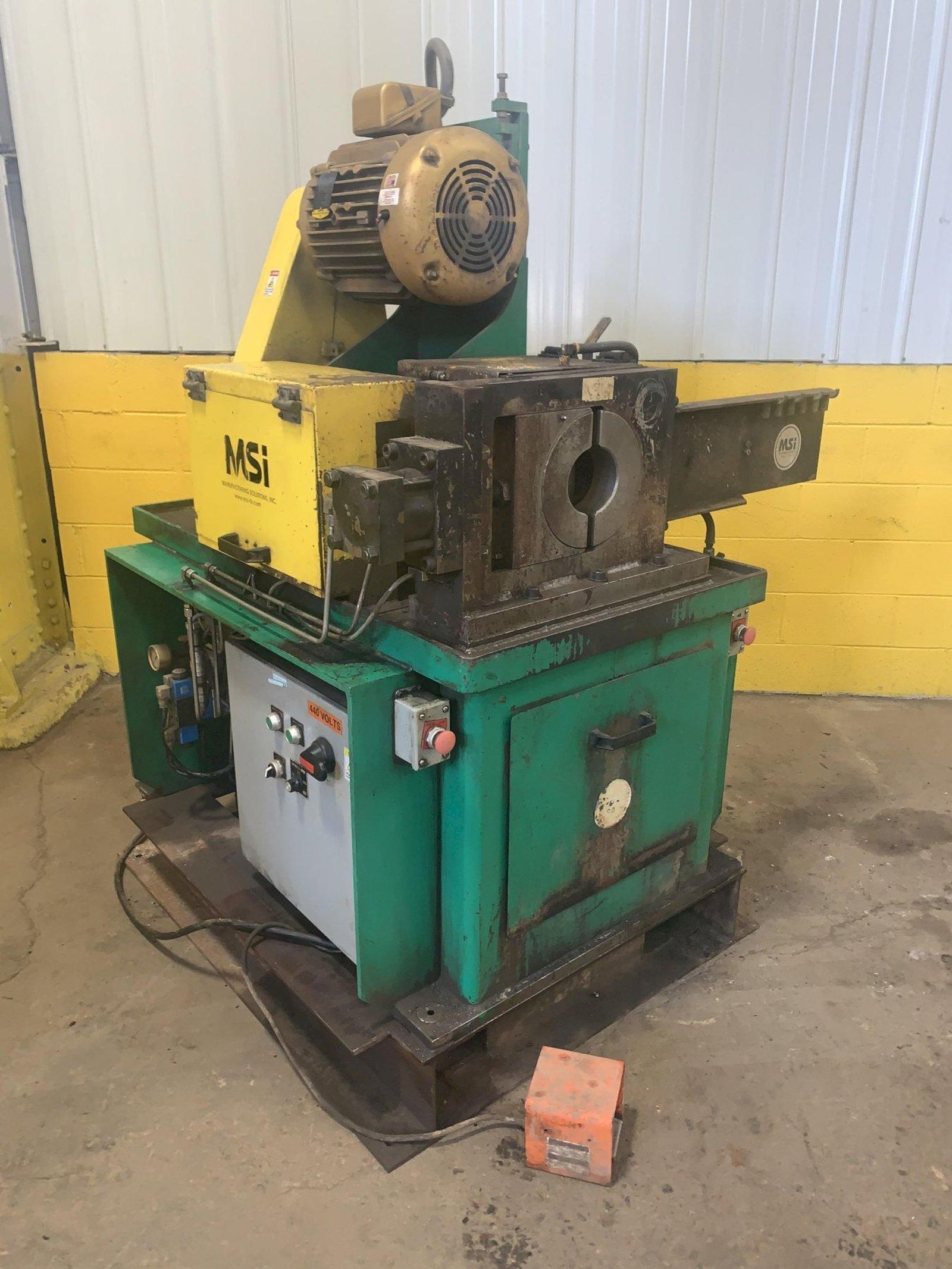

8" MSI MODEL C8H PIPE CHAMFERING MACHINE: STOCK #13124

Stock #: 13124

Equipped With

SERIAL ...................... 13086
MODEL ....................... C8H
PIPE DIAMETER CAPACITY ...... 1" TO 8"
WALL THICKNESS CAPACITY ..... 4" SCH 160
                              6" SCH 120
                              8" SCH 80
SPINDLE HEAD ................ 3 TOOL (ID,OD & FACE)
SPINDLE STROKE .............. 6"
SPINDLE FEED ................ HYDRUALIC
FEED RATE ................... ADJUSTABLE
SPINDLE SPEEDS .............. 150-600 RPM
PIPE STOP ................... SLIDING ADJ STOP
STANDARD CENTER HEIGHT ...... 39"
COOLANT ..................... YES
HYDRAULIC CLAMPING  ......... YES
MOTOR ....................... 20 HP

Buy Machines

8" MSI MODEL C8H PIPE CHAMFERING MACHINE: STOCK #13124

Stock # 13124

Share Machine
Print Details

Machine Specifications

SERIAL ...................... 13086
MODEL ....................... C8H
PIPE DIAMETER CAPACITY ...... 1" TO 8"
WALL THICKNESS CAPACITY ..... 4" SCH 160
                              6" SCH 120
                              8" SCH 80
SPINDLE HEAD ................ 3 TOOL (ID,OD & FACE)
SPINDLE STROKE .............. 6"
SPINDLE FEED ................ HYDRUALIC
FEED RATE ................... ADJUSTABLE
SPINDLE SPEEDS .............. 150-600 RPM
PIPE STOP ................... SLIDING ADJ STOP
STANDARD CENTER HEIGHT ...... 39"
COOLANT ..................... YES
HYDRAULIC CLAMPING  ......... YES
MOTOR ....................... 20 HP

Videos
Specifications
Dimensions 37" X 51" X 68" HIGH
Weight 3500 pounds
