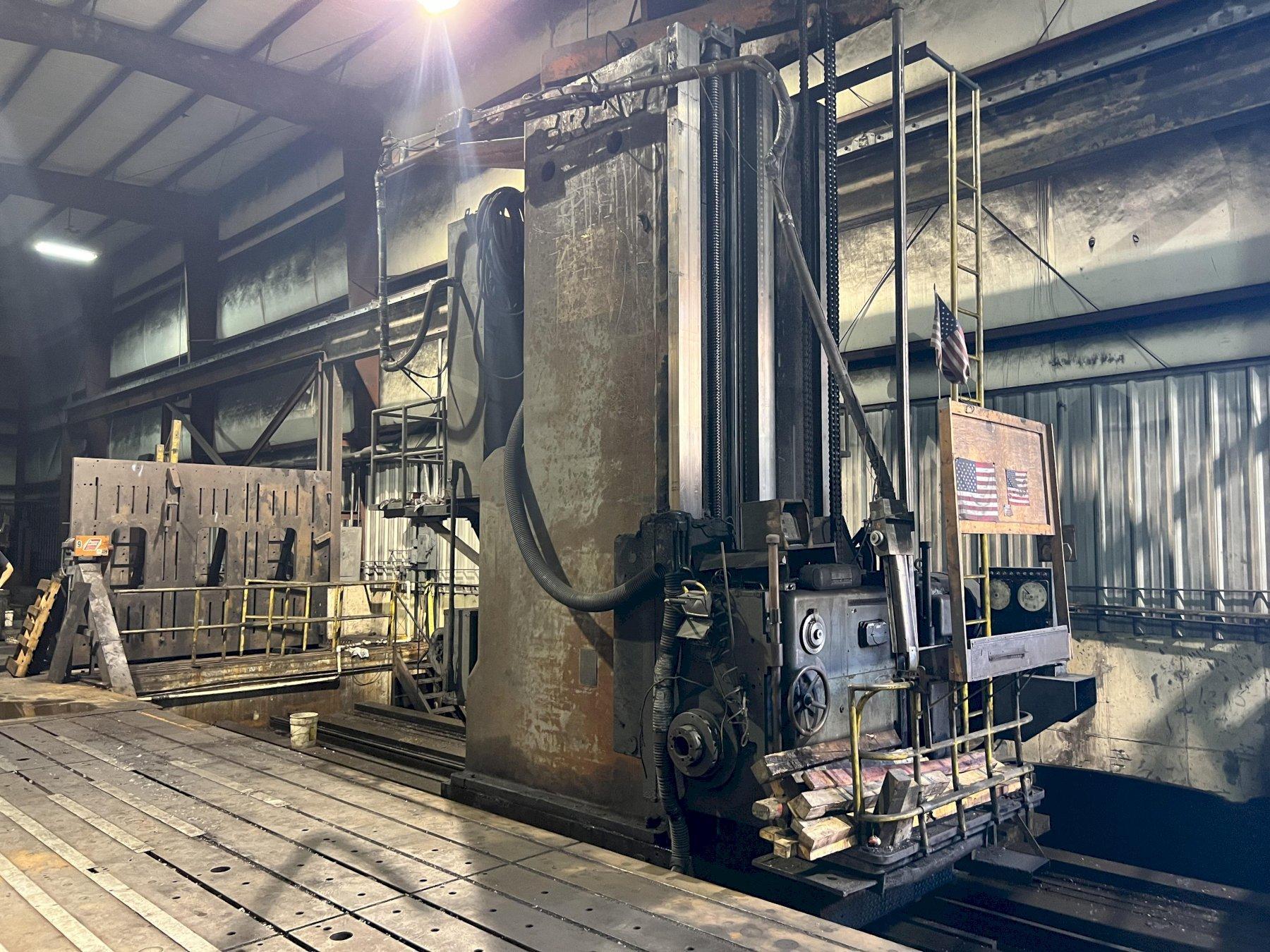

8" GRAY MODEL #780FC FLOOR TYPE HORIZONTAL BORING MILL: STOCK #17095

Stock #: 17095

Equipped With

SERIAL ............................ 9377
MODEL ............................. 780FC
DIAMETER OF SPINDLE ............... 8"
SPINDLE SPEEDS, VARIABLE .......... 3 TO 600 RPM
HEAD AND COLUMN FEEDS ............. 0 TO 120 IPM
SPINDLE FEEDS ..................... 0 TO 12 IPM
SADDLE FEEDS ...................... 0 TO 40 IPM
SPINDLE TAPER ..................... #60 NS
SPINDLE MOTOR ..................... 60 HP
SPINDLE TRAVEL .................... 48"
VERTICAL TRAVEL OF HEAD ........... 12' (144")
COLUMN HORIZONTAL TRAVEL ON BASE .. 28' (336")
CROSS TRAVEL OF COLUMN ON BASE .... 48"
WIDTH OF BED PLATE ................ 84"
POWER DRAW BAR .................... YES
COOLANT ........................... YES

*** FLOOR PLATES AVAILABLE ***
