Machine Information

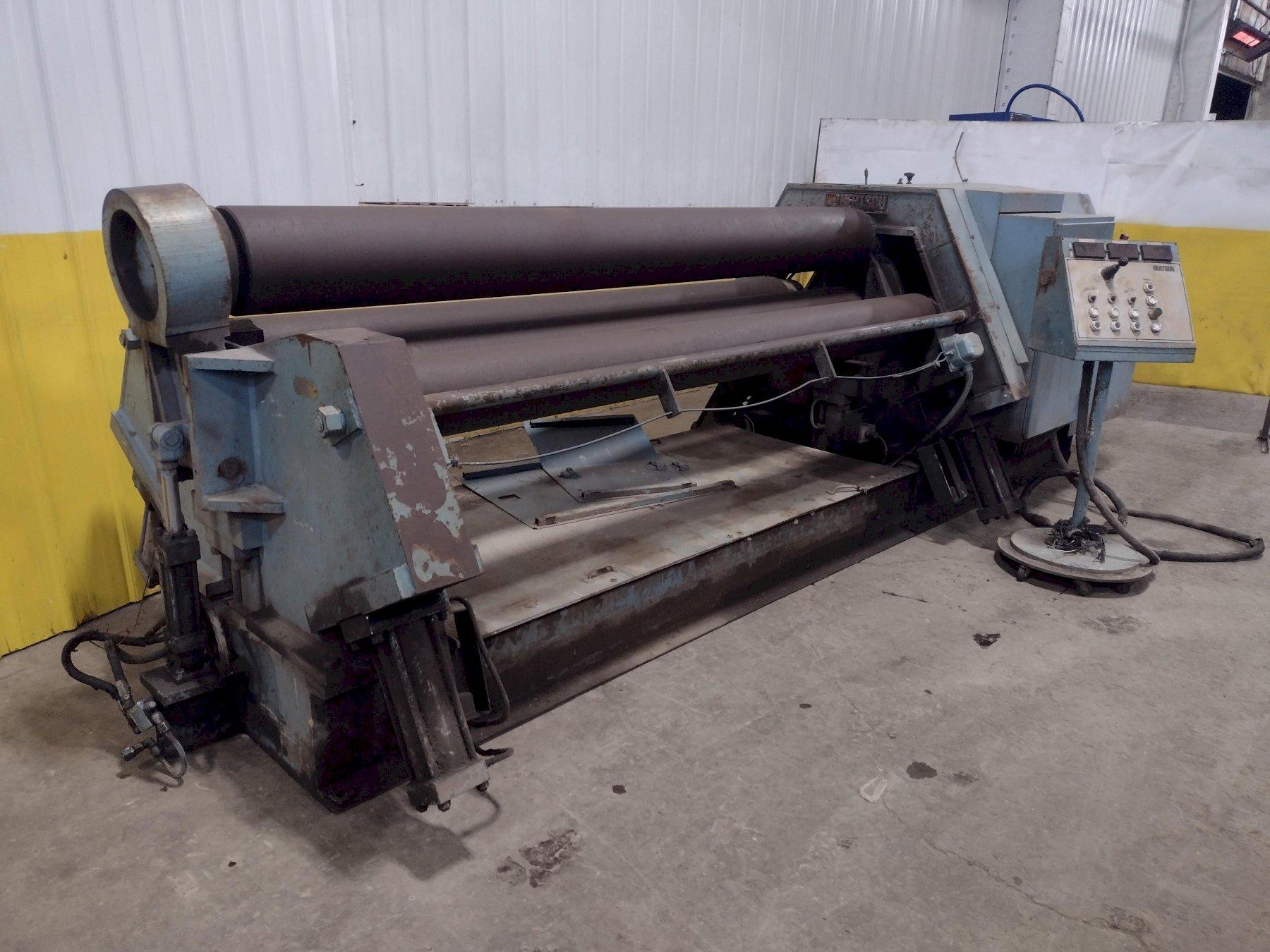

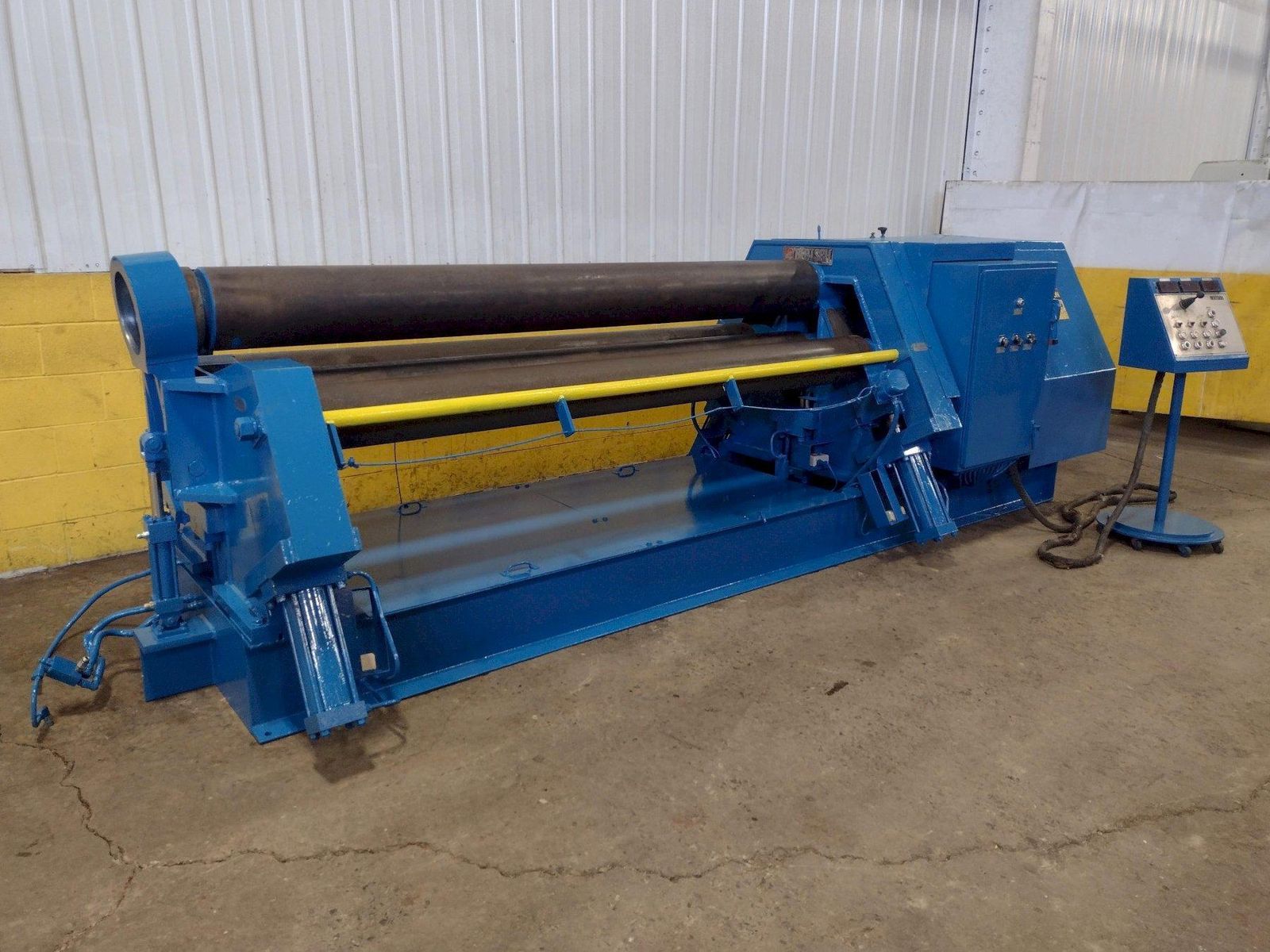

8' X 1/2" BERTSCH MODEL #50-08 4 ROLL HYDRAULIC PLATE BENDING ROLL: STOCK #18132

Stock #: 18132

Equipped With

SERIAL ....................... M-10749
NEW .......................... 1989
MODEL ........................ #50-08 HYDRAULIC
ROLLS ........................ *4*
BENDING LENGTH CAPACITY ...... 8'
CAPACITY ..................... 1/2"
TOP & BOTTOM ROLL DIAMETER ... 12"
FRONT & BACK ROLL DIAMETER ... 8"
LENGTH OF ROLLS .............. 100"
CONTROL PANEL ................ YES
DROP END ..................... HYDRAULIC
HYDRAULIC MOTOR .............. 10 HP

Model 50-08
Nominal Thickness 0.500
Width 96
Top Roll Diameter 12.0

Pre-Bend Capacity .500 / 96  (Thick./Length)

5X TOP ROLL DIAMETER
Diameter  60.0
Max Thick at 100% Width 0.579
Max Thick at 70% Width 0.692
Max Thick at 30% Width 1.056

MINIMUM DIAMETERS @ MAXIMUM WIDTH
Thickness 0.375
Diameter Single Pass 13.9
Thickness 0.500
Diameter Multi-Pass 20.5


Buy Machines

8' X 1/2" BERTSCH MODEL #50-08 4 ROLL HYDRAULIC PLATE BENDING ROLL: STOCK #18132

Stock # 18132

Share Machine
Print Details

Machine Specifications

SERIAL ....................... M-10749
NEW .......................... 1989
MODEL ........................ #50-08 HYDRAULIC
ROLLS ........................ *4*
BENDING LENGTH CAPACITY ...... 8'
CAPACITY ..................... 1/2"
TOP & BOTTOM ROLL DIAMETER ... 12"
FRONT & BACK ROLL DIAMETER ... 8"
LENGTH OF ROLLS .............. 100"
CONTROL PANEL ................ YES
DROP END ..................... HYDRAULIC
HYDRAULIC MOTOR .............. 10 HP

Model 50-08
Nominal Thickness 0.500
Width 96
Top Roll Diameter 12.0

Pre-Bend Capacity .500 / 96  (Thick./Length)

5X TOP ROLL DIAMETER
Diameter  60.0
Max Thick at 100% Width 0.579
Max Thick at 70% Width 0.692
Max Thick at 30% Width 1.056

MINIMUM DIAMETERS @ MAXIMUM WIDTH
Thickness 0.375
Diameter Single Pass 13.9
Thickness 0.500
Diameter Multi-Pass 20.5


Specifications
Dimensions 185"L x 63"W x 77"H
Weight 15000 pounds
