Machine Information

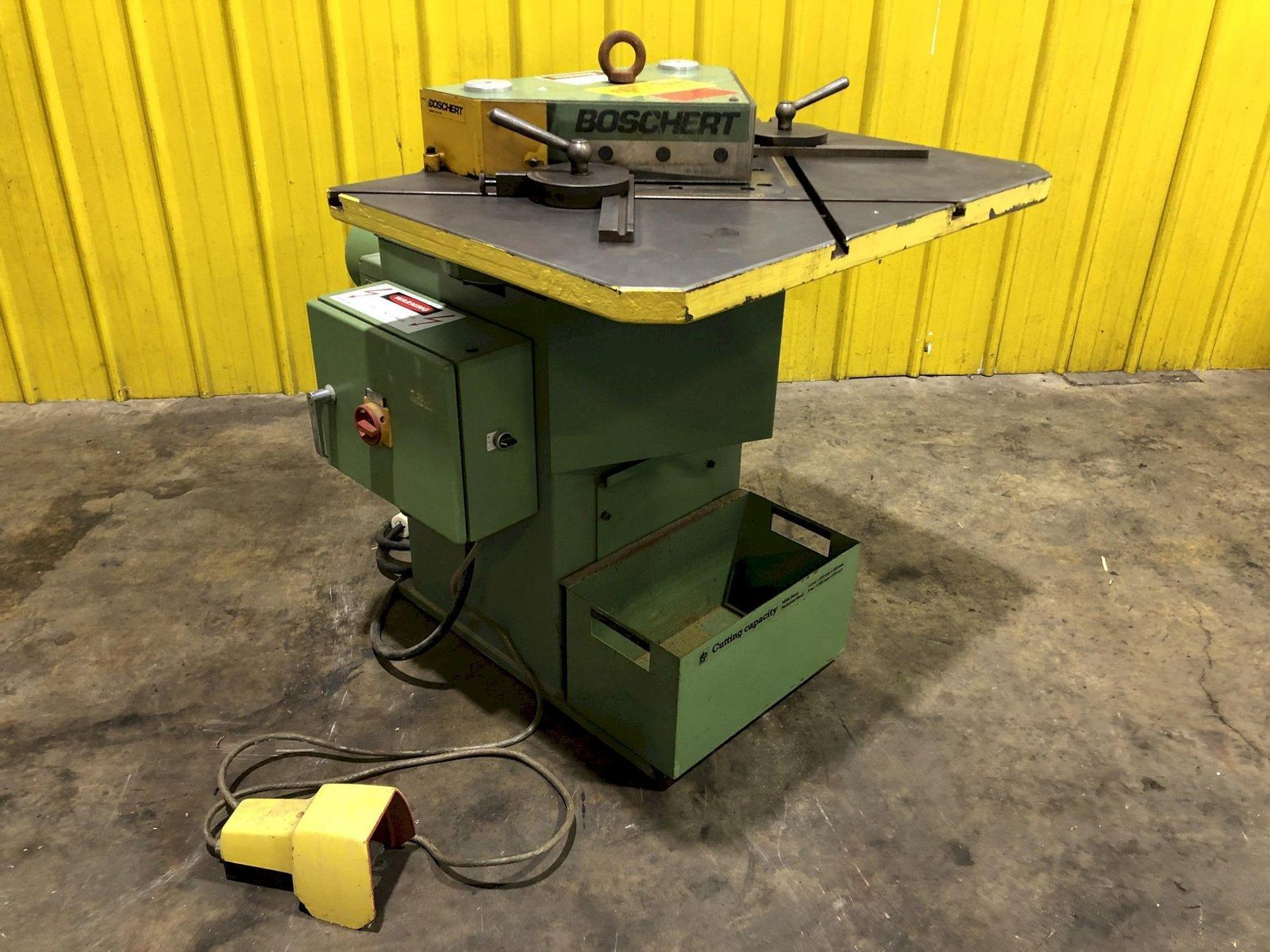

8.875" X 8.875" X 1/4" BOSCHERT MODEL #LB12 HYDRAULIC SHEET METAL CORNER NOTCHER: STOCK 16493

Stock #: 16493

Equipped With

SERIAL ............... 1606
MODEL ................ LB12 PN4
NEW .................. 04/1990
CAPACITY ............. 1/4" STEEL
CAPACITY ............. 3/16" STAINLESS
MAX NOTCH ............ 8-7/8" X 8-7/8"
CUT ANGLE ............ 90 DEGREES
TABLE SIZE ........... 35" WIDE X 25"
MOTOR ................ 6.5 HP

Buy Machines

8.875" X 8.875" X 1/4" BOSCHERT MODEL #LB12 HYDRAULIC SHEET METAL CORNER NOTCHER: STOCK 16493

Stock # 16493

Share Machine
Print Details

Machine Specifications

SERIAL ............... 1606
MODEL ................ LB12 PN4
NEW .................. 04/1990
CAPACITY ............. 1/4" STEEL
CAPACITY ............. 3/16" STAINLESS
MAX NOTCH ............ 8-7/8" X 8-7/8"
CUT ANGLE ............ 90 DEGREES
TABLE SIZE ........... 35" WIDE X 25"
MOTOR ................ 6.5 HP

Specifications
Weight 1540 pounds
Max Thickness of Workpiece .156 inches
Max Thickness of Workpiece (gauge) 10
Stock Dimension 8.875 inches
Stock Dimension 8.875 inches
Dimensions 49 X 36 X 53
